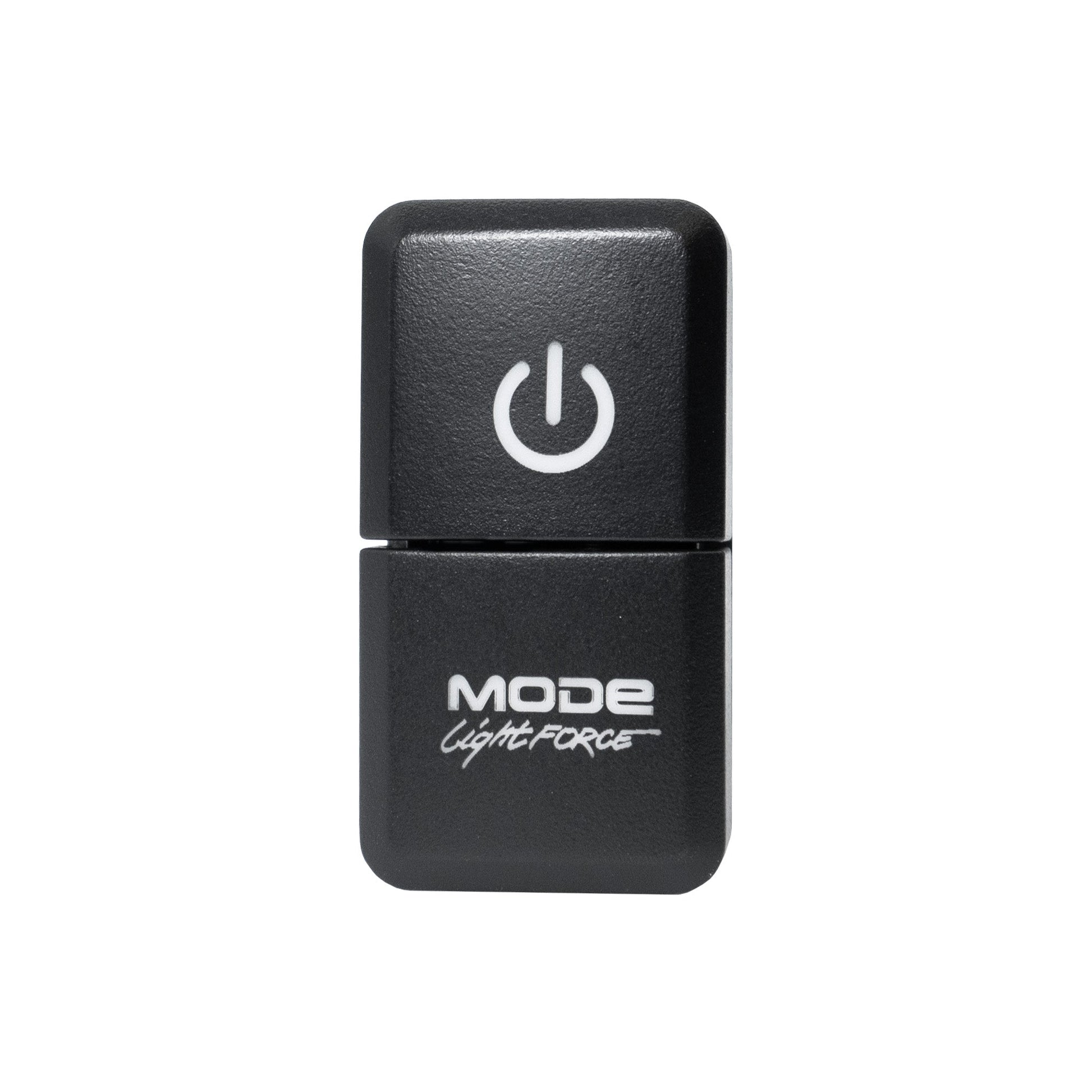

BEAST Switch / TYD Fitment - Suitable for Toyota 70 Series, 100 Series, Hilux & more

Ideally suited for some Toyota 70 & 100 Series, Hilux models & more switch locations.

These include:

• Toyota Hilux 2005 - 2014
• Toyota Fortuner 2005 - 2013
• Toyota Landcruiser 70 series (Plastic dash - right hand side of steering wheel)
• Toyota Landcruiser 100 series 1998 - 2007
• Toyota Prado 120 2003 - 2009
• Toyota FJ Cruiser 2007 - 2016.

Wiring Instructions

10-16V input, 3A output (use with relays).

Switch Cut Out Size

20mm x 37mm

Specifications

Ideally suited for some Toyota 70, 100 Series, Hilux vehicles & more factory switch locations.

Instructions:

Mode Select - Short press A quick press of the mode button will switch the BEAST lights between SPOT and FLOOD mode.

Mode Select - Long press A long press will activate BEAST mode. Note: while in BEAST mode, a short press will return you back to SPOT mode.
Resync Process – Long press For BEAST driving light installations where more than one light is installed, it is possible for lights to be out of sync / ie. different modes. To resync driving lights, long press the mode select button
