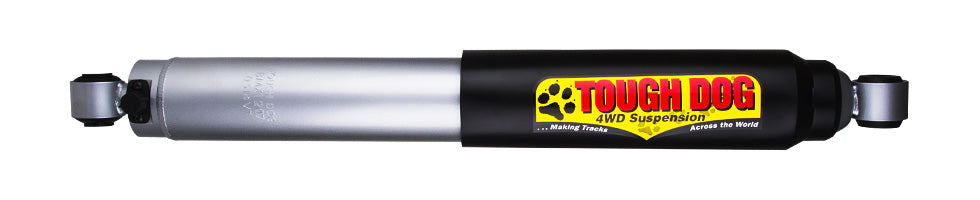

Tough Dog Adjustable Shock Front 45mm Bore 40mm Lift Suitable for RAM 2500 Series 2020 on (Each)

Tough Dog's award winning Foam Cell shock is our best selling shock for all round performance. Whether you head bush on the occasional weekend or for the majority of the year, Foam Cell shocks will handle your application.

The 'Foam Cell' that makes all the difference is a micro-cellular foam insert that helps to drastically reduce the effects of shock fade, allowing your shocks to perform better for longer, even on the harshest of corrugations. Cavitation and Aeration are the undoing of any shock absorber. As the shock is worked harder, the oil and gas in the outer chamber begins to mix and form bubbles, lowering the viscosity of the oil. When this aerated oil passes through the valve, there is reduced resistance, stopping the shock form performing correctly. The Foam Cell insert, with its trapped gas micro cells takes up the empty space in the shock normally taken up by air or nitrogen gas. This eliminates the possibility of bubbles forming, allowing the shock to get on with the job with an unparalleled resistance to shock fade.

Tough Dog advises: Front lower shock mount is only partially welded from factory. It is recommended that a full weld around the entire mount is completed to prevent breakage.

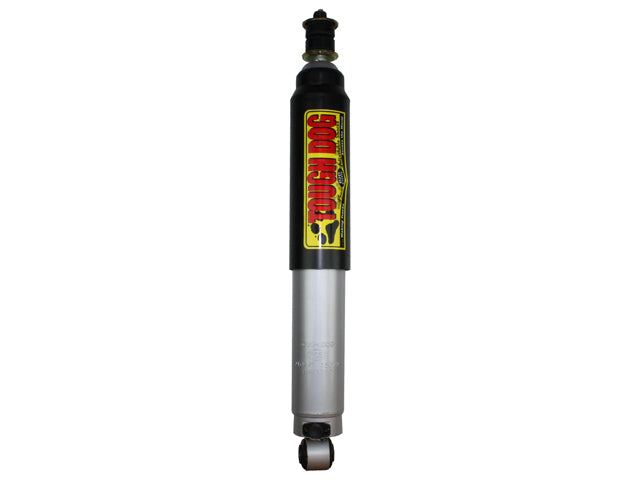

ADJUSTABLE SHOCK (45mm BORE)

BIG BORE Adjustable shock absorbers feature a 45mm bore, 70mm external casing, and a 22mm piston rod.

Designed to fit heavy duty vehicles that have a 2” to a 6 inch lift kit fitted.

With internal DU bushings fitted, these shocks are perfect for all BIG LIFT OFFROAD work.

Please Note: All items that are used in these kits are manufactured from the highest quality materials. However this kit must be inspected, certified and passed as road-worthy by a qualified motor transport engineer before the vehicle can be driven on a public road.

Features

• 45mm internal bore
• 70mm External casing
• 22mm Chrome plated rod
• High temperature fluid
• Foam cell
• 9 Stage External adjustment
• Additional welding on all studs and eye rings
• 2 year / 40,000km warranty on vehicles with a 2” suspension lift
• 1 year / 20,000km warranty on vehicles fitted with any lift above 2”

Front lower shock mount is only partially welded from the factory. It is recommended that a full weld around the entire mount is completed to prevent breakage.
