Stedi

SKU:LEDST3K-30L

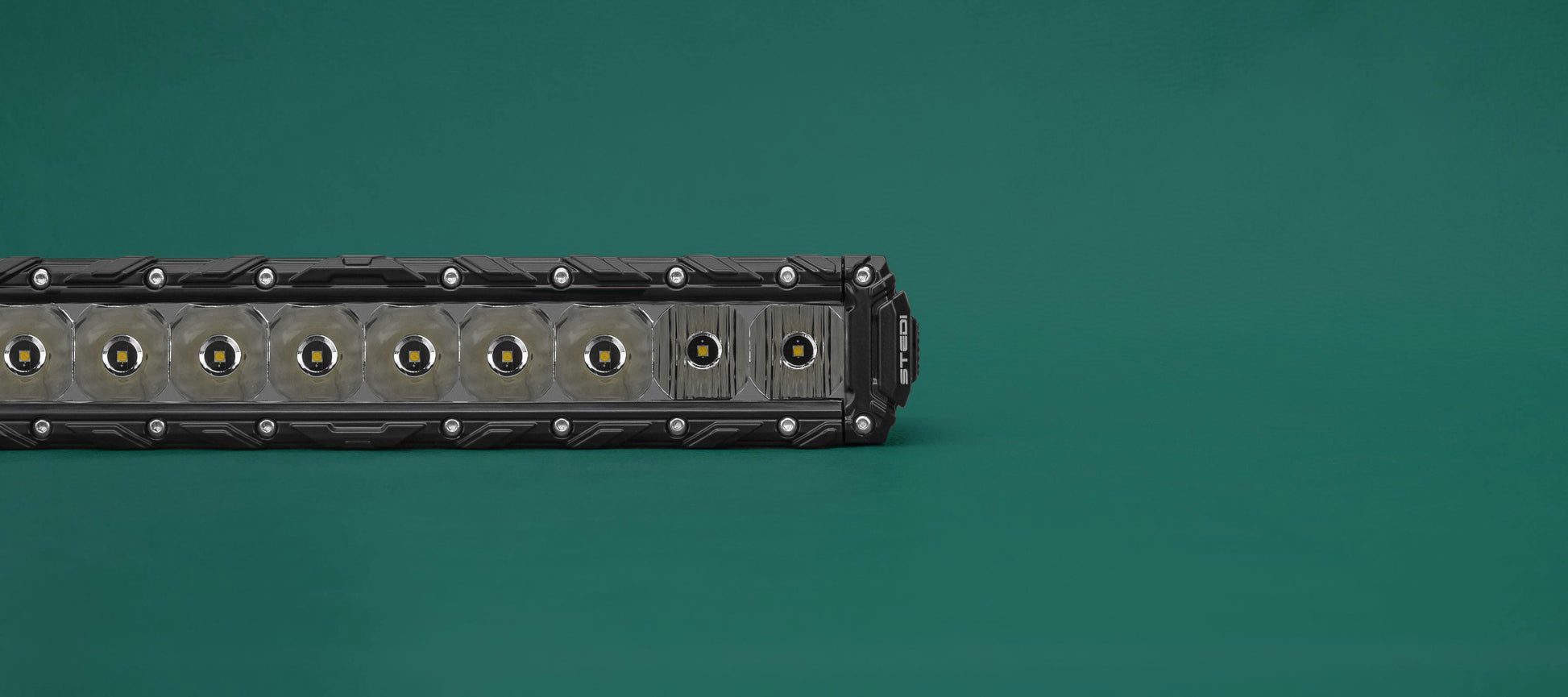

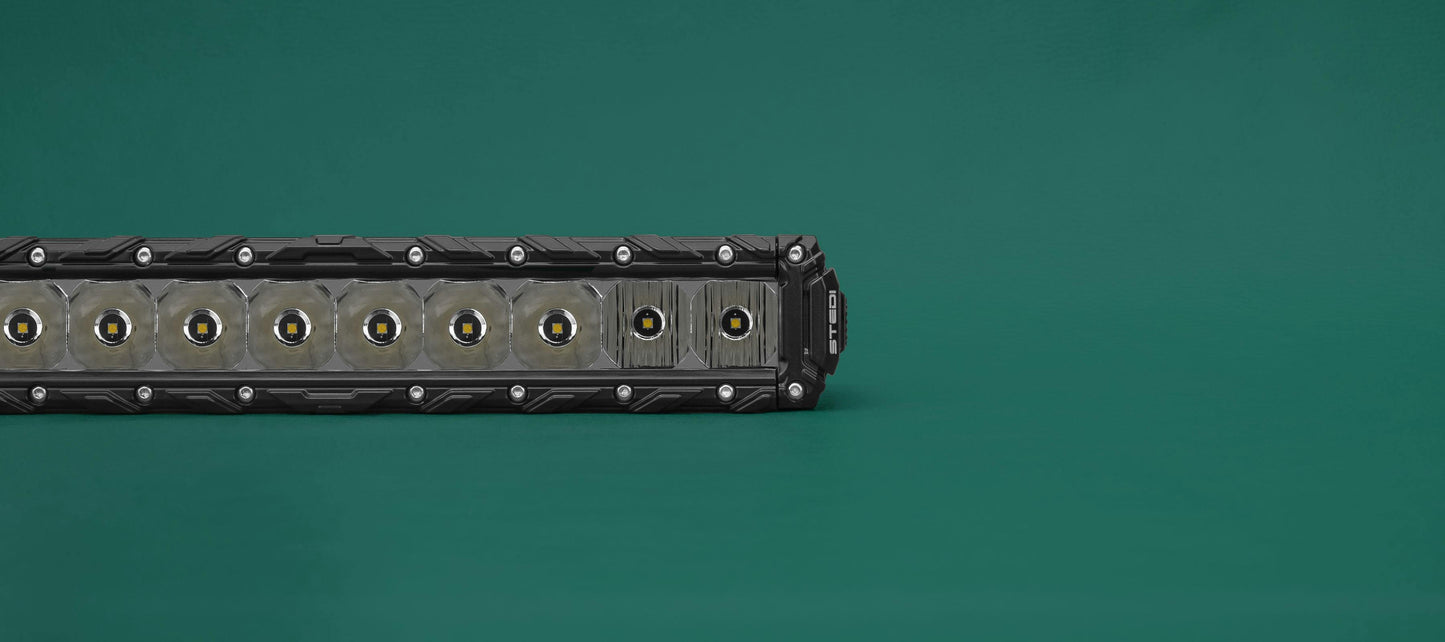

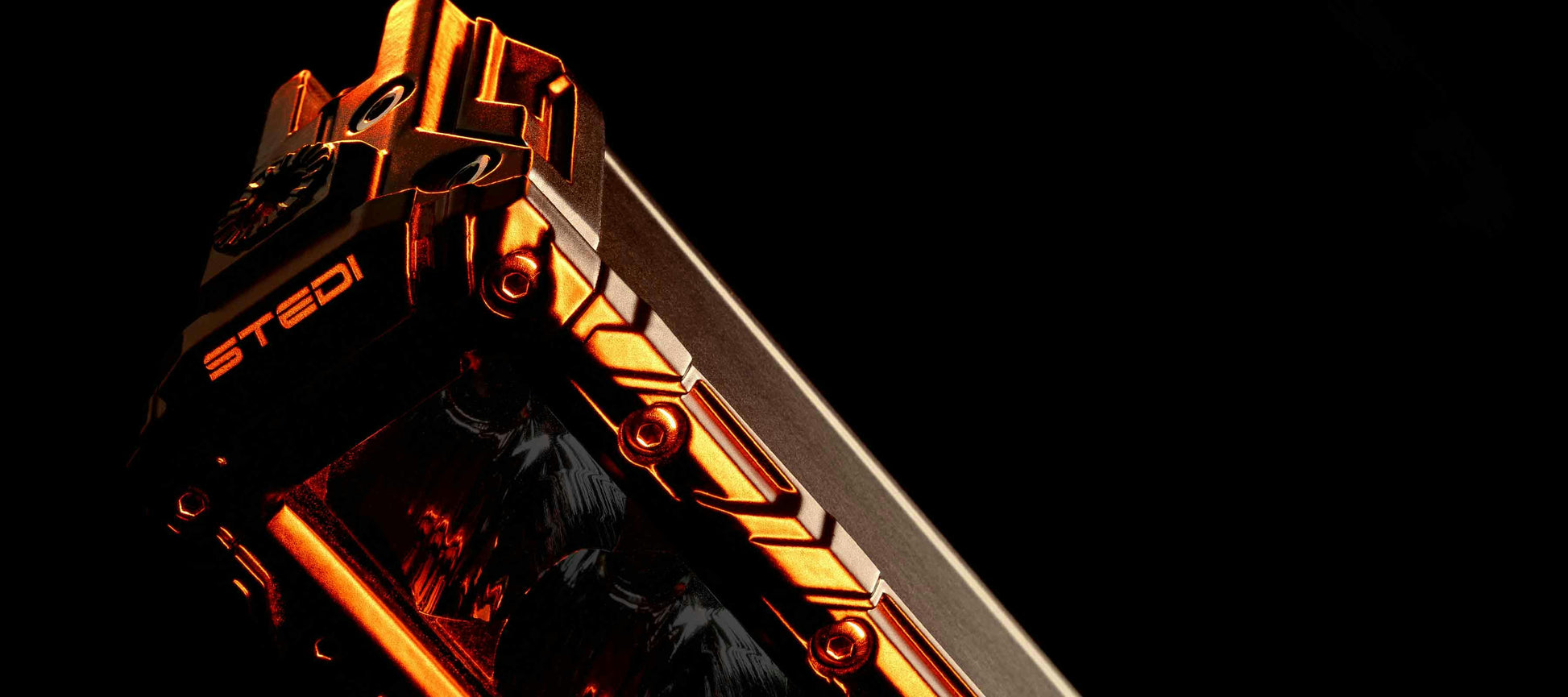

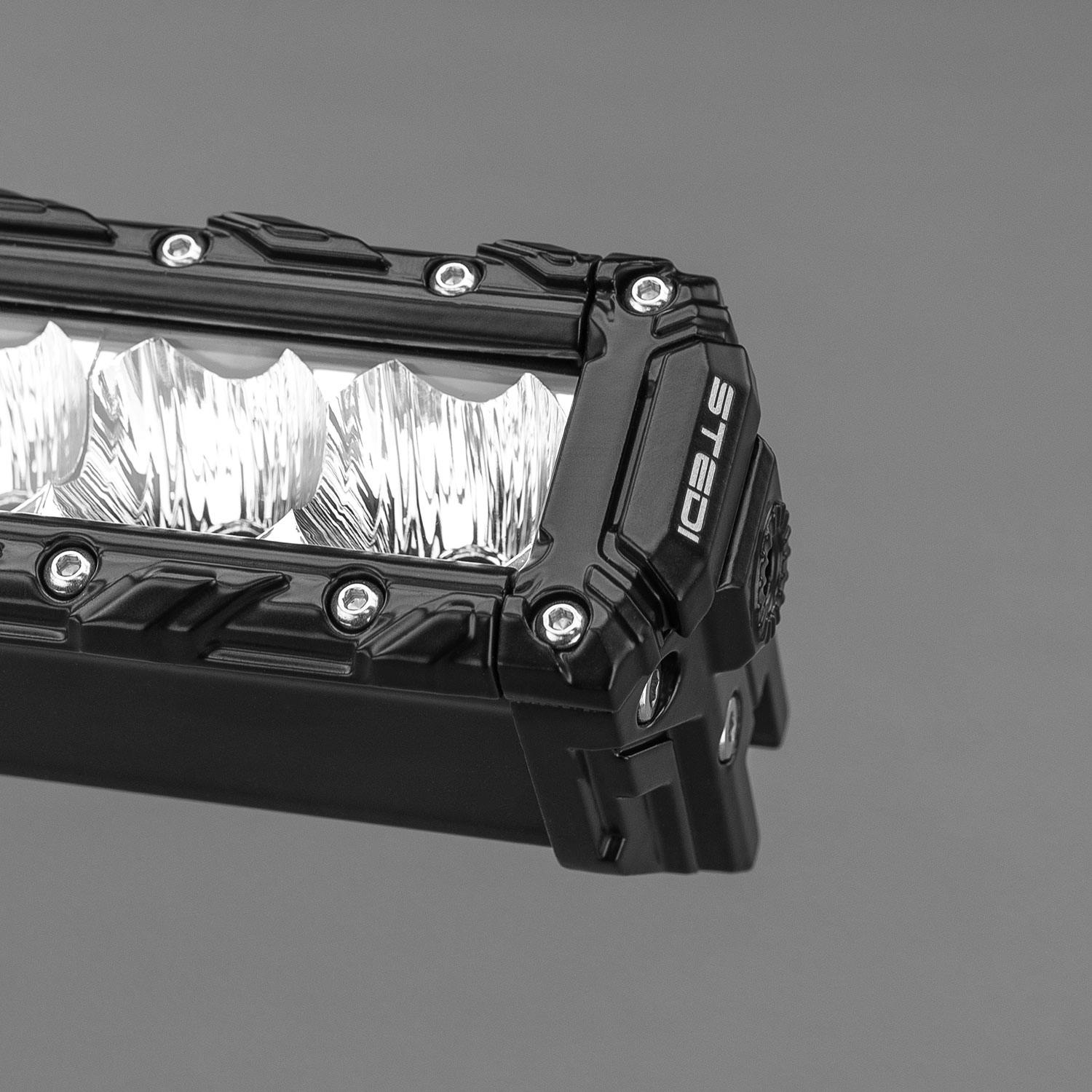

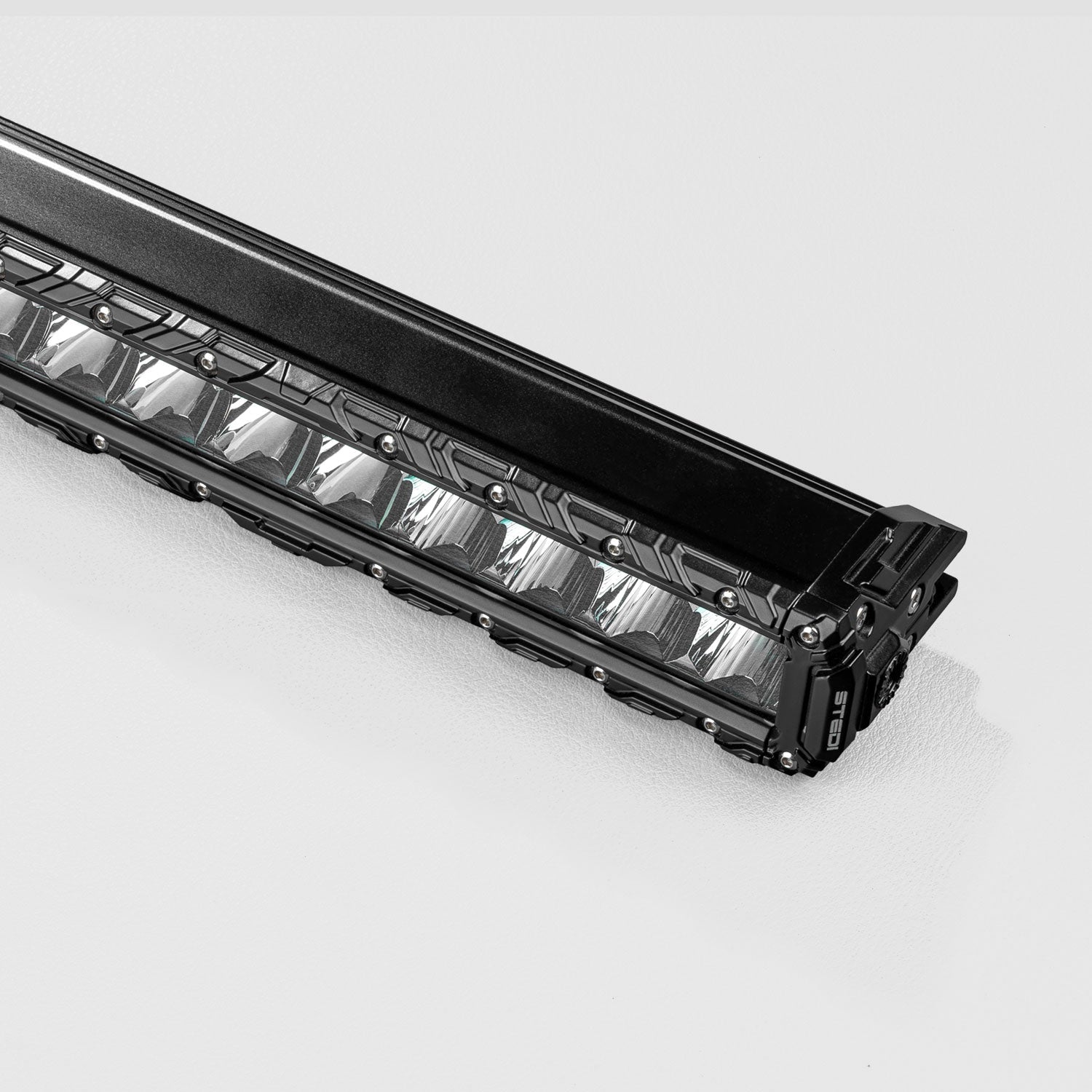

ST3K 31.5 inch 30 LED Slim LED Light Bar

ST3K 31.5 inch 30 LED Slim LED Light Bar

Regular price $269.00 AUD
Regular price Sale price $269.00 AUD
Sale Out of stock
Tax included. Shipping calculated at checkout.

Low stock: 4 left

Timeless Design.

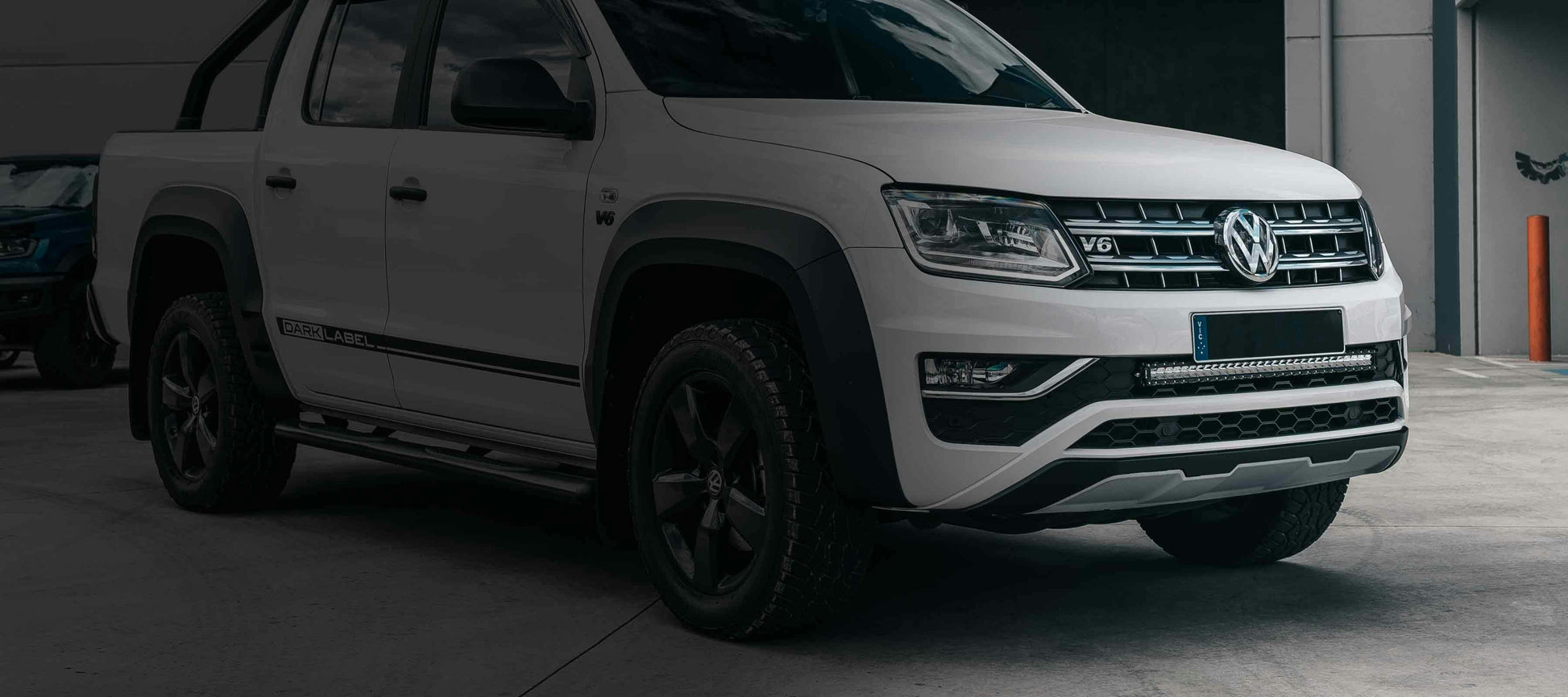

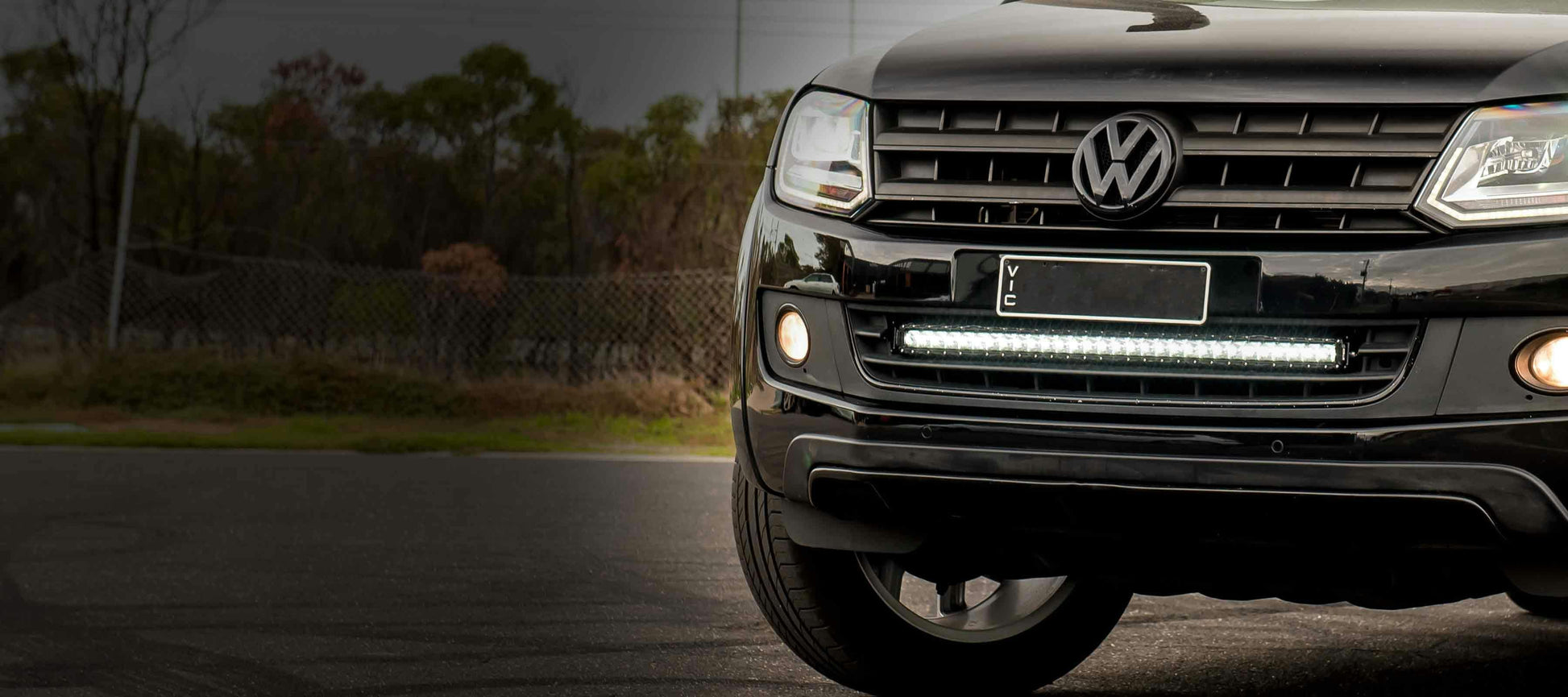

The ST3K 31.5 Inch LED Light Bar utilizes the Pure Drive technology (of Type-X and ST4K fame), to deliver a powerful punch. The ST3K 31.5 Inch LED Light Bar can also be mounted in tight spaces, allowing it to suit a wide and unexpected range of vehicles.

Brilliance Is The Name Of The Game.

The ST3K range is easily comparable to the STEDI Type-X and ST4K range. With a strong penetrating beam of 493m at 1 LUX and 55m out to the shoulders of the road (with flood beam), the ST3K 21.5 is the perfect all-rounder!

The nitty
gritty.

MARKET LEADING PERFORMANCE.

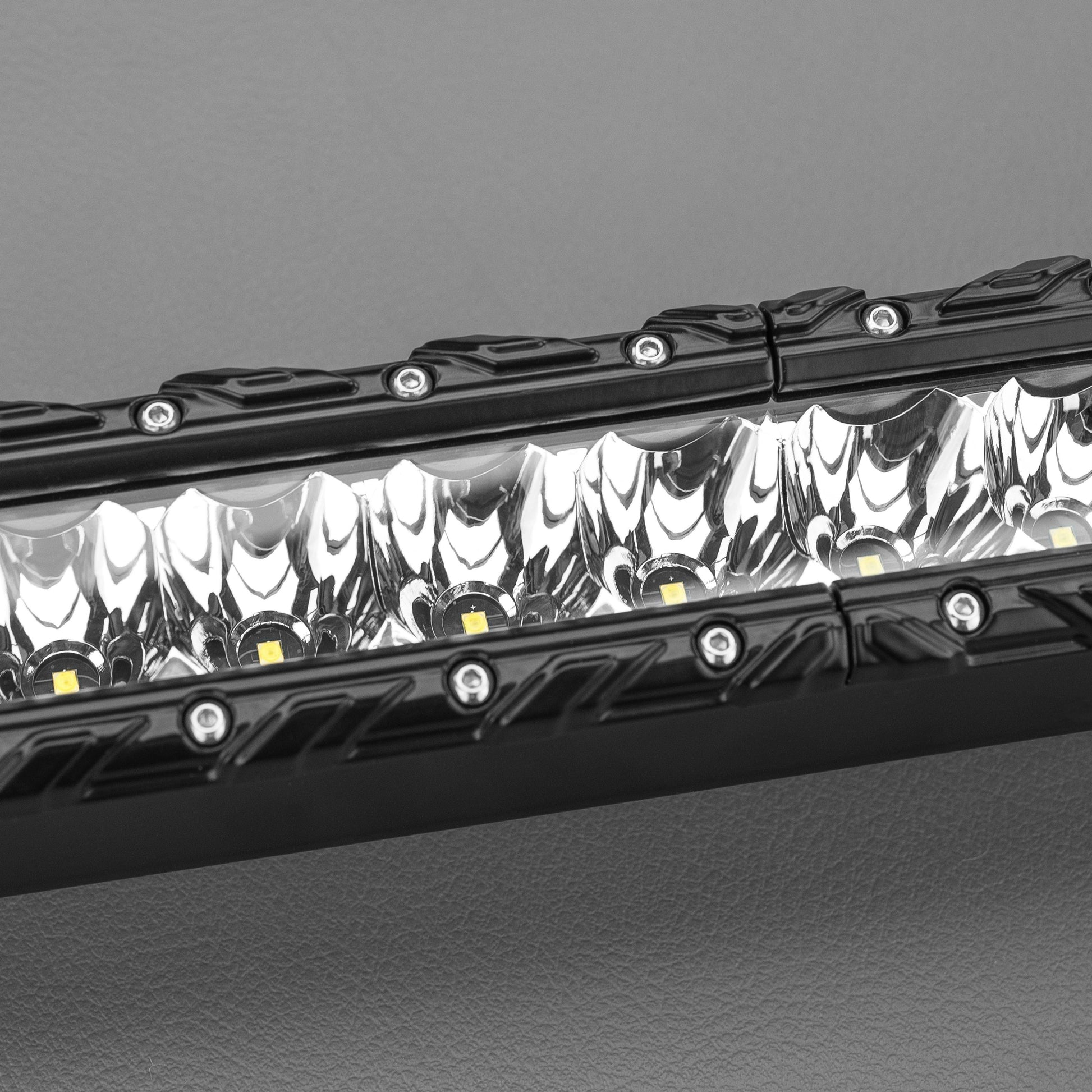

ST3K-30L features 30 of OSRAM’s® finest OSLON® LED, selected for unrivalled efficiency.

6 Flood + 18 Spot + 6 Flood reflector distribution forms a remarkable beam that pushes the wide beam out at 50° and spot beam at 5.8° all the way to staggering 1 lux @ 601m

True White 5700K Colour temperature offers stunning clarity and definition.

Our Pure-Drive™ circuit design allows 97% of input power to go directly to LEDs.

BUILT TO WITHSTAND THE RELENTLESS PUNISHMENT OF THE DEEP AUSTRALIAN OUTBACK.

Finished in 100% Polyester UV and abrasion resistant powder coat ensures that our bars will never discolour.

Pressure Equalization vent | Protects against water ingress, dust & contaminants.

IP68 | Dust & Particle tight + Water-proof up to 3 meters!

Environmentally sealed Deutsch DT-2 connector.

Protected against EMC and RFI.

Protected against EMC and RFI.

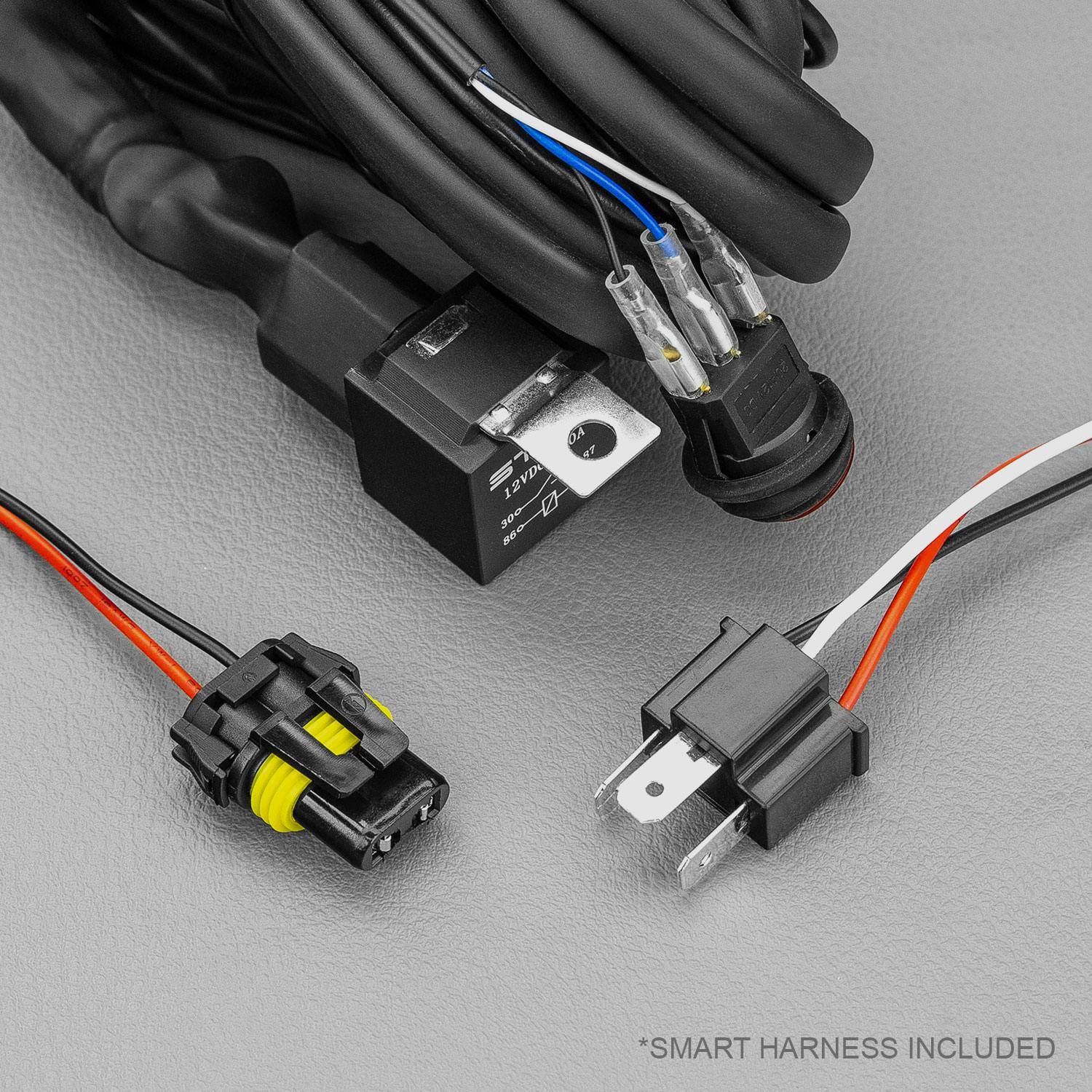

Includes our Easy-Fit High Beam Plug and Play Wiring Harness which includes H4 and HB3 Adapters making for an easy connection to high beam. Unlike the copycat harnesses on the market, ours has built-in electronics making our harness compatible with even the most modern and sophisticated wiring systems

Backed by a 5 Year Replacement Warranty.

Click here to find your vehicle-compatible Piggyback Adapter.

Please Note:

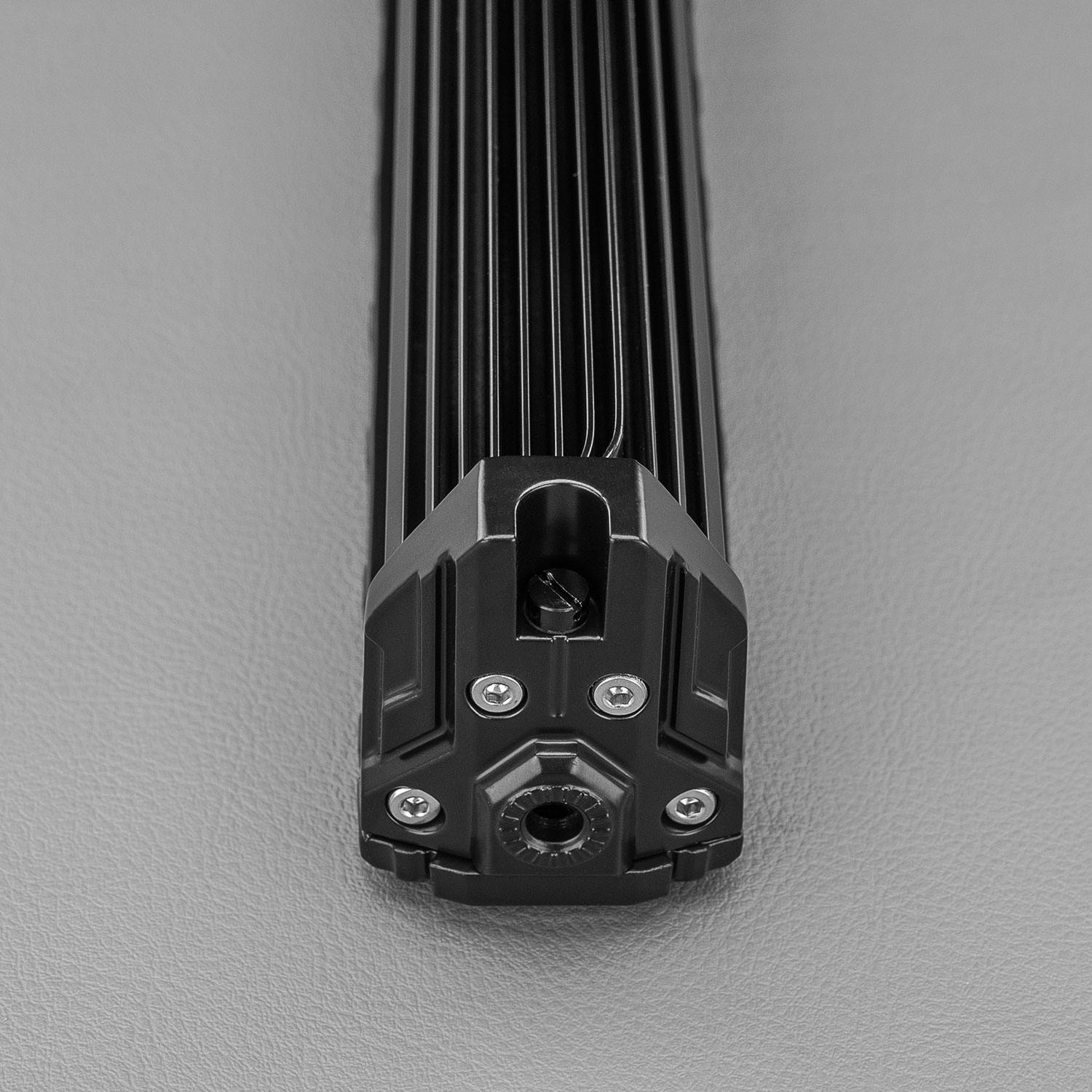

Upon unboxing the ST3K, you will hear a distinct rattle. The sound that you are hearing is from the captive nuts in the end caps for the side brackets. This is perfectly normal and will go away once the side brackets are installed and tightened.

Tech Specs

LED 30 x Osram Oslon White
Effective Lumen 6,150Lm
Peak Intensity (Candela) 364,800cd
Operating Voltage 10-30V DC
IP Rating IP68
Current Draw 6.5A @ 13.6v
Colour Temperature (CCT) 5700 Kelvin
Housing Material Aluminium Extrusion & Cast
Lens GE™ Lexan
Mounting Bracket Powder Coated 3mm Stainless Steel
Bolts and FIttings 3 Series Stainless Steel
Beam Type Flood Spot Combo
Life Span 50,000 Hours
Weight 2.640
Operating Environment -40 - +50° Celsius

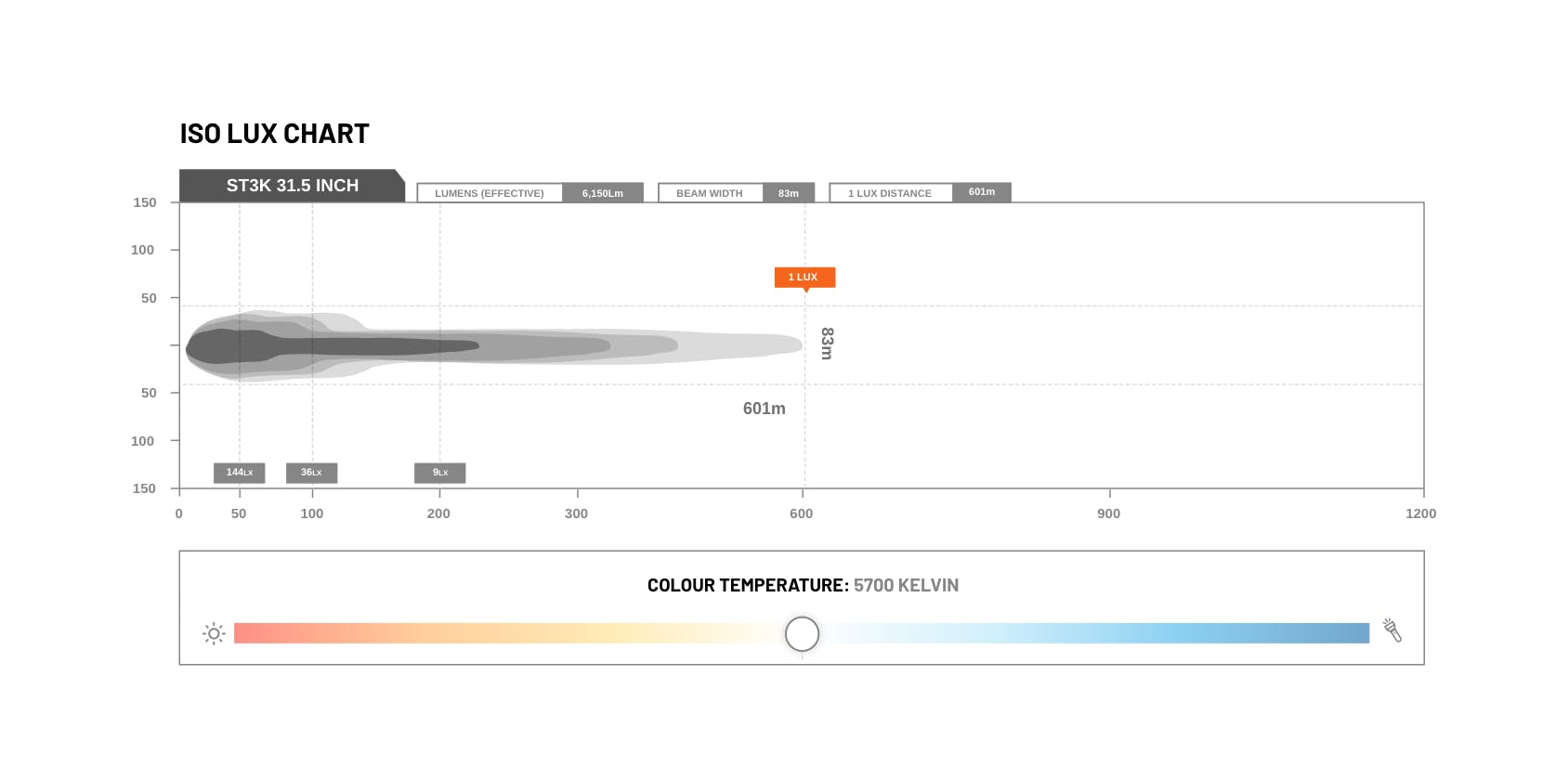

PHOTOMETRIC DATA
10 M 3,612 lX
50 M 144 Lx
100 M 36 Lx
200 M 9 Lx
601 M 1 Lx

What's Included

  • ST3K 31.5inch LED LIGHT BAR
  • Stainless Fasteners

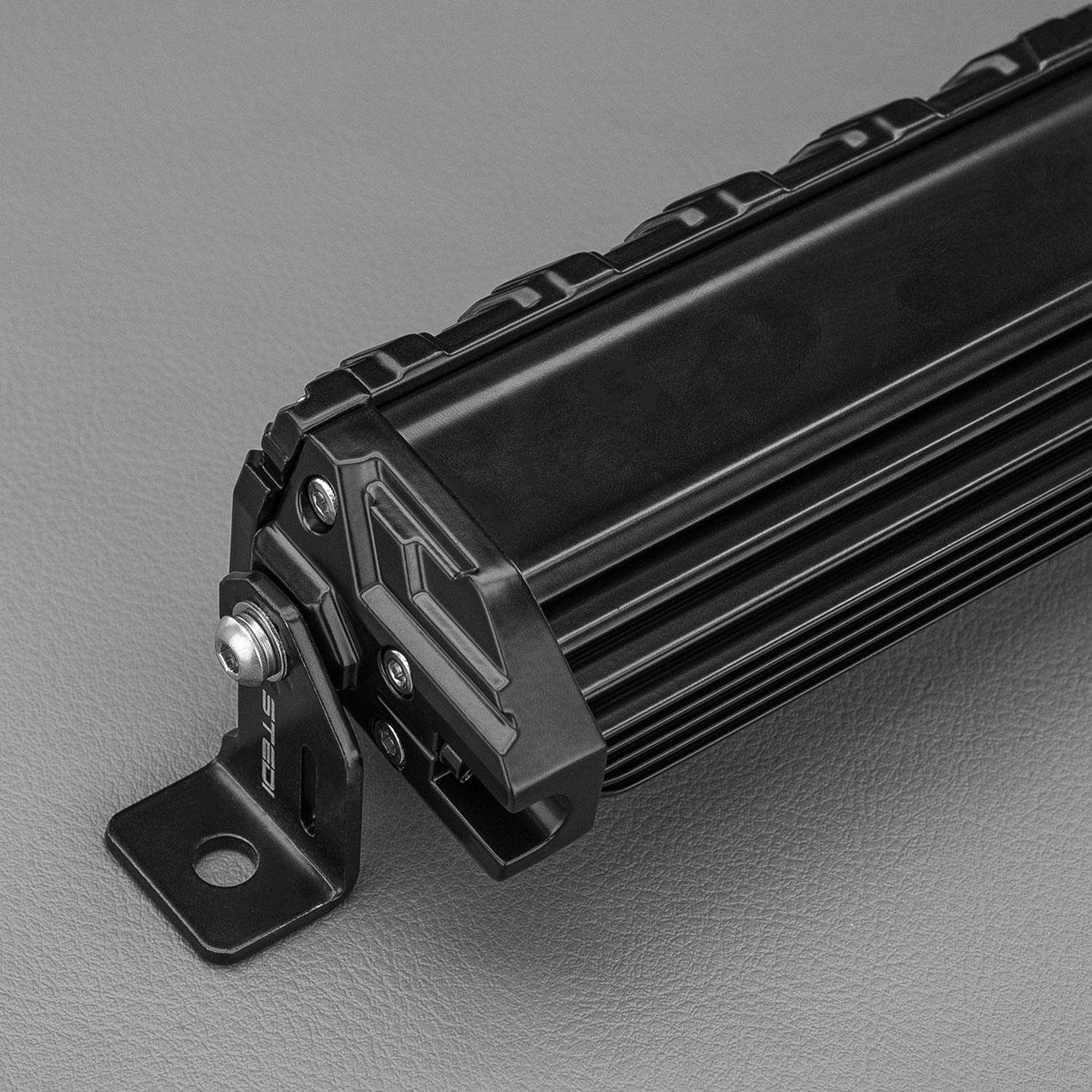

  • Stainless Steel Side Mounting Brackets
  • 12v Quick Fit to High Beam Wiring, Relay, Wiring Kit and On/Off Switch
  • H4 and HB3 adapters included
  • Wiring Instructions

Shipping & Returns

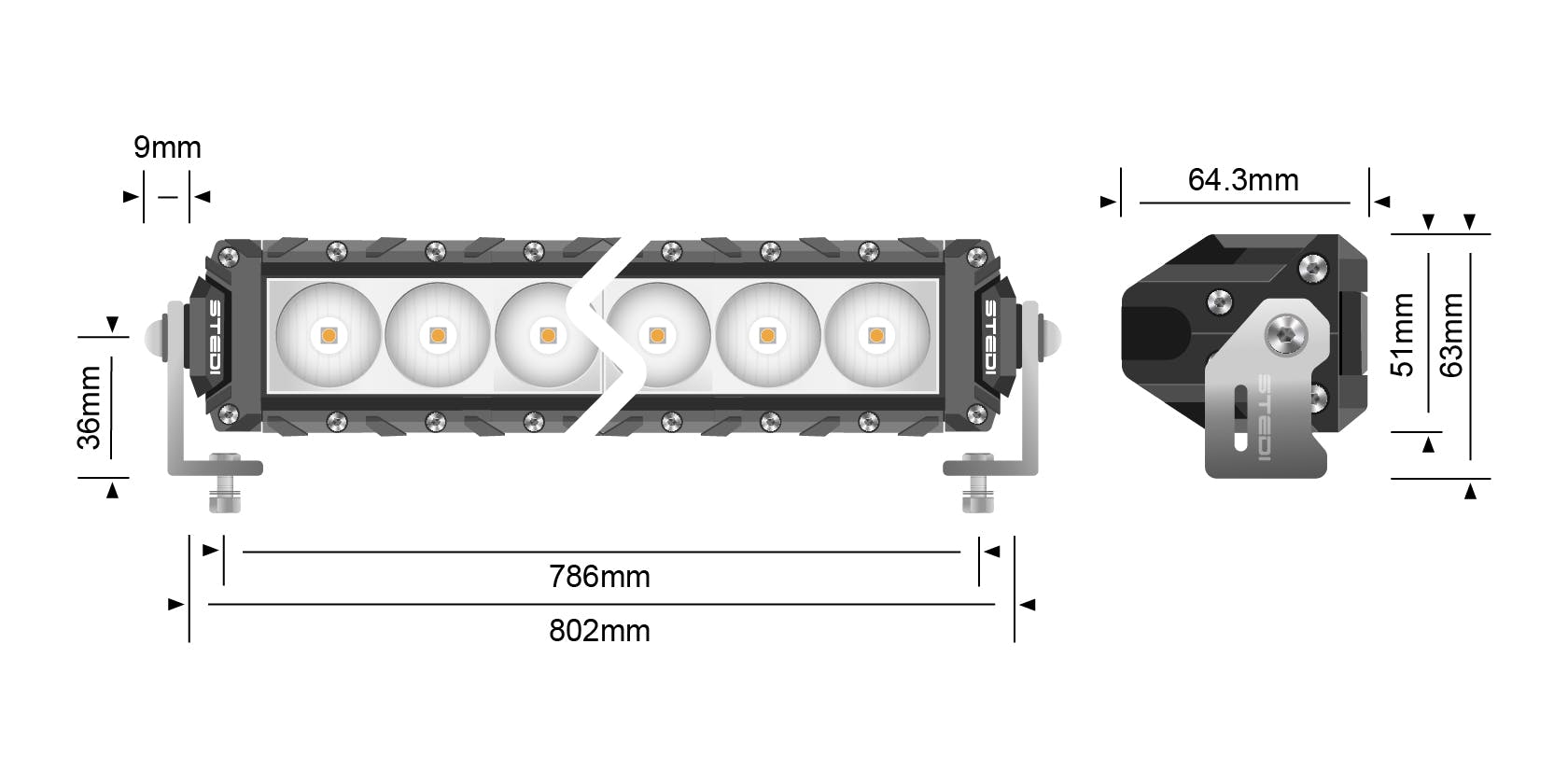

Dimensions

Length:

Width:

Height:
