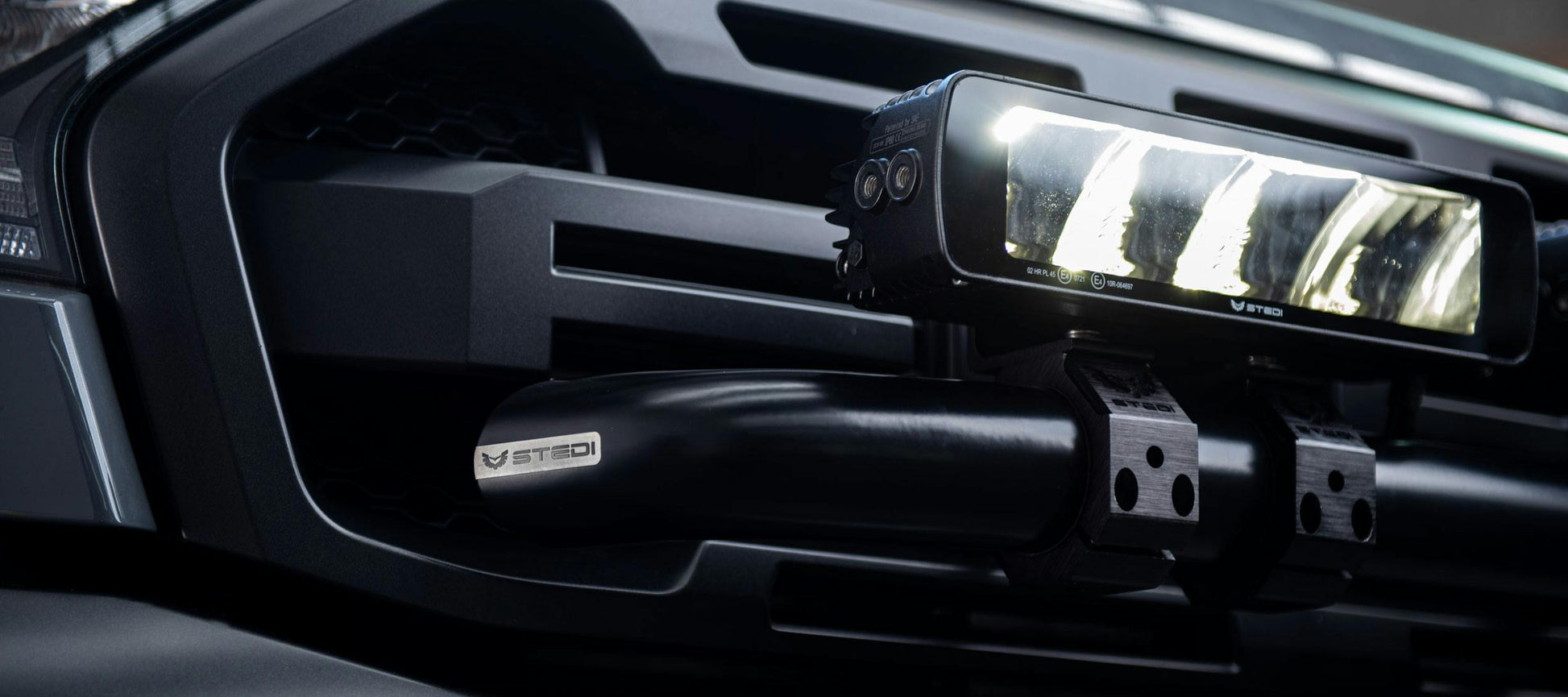

  • ST-X 12 inch LED Light Bar - View 2
  • ST-X 12 inch LED Light Bar - View 3
  • ST-X 12 inch LED Light Bar - View 4
  • ST-X 12 inch LED Light Bar - View 5
  • ST-X 12 inch LED Light Bar - View 6
  • ST-X 12 inch LED Light Bar - View 7
  • ST-X 12 inch LED Light Bar - View 8
  • ST-X 12 inch LED Light Bar - View 9
  • ST-X 12 inch LED Light Bar - View 10
  • ST-X 12 inch LED Light Bar - View 11
  • ST-X 12 inch LED Light Bar - View 12
  • ST-X 12 inch LED Light Bar - View 13
1 13

Stedi

LEDST-X-12-4L

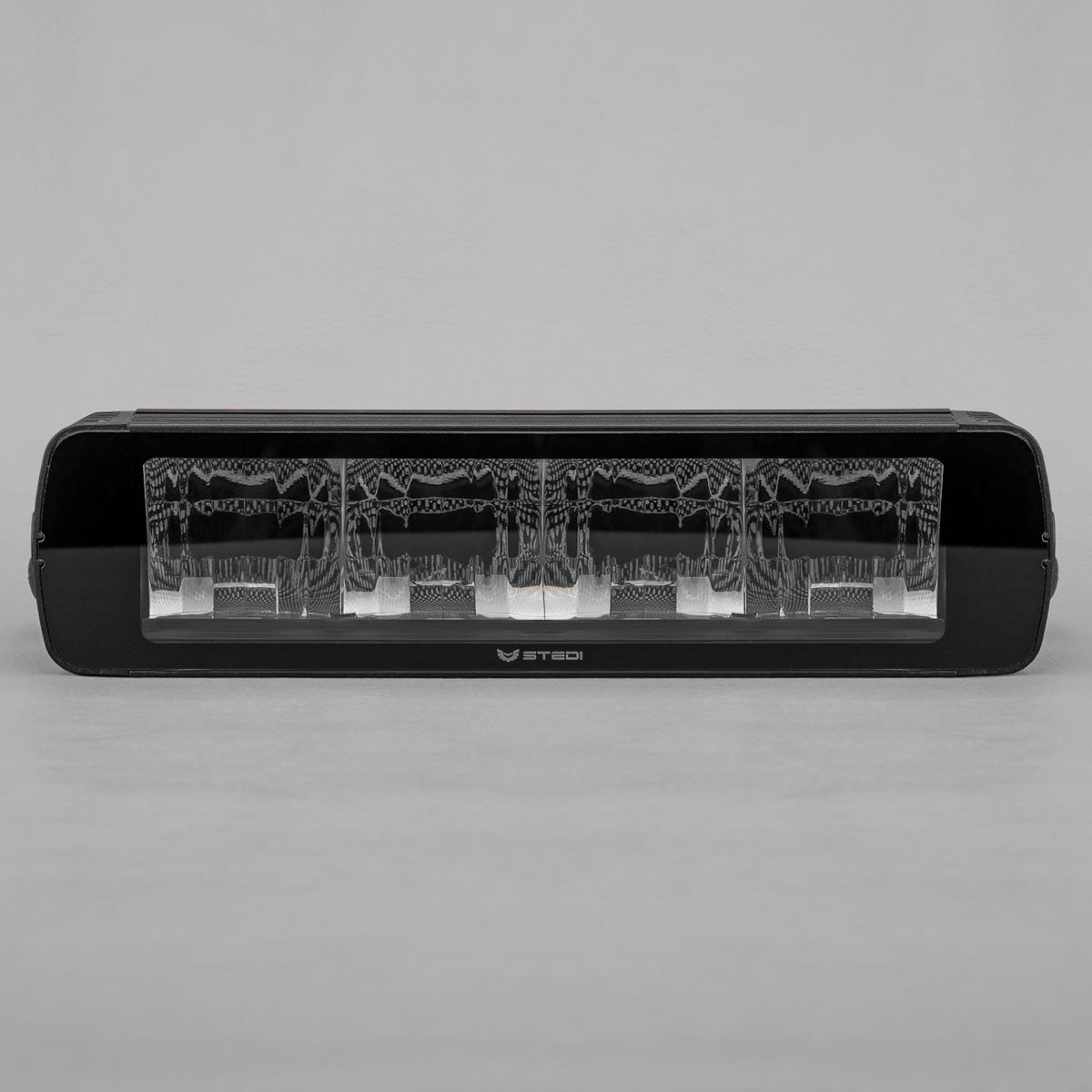

ST-X 12 inch LED Light Bar

ST-X 12 inch LED Light Bar

$176.00 AUD
$209.00 AUD $176.00 AUD
Sale Out of stock
Tax included. Shipping calculated at checkout.

BACKORDER

ELECTRIFYING PERFORMANCE.

At the core of the ST-X 12 Inch you will find world-class A grade 15W reverse facing emitters pushing out 2100 Lumens at a stunning 5000K colour temperature. The 30-degree horizontal beam pattern facilitates maximum illumination at the mid to long-range, all the way out to 1 lux @ 429m, with very little light within the first 80m. The 15-degree vertical spread means minimal light wasted and significantly reduces glare from road signs.

A CUT ABOVE.

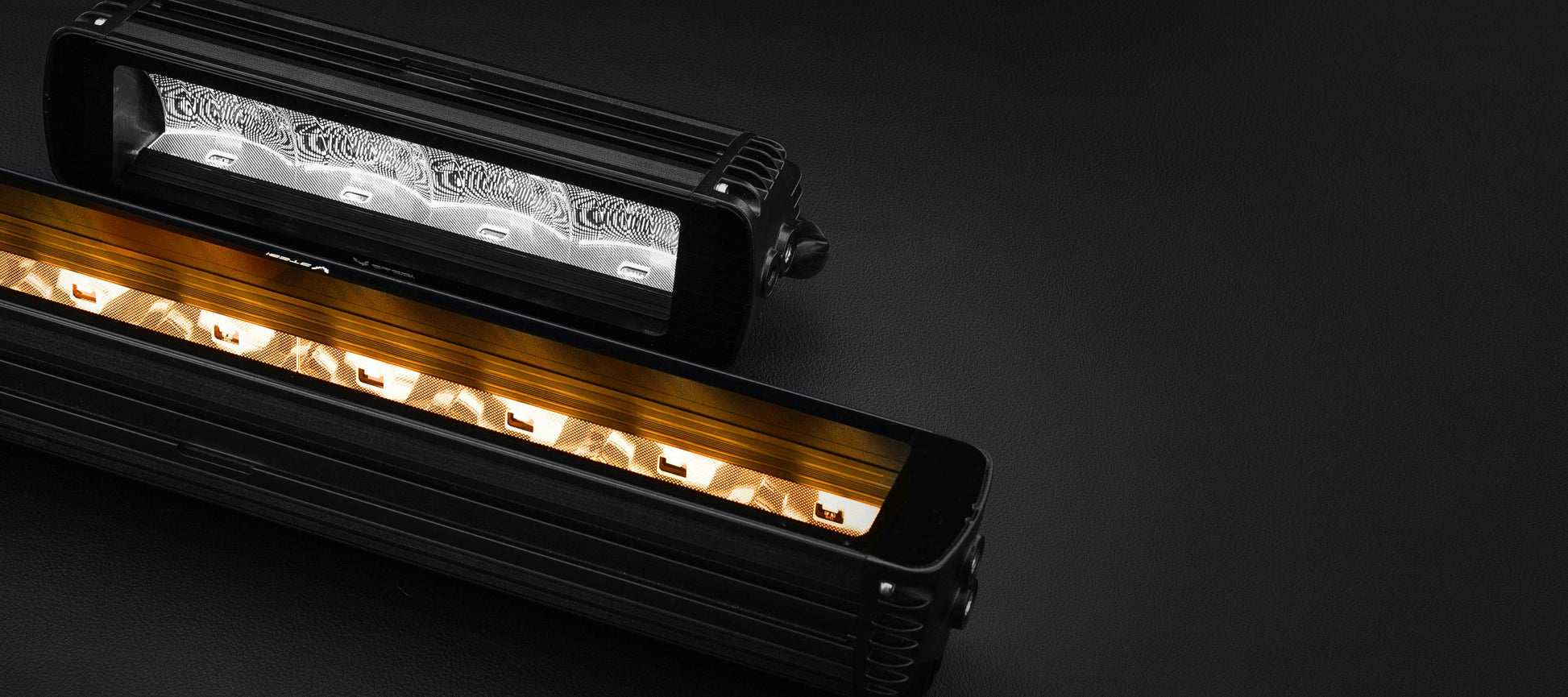

The circuit of the ST-X allows for a max output of 2100 Lm), keeping within the legal for road use in New Zealand and European countries. The built-in amber (1500K) or white (6000K) DRL / Position Light function allows you to stay conspicuous day or night. The hidden placement of the separate positioning light LEDs offers stunning uniformity of light distribution within the light bar.

NEAR INVISIBLE FRAME.

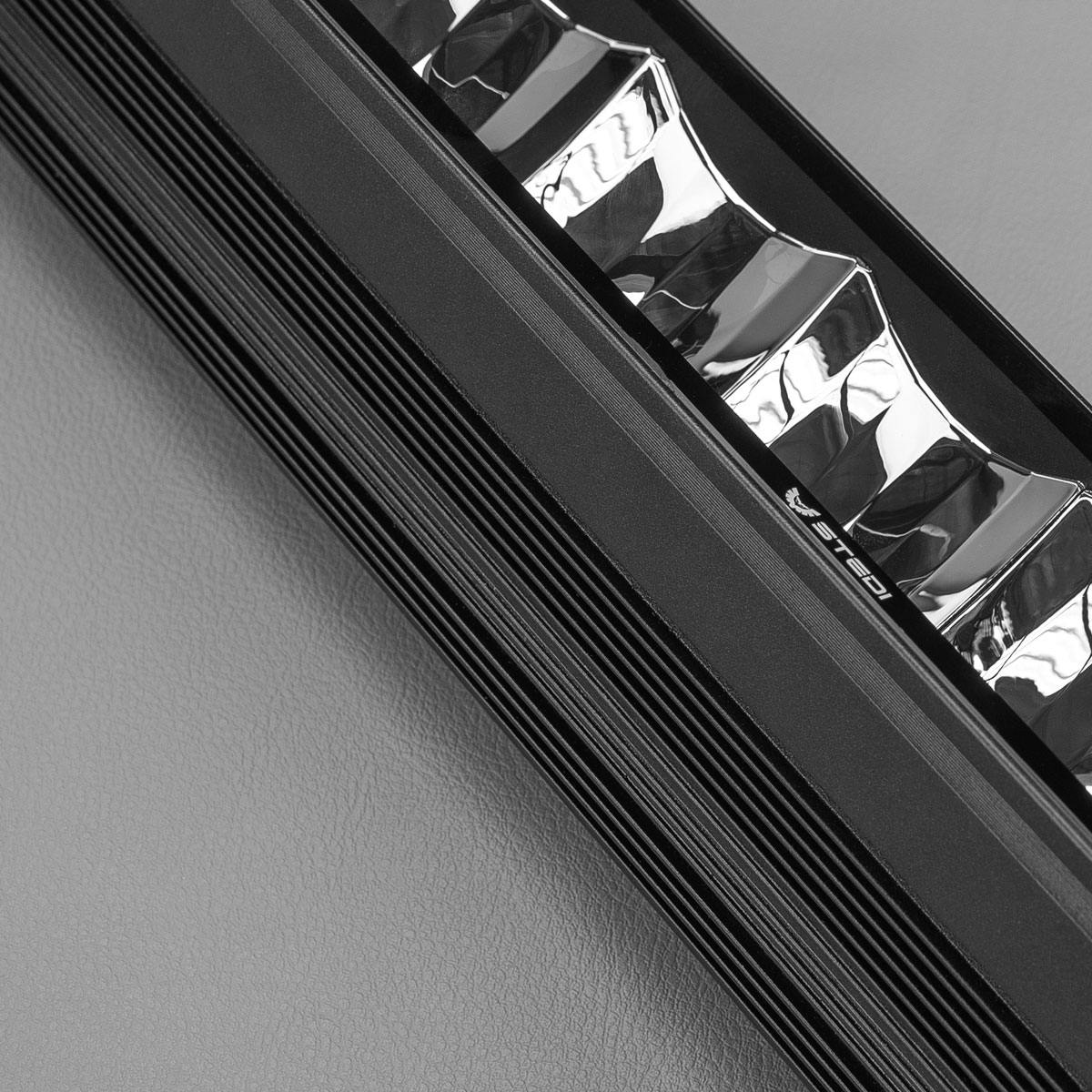

The STEDI name has always been synonymous with cutting edge design. Now, we yet again raise the bar with our all-new edge to edge bonded lens design. If Apple were to design a light bar, this would be it. It’s stunning from every angle.

The nitty
gritty.

THE BEAM PATTERN

If you're looking for a driving light that offers near-field spread, keep moving, this is not that. The optical properties of the hooded reflector design is best described as high-beam on steroids. The ST-X excels in the high-speed, high-way application when mid to long-range visibility is critical.

  • Significantly minimises adverse reflection from road signs
  • Controlled vertical spread minimises reflections off of high-mounted road signs.

KEY FEATURES

  • 4x 15W LEDs
  • LED Parking / Position Light Function (Amber or White built-in)
  • Breather allows pressure equalisation when rapid heat up and cool down cycles occur
  • Anodized Polyester Powder Coat
  • Weatherproof Deutsch® DTP Connector

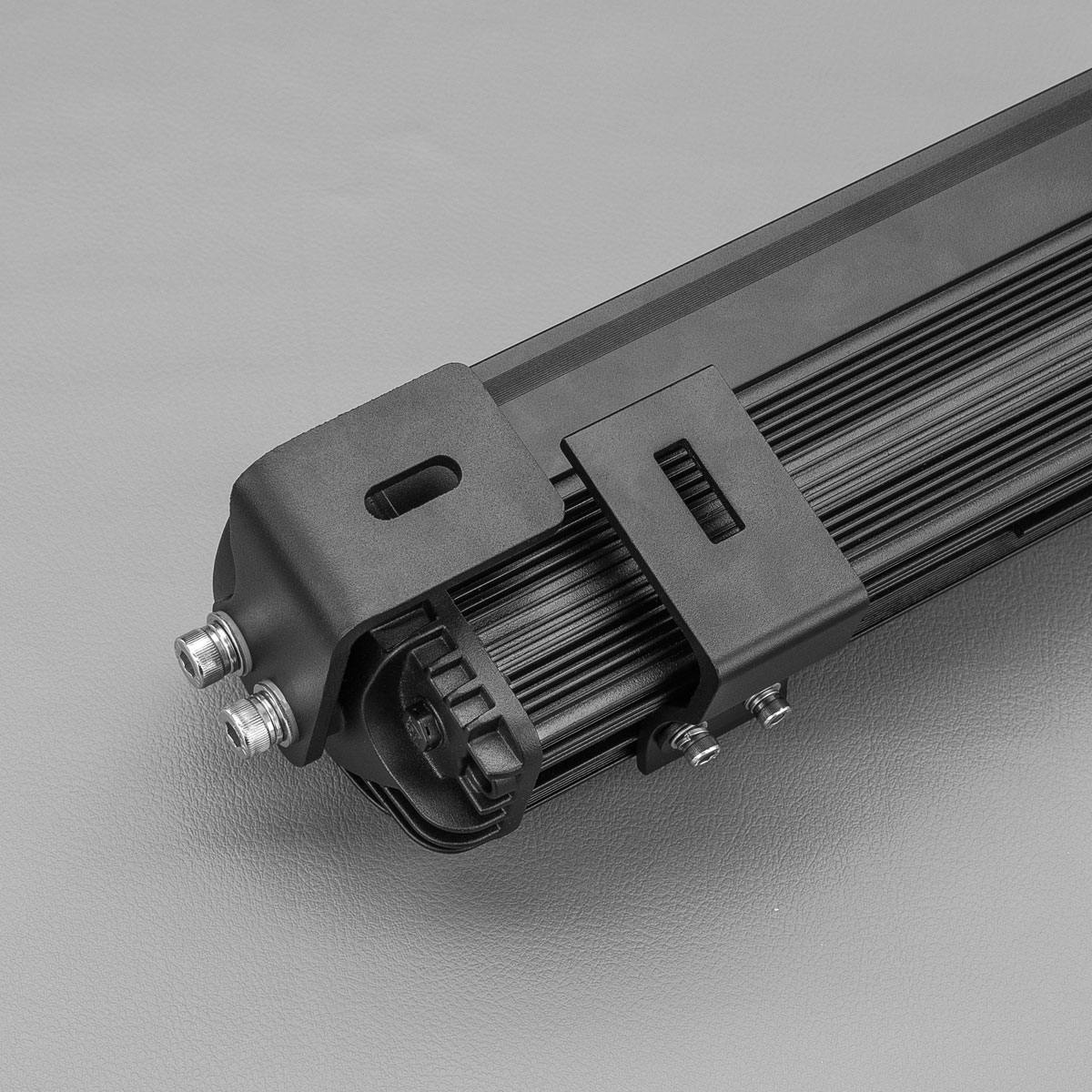

  • Includes adjustable Side brackets & Sliding bottom brackets

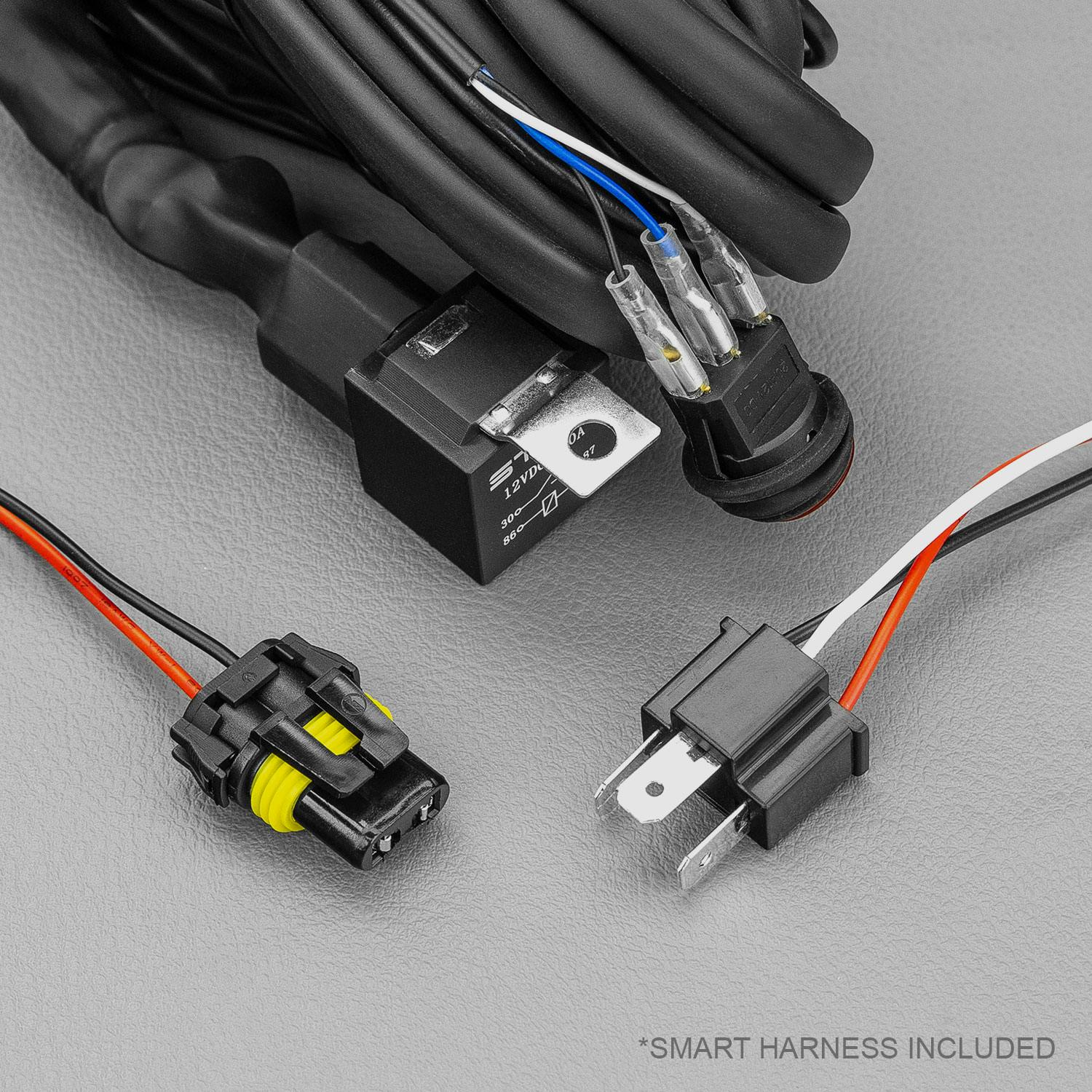

  • Includes our Easy-Fit Plug & Play High Beam Wiring Harness with HB3 & H4 adapter (Compatible with both negative and positive switched vehicles)
  • Protected against reverse polarity
  • Shockproof, IP68 waterproof, UV Shielded
  • Protected Against RFI / EMC Interference
  • Voltage & current surge protection
  • Pulse Width Modulation Thermal Management

Click here to find your vehicle-compatible Piggyback Adapter.

Tech Specs

VOLTAGE 9-36V
AMPERES 4.08A
POWER 48.96W
LUMENS 2100LM
COLOUR TEMPERATURE 5000K
AMP RATING 0.1a

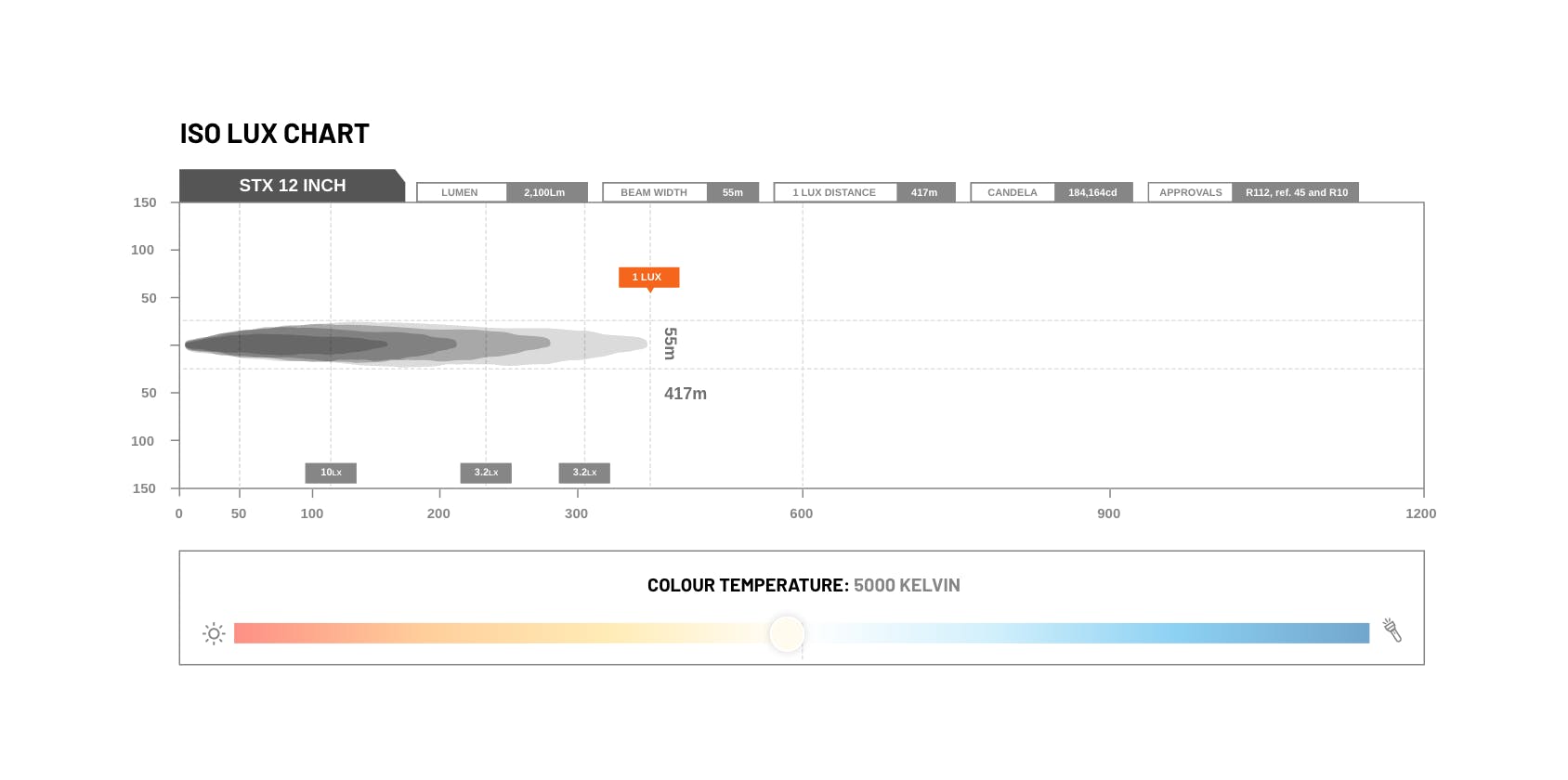

PHOTOMETRIC DATA 1 lux @ 429m
LENS MATERIAL Optical grade, Hard-Coated LEXAN

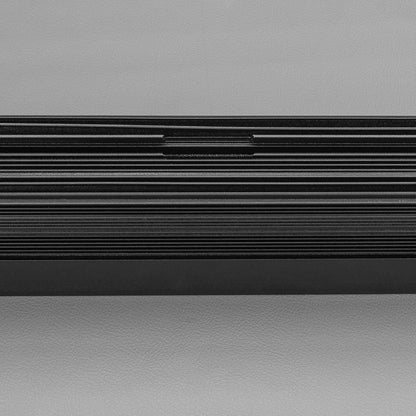

HOUSING MATERIAL 6063 Extrusion
INGRESS PROTECTION IP68
CANDELAS 184,164
CONNECTOR 60cm Cable with DTP 4in
CERTIFICATES R112, ref. 45 and R10
LIFESPAN 50, 000hrs (LM80)
OPERATING TEMP -40°C ~ +60°C
PRODUCT WEIGHT 1.6kg
SHIPPING WEIGHT 2.1kg

What's Included

  • 1 x 12 Inch ST-X-20L LED Light Bar
  • 2 x Steel Side Brackets
  • 4 x Steel Sliding Brackets
  • Easy-Fit High Beam Wiring Kit | HB3 & H4 piggy-back included.
  • Comprehensive 304 Stainless Steel fasteners
  • Wiring Instructions

Shipping & Returns

Refund Policy

Shipping Policy

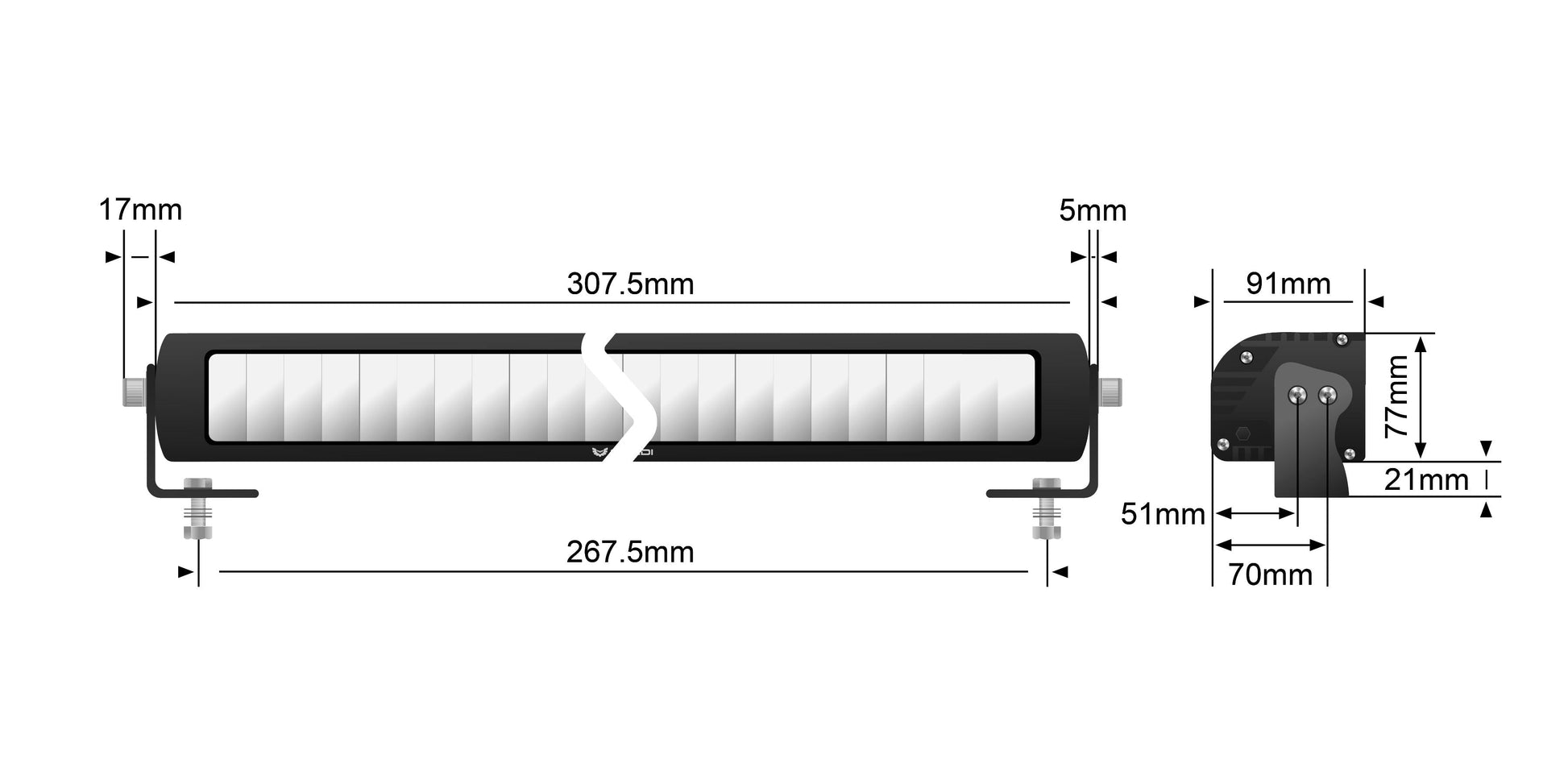

Dimensions
