Rpdbsi Smart Start Sbi 12v 100a

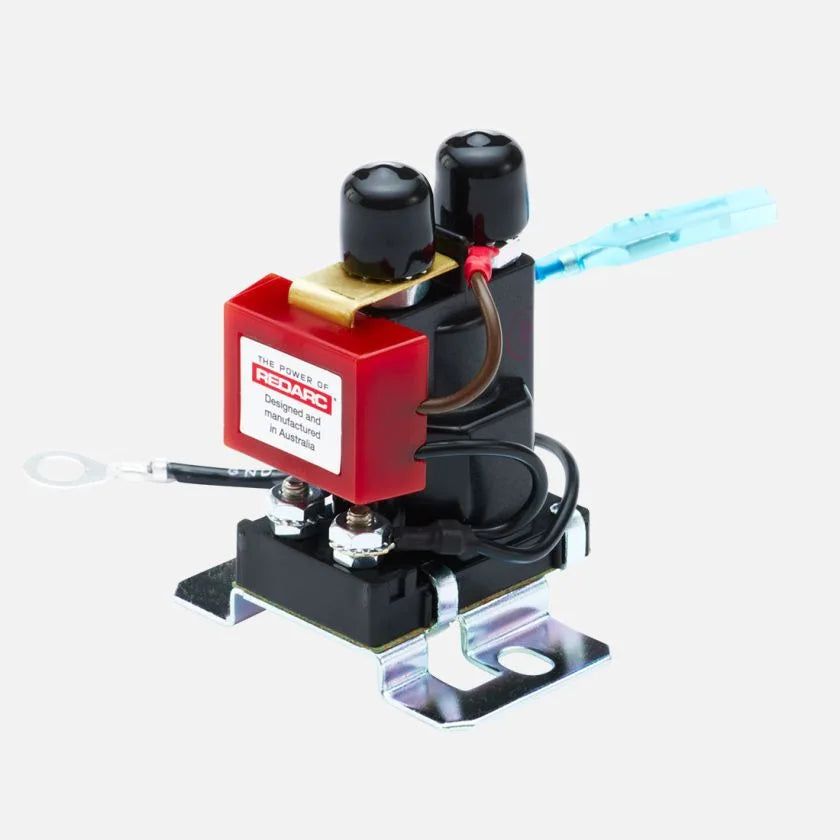

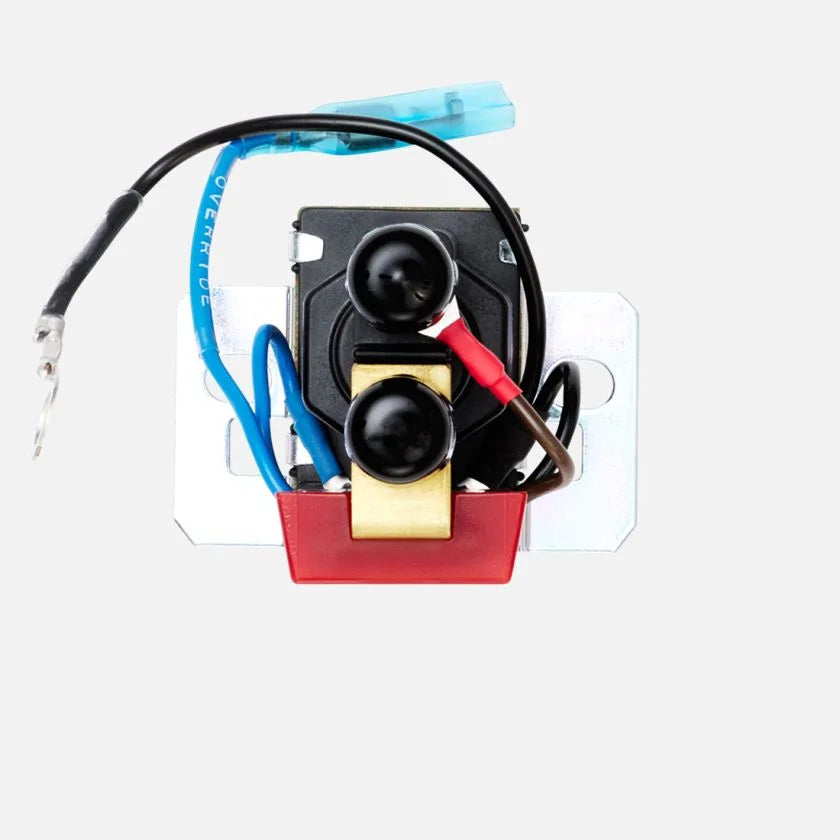

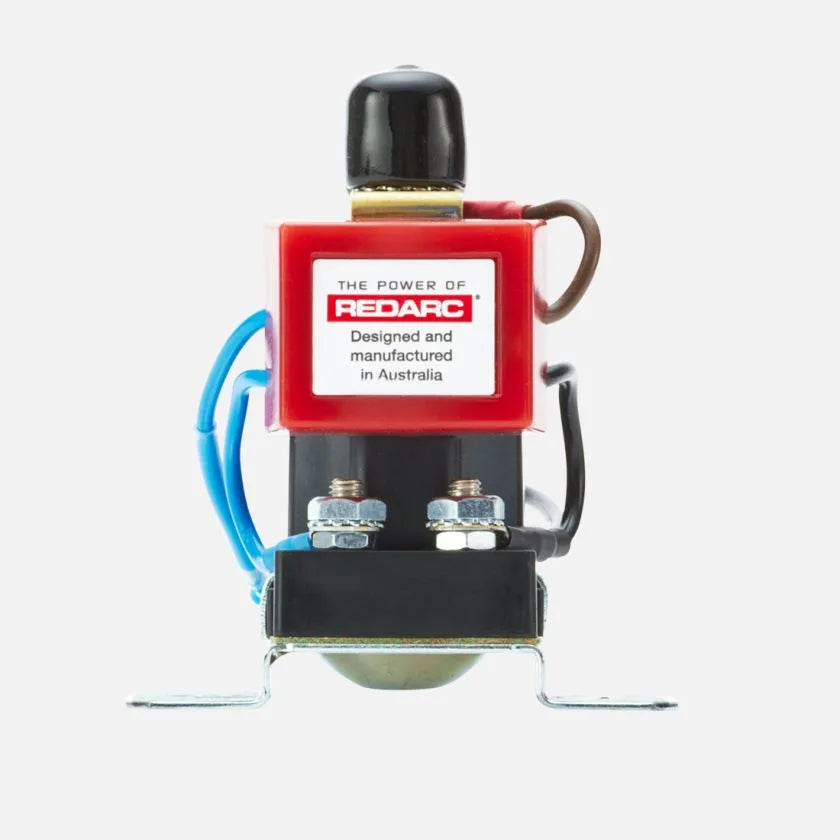

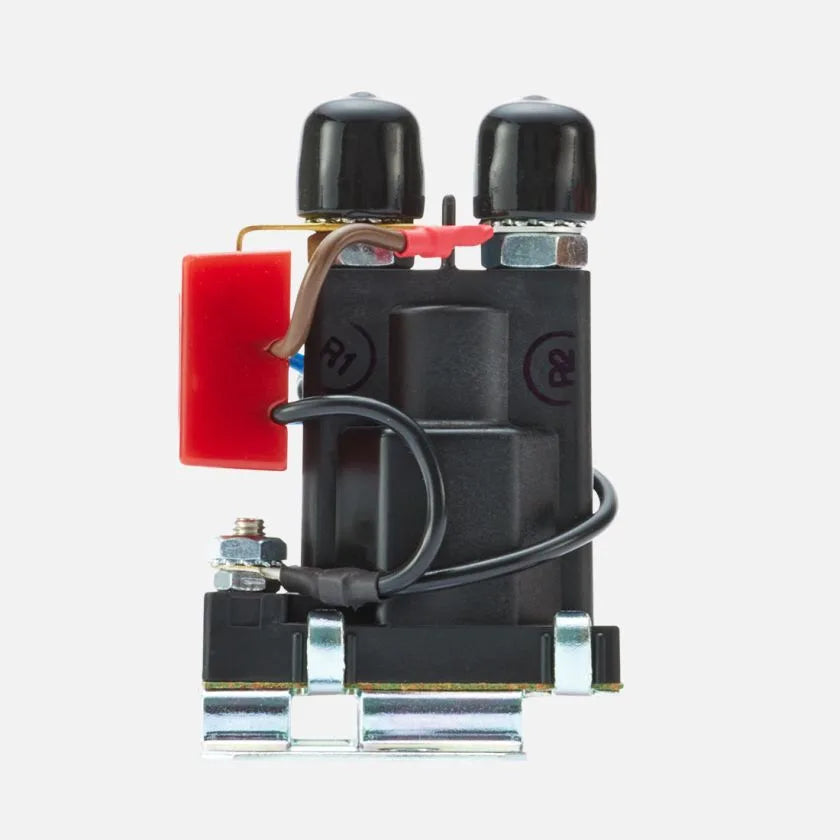

The REDARC Smart Start® SBI2 is a microprocessor-controlled battery isolator used in dual battery systems as a solenoid priority system. It will protect the start battery from excessive discharge, whilst allowing the auxiliary battery to supply non-essential loads. The SBI2 provides 12 volt DC incorporating 100A of continuous ratings.

POWER SAVING TECHNOLOGY

The battery isolator is primarily used in 4WD and commercial vehicles and incorporates electronic components that will prevent the solenoid from generating high voltage transients. It is better than a diode battery isolator due to the voltage drop associated with diode type isolation. It features a low standby current draw and sophisticated fault detection and LED indication of operation to warn the user of faults including over-voltage, voltage drop and excessive current draw conditions.

The Smart Start SBI12 battery isolator is a safe way to charge a dual battery system and should often be installed with a high quality fuse kit.

FEATURES

• Overmould design
• Compact in size and easy to install
• Silver contacts for longer life and suitable for marine applications
• Power saving technology
• Fault indication
• Fully surge protected

Not sure what dual battery system is best for your vehicle? Let Shaun Whale explain more.
