Stedi

SNGL-X1-SPORT-8-5INCH

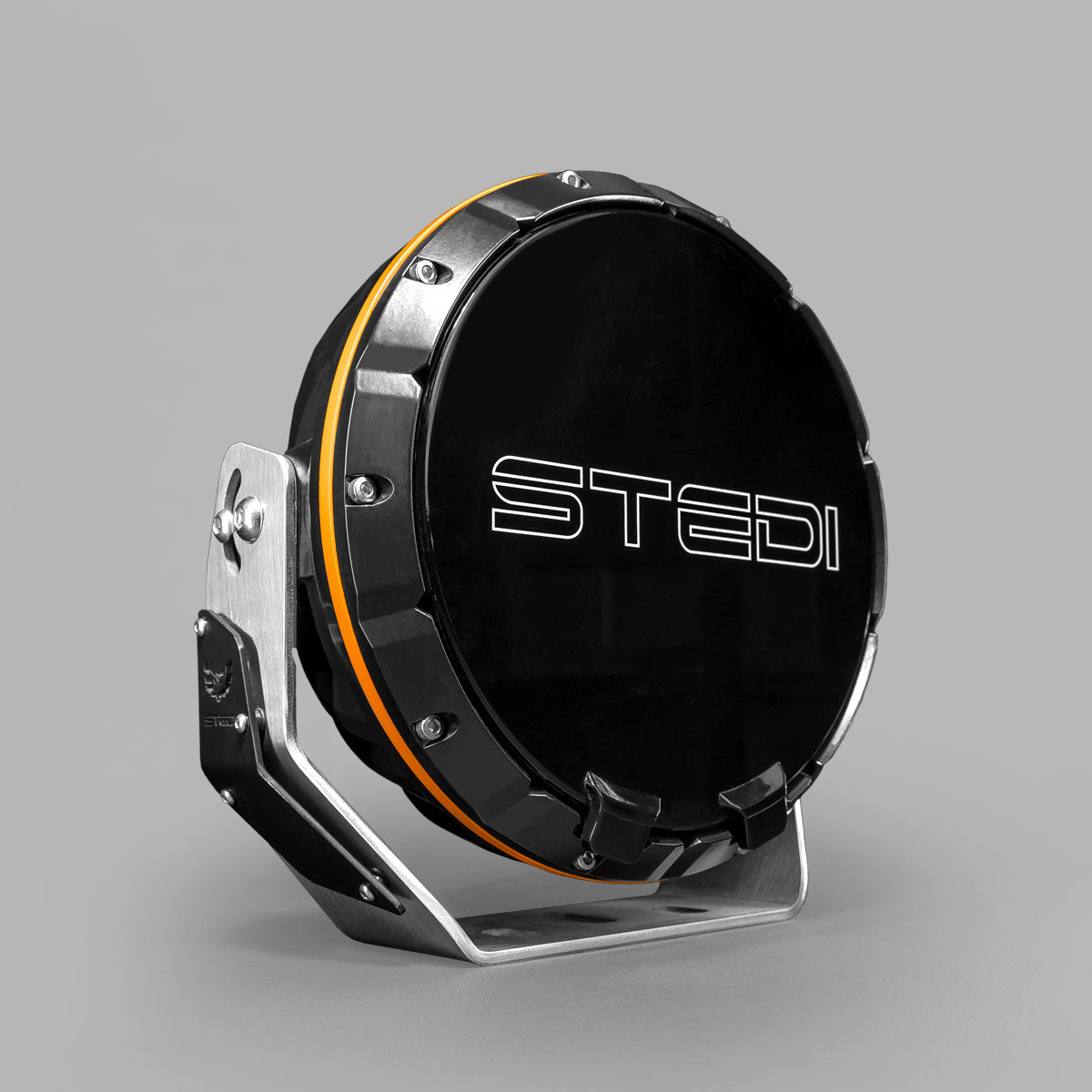

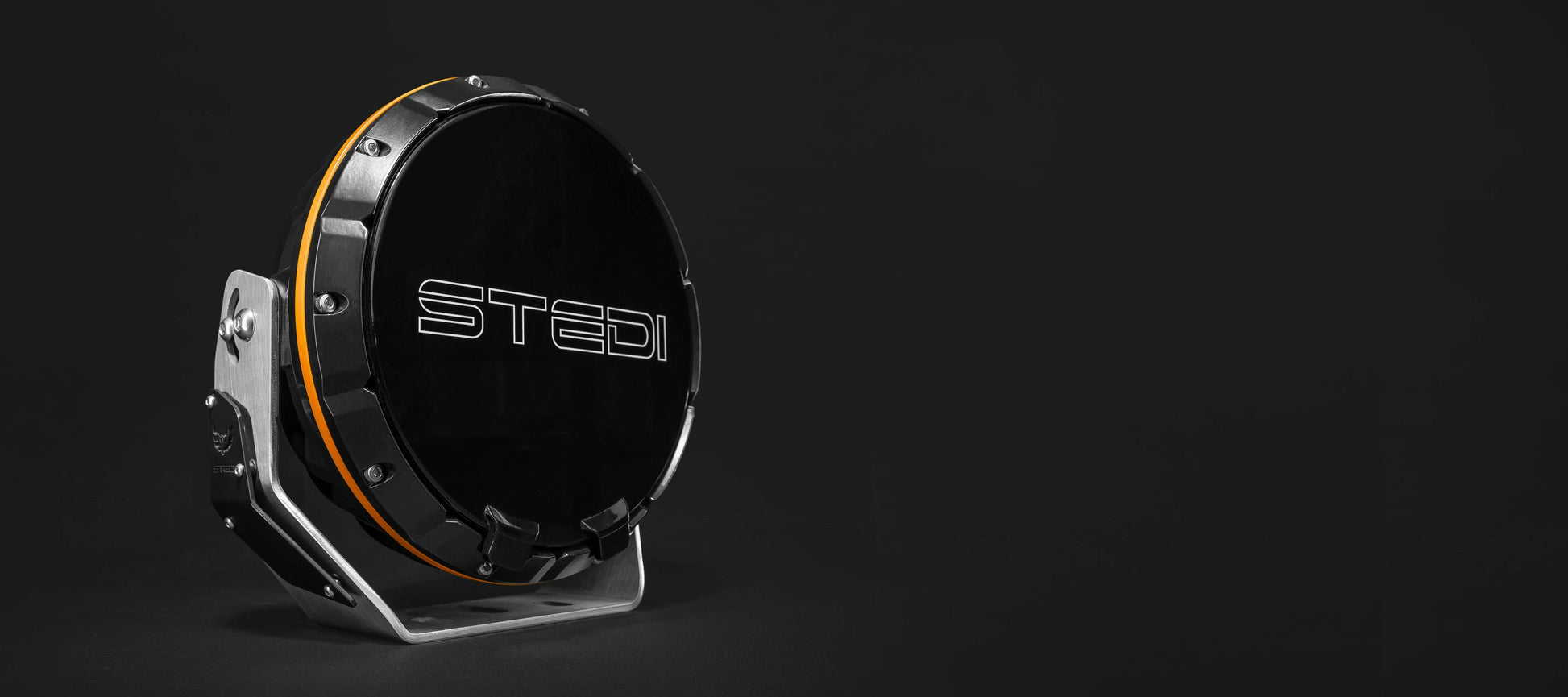

Single (1x light) 8.5" Type-X™ Sport

Single (1x light) 8.5" Type-X™ Sport

$239.00 AUD
$239.00 AUD
Sale Out of stock
Tax included. Shipping calculated at checkout.

Low stock: 1 left

HIGH PERFORMANCE - ACCESSIBLE PRICE

Get to know the Type-X™ Sport; our most affordable driving light yet. The goal of STEDI™ is to offer high-performance, high-quality driving lights at accessible prices. Compare the build quality, performance, and list of inclusions with other offerings on the market and you will conclude that our Type-X™ Sport is peerless.

LEGENDARY TYPE-X™ DNA

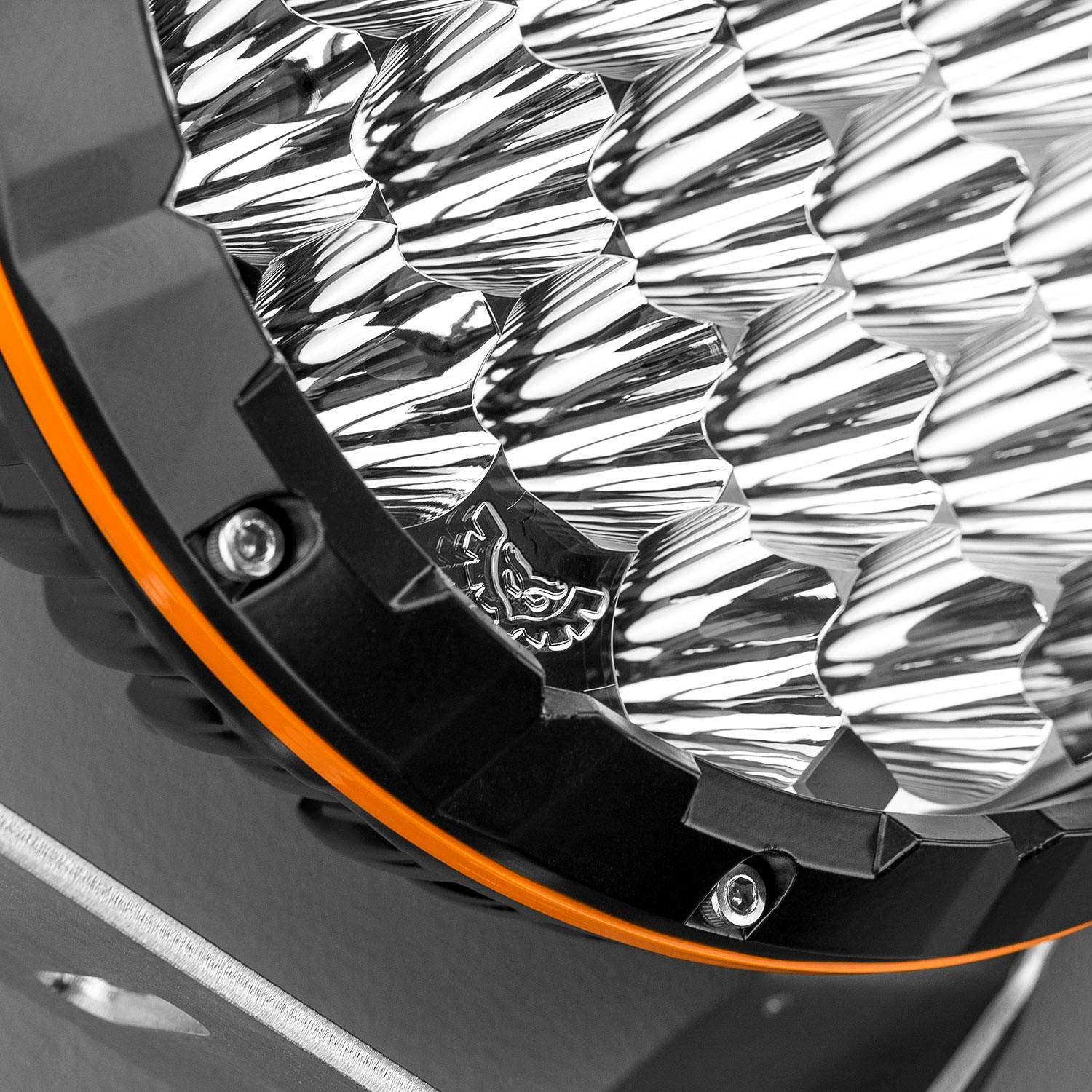

All-new reflector geometry, all-new LEDs, and all-new housing. We’ve increased the depth of the optics by 35% allowing for a perfectly collimated beam and the resultant increase in light intensity. The beam diameter strikes a sublime balance between width and throw, sending light right out to 1,050m. Four dedicated built-in wide-beam optics disperse light evenly into the nearfield, and transition beautifully with the spot beam.

STEDI™ DESIGN LANGUAGE

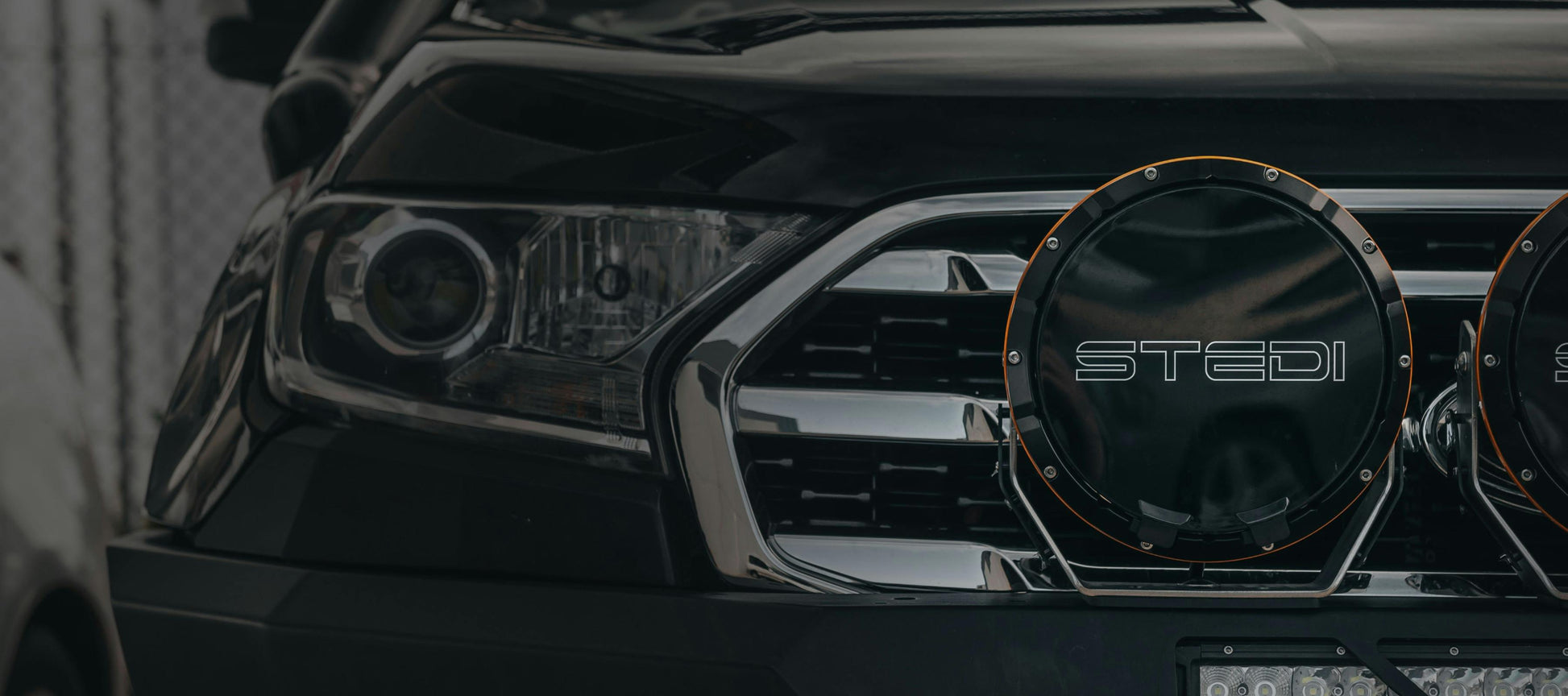

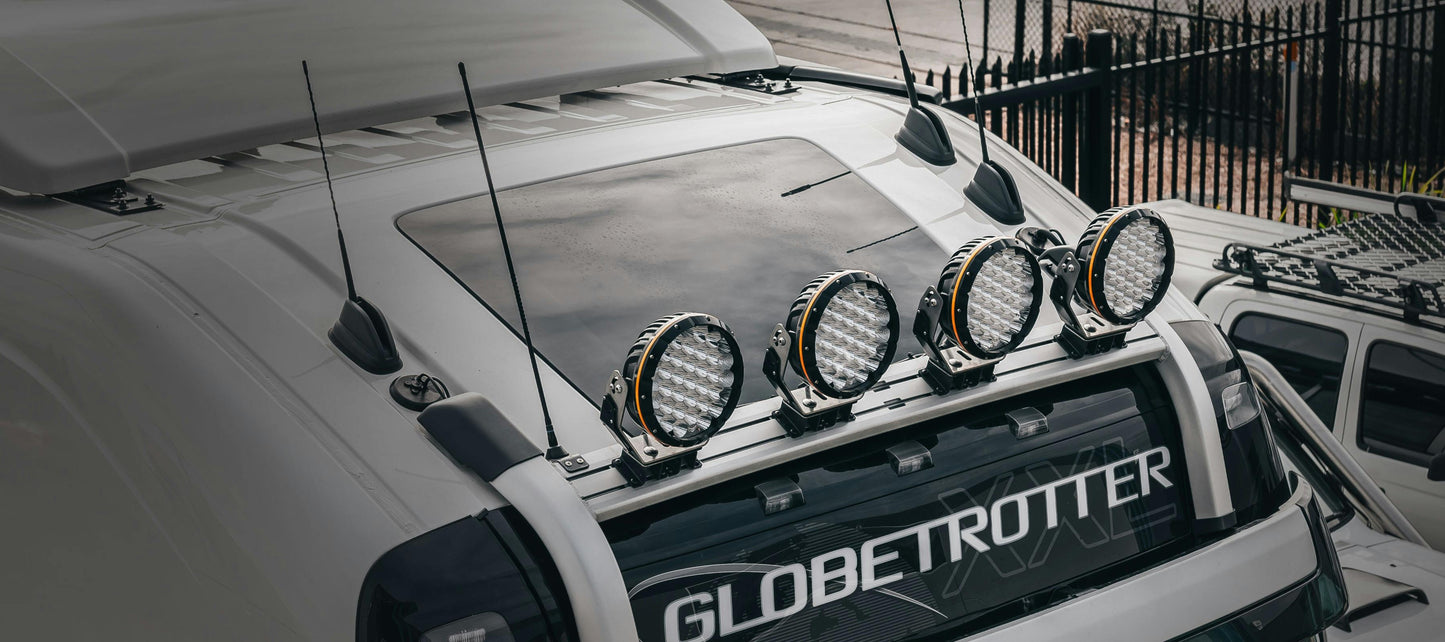

Some people call it the little things; for us, it is literally everything. We have obsessed over the most trivial geometries and design elements to achieve a visually stunning luminaire. The accompanying brackets (with the laser-cut STEDI™ branding) will allow the Type-X™ Sport to be mounted on a range of locations on your vehicle.

The nitty
gritty.

THE NERDY DETAILS

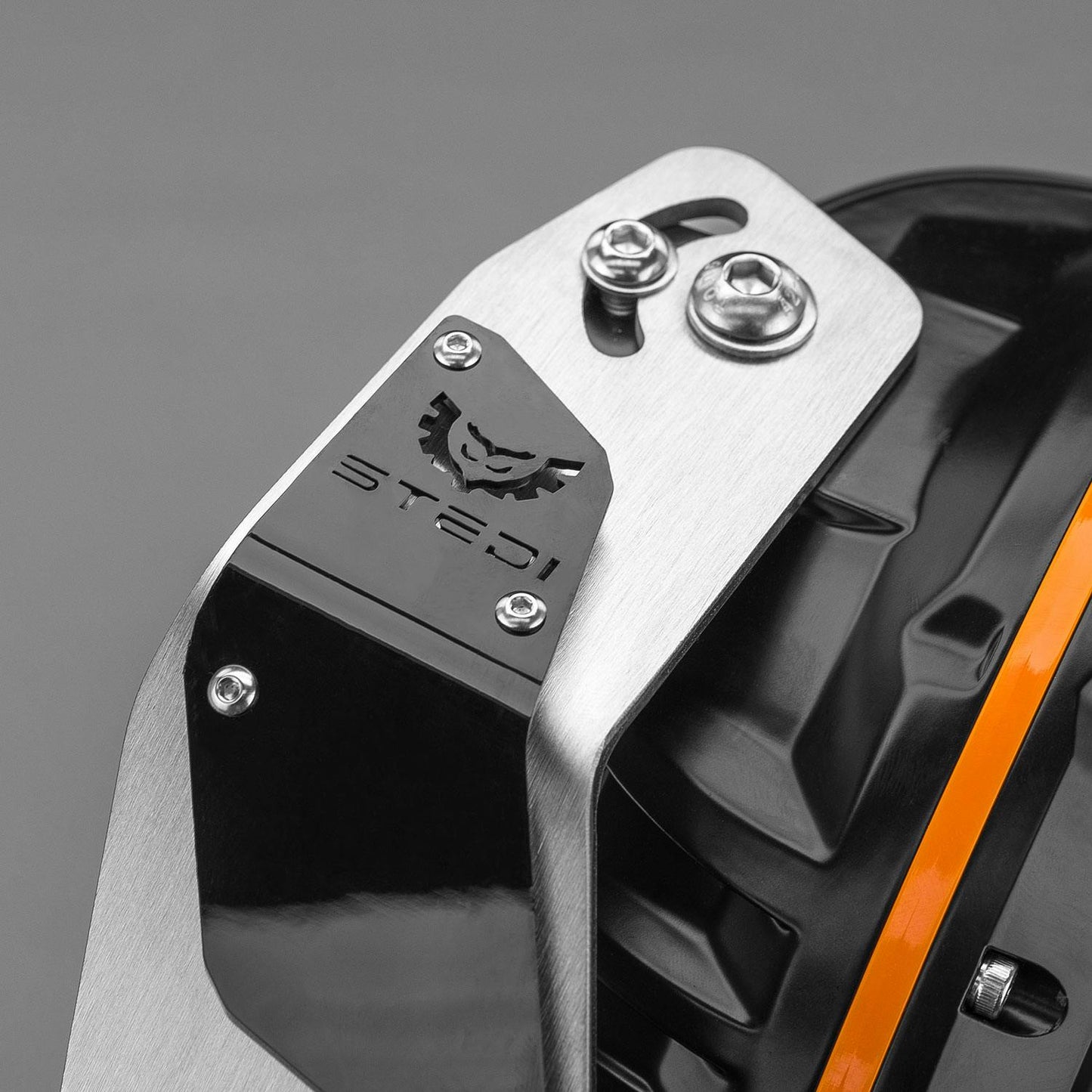

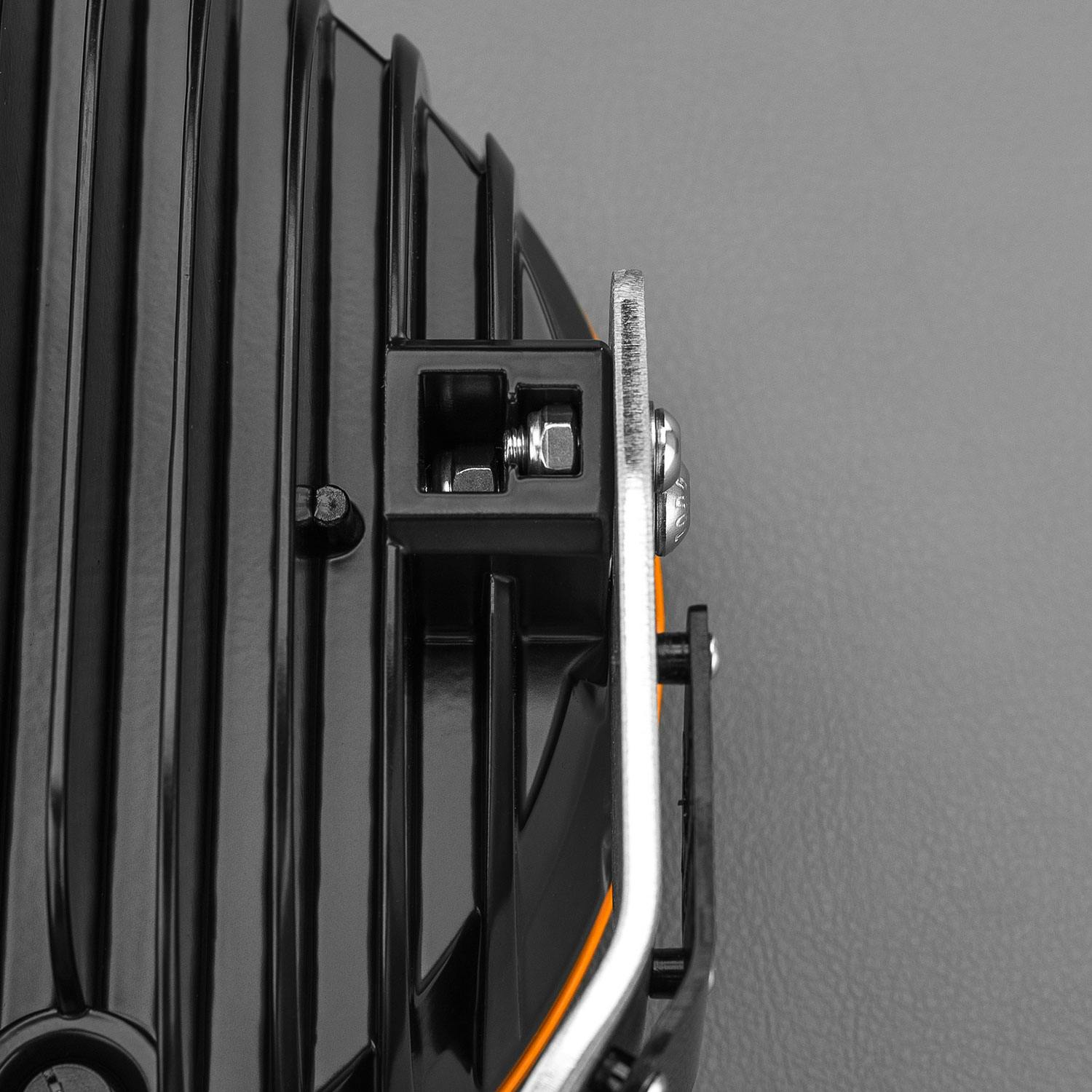

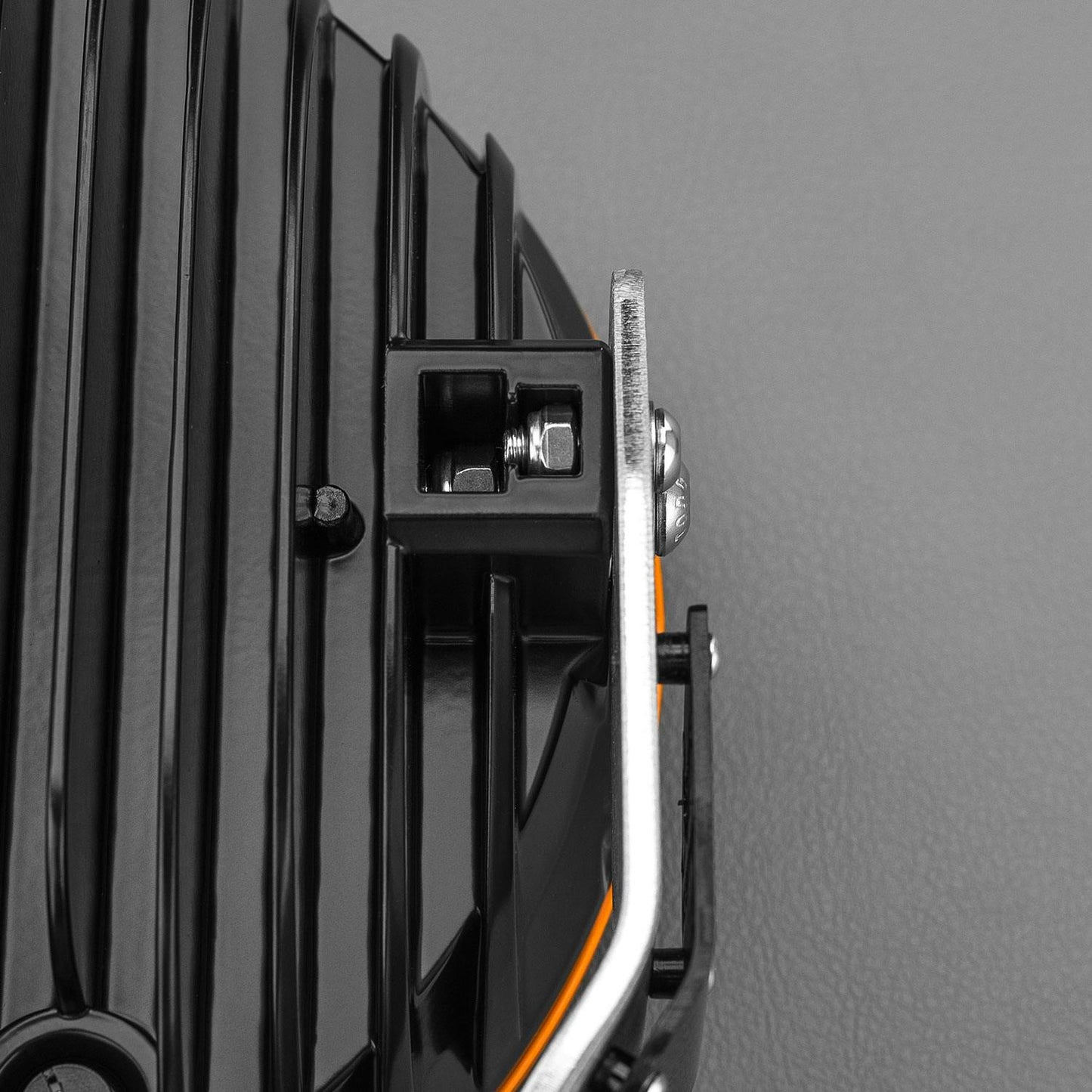

  • 4mm thick 304 Series Stainless Mounting bracket, which includes rubber dampener and an additional 3mm upper plate.

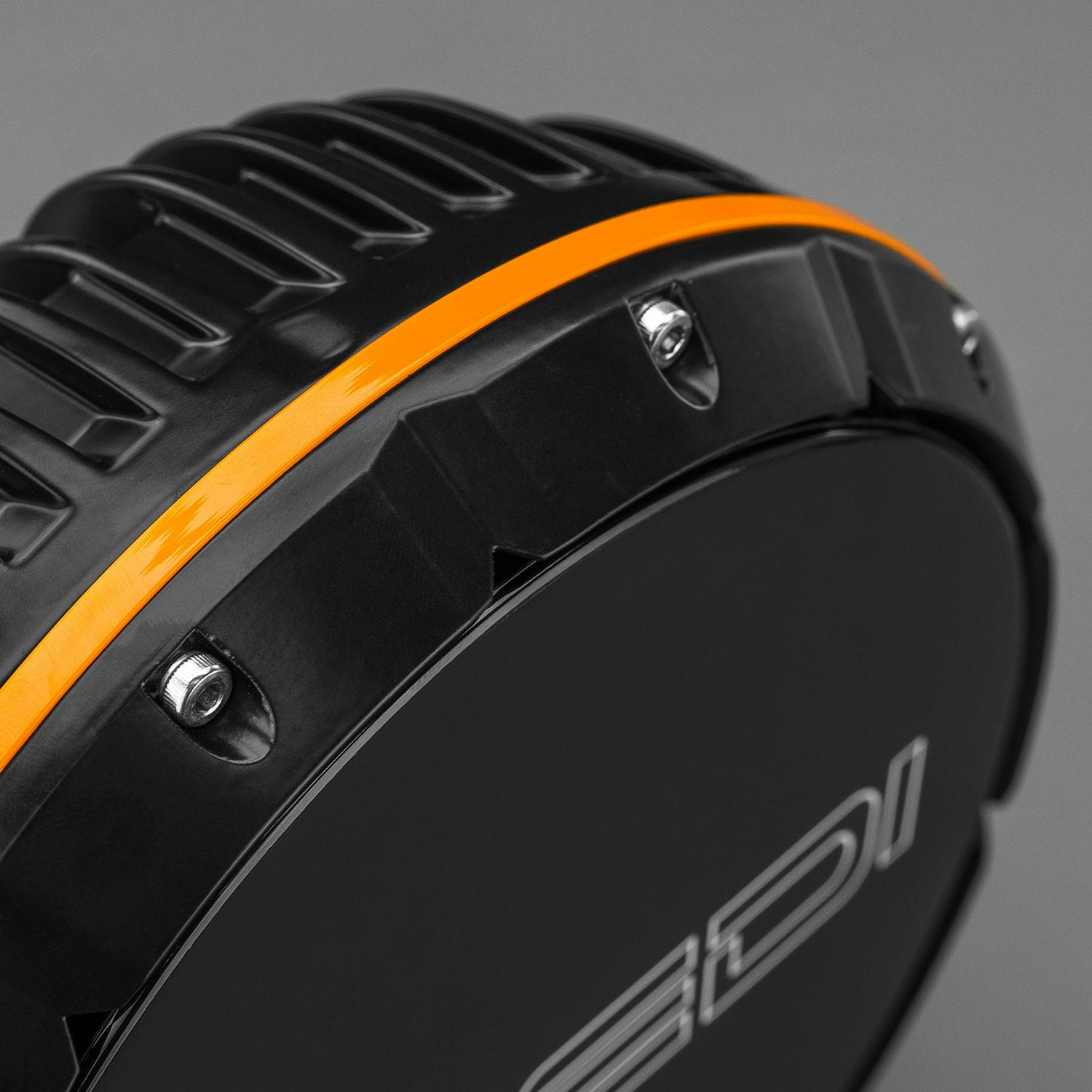

  • A360.0 Cast Housing | Boasting superior strength and corrosion resistance.
  • 3mm Thick GE Lexan Lens with hard coating | Virtually unbreakable & scratch resistant
  • 100% Polyester UV and abrasion resistant powder coat
  • IP68 | Dust & Particle tight + Water-proof up to 3 meters
  • Nitto Denko Pressure Equalization vent with membrane | Protects against water ingress, dust & contaminants.

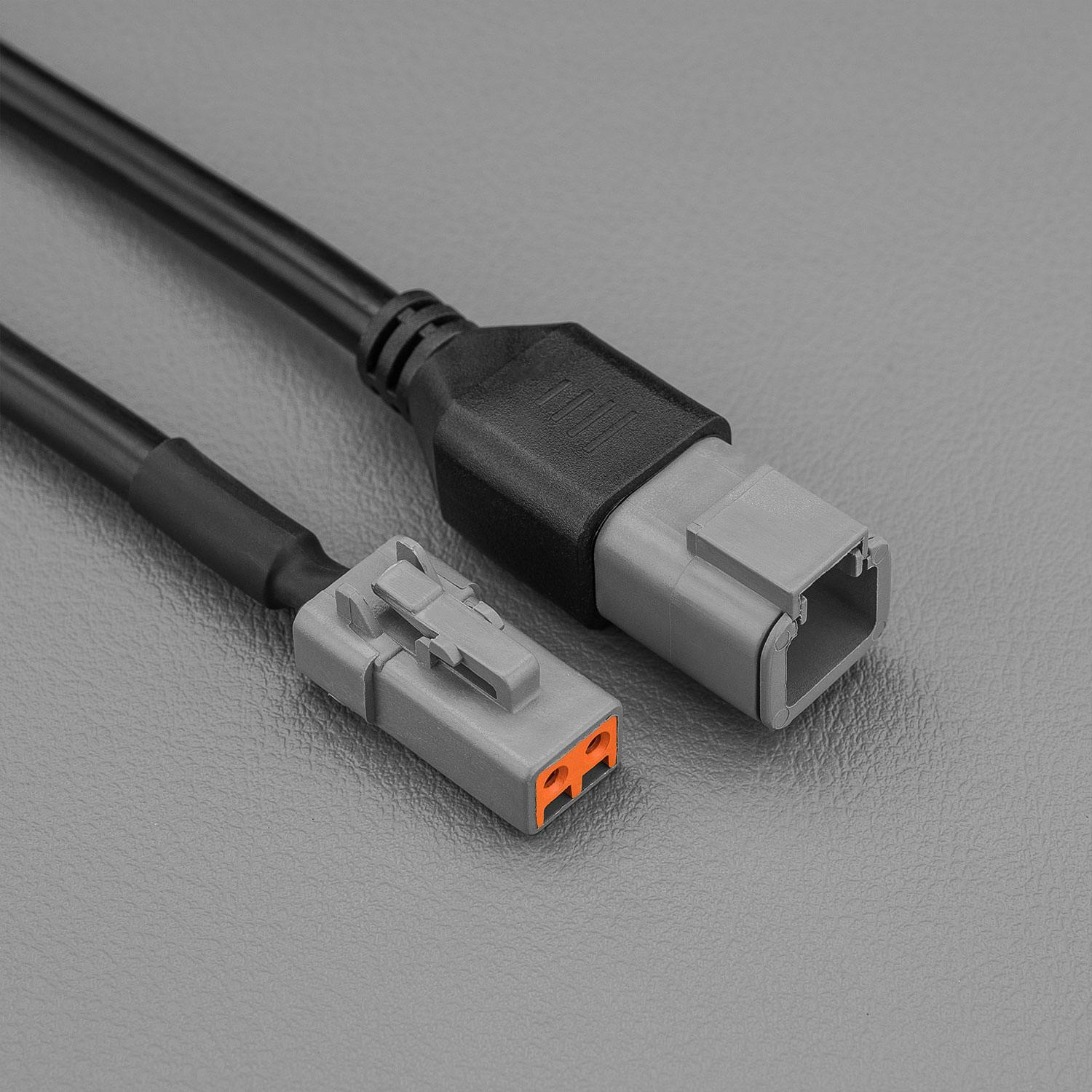

  • Environmentally Sealed Deutsch® DTP-2 connector
  • EMI & RFI Suppression circuitry – We guarantee it.
  • Each TYPE-X Sport comprises 36 of OSRAM’s® finest OSLON® LED, selected for its high luminous flux and perfectly matches optical properties.
  • Four wide-beam reflectors built-in, which form a lateral shaped flood pattern designed to minimize valuable light wasted up to the sky. Also available separately are the snap-on wide-beam covers, for environments demanding an increased peripheral vision.
  • 5700K CCT offers stunning clarity and definition with excellent Colour Rendering Index (CRI)

DOES NOT INCLUDE WIRING HARNESS
We recommend Single Connector Plug & Play High Beam Driving Light Wiring

Tech Specs

LED 36 x Osram Oslon SSL
RAW LUMENS 10, 390
TESTED LUMENS 7, 475
AMP DRAW 9.8A @ 13.2v
POWER DRAW 129W
CANDELA cd
BEAM PATTERN 4 x Spread 32 x Spot Beam
INGRESS PROTECTION IP68 | Submersible up to 3m
COLOUR TEMP (CCT) 5700K
VOLTAGE COMPATIBILITY 12v & 24v
LUMEN MAINTENANCE 50,000 LM-80
WEIGHT 3.35kg
10 m 11,025Lx
50 m 441Lx
200 m 27Lx
300 m 12Lx
400 m 6Lx
1,000 m 1.1Lx
1,050 m 1Lx

What's Included

  • 1 x STEDI TYPE-X Sport

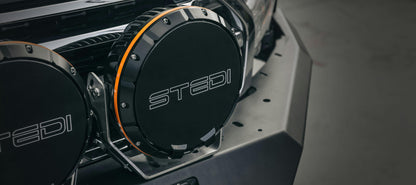

  • 1 x STEDI Black Out Covers
  • 3 Series Stainless Steel Nuts and Bolts
  • Rubber Shock Dampener

Shipping & Returns

Refund Policy

Shipping Policy

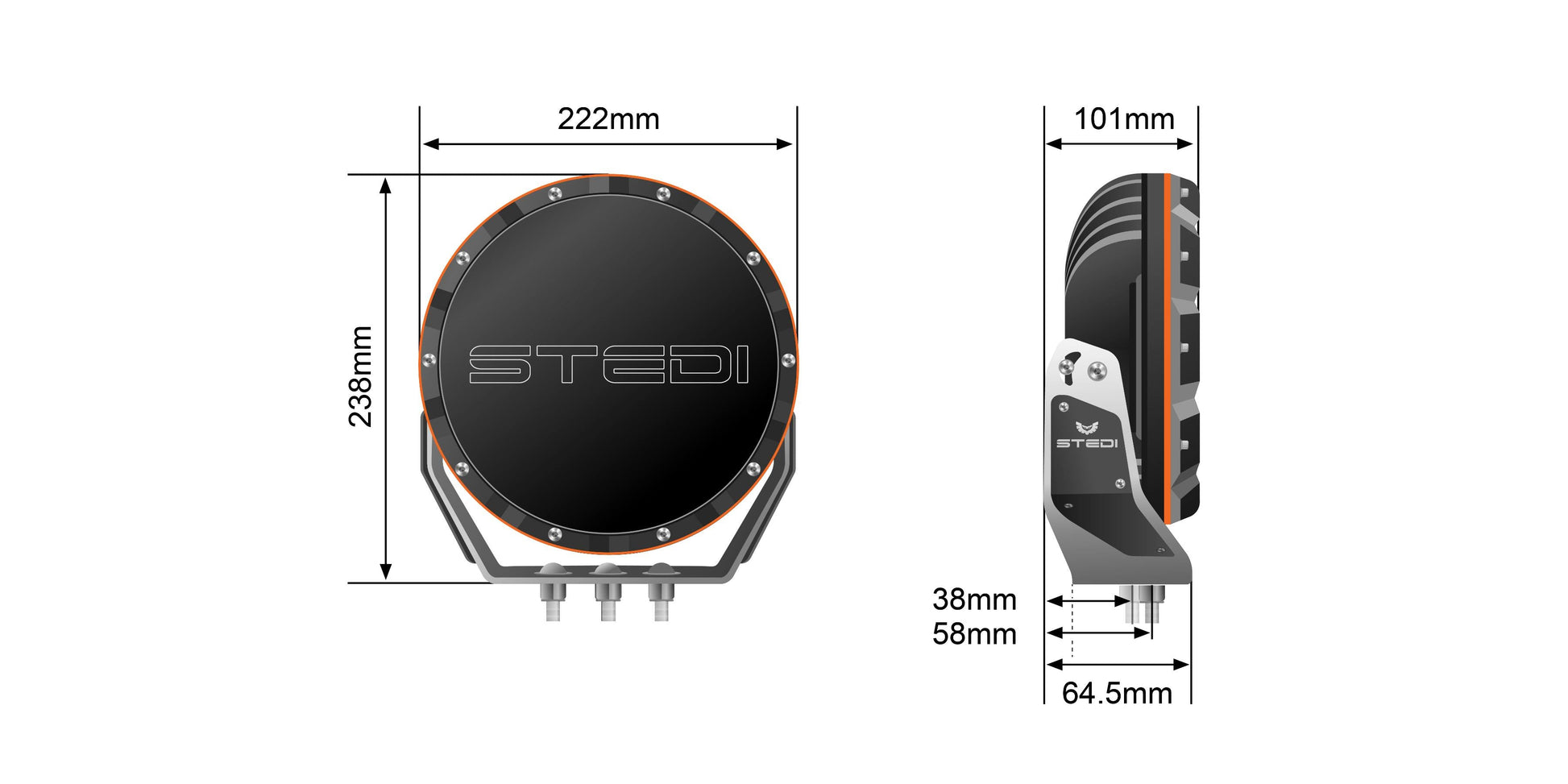

Dimensions

Length:

Width:

Height:
