REDARC’s new Universal range of Wiring Kits feature technology, come preinstalled with the Encapsulated Protection Device and compatible with modern driver aids such as Autonomous Emergency Braking, Adaptive Cruise Control, lane departure, collision avoidance and where the vehicle brake signal may be generated from different systems.
The standard 1m Remote Head cable that comes supplied in the Tow-Pro Elite (EBRH-ACCV3) will support the location of the remote head in the centre of the vehicle when the main unit is located around the glovebox area. If the preferred location for the remote head in these instances is on the driver’s side, you will need to purchase and fit the 2m remote head cable.
By using a REDARC Tow-Pro Wiring Kit you ensure a quick and high-quality installation of Australia’s favourite brake controller, the Tow-Pro Elite.
REDARC offer a wide range of accessories to aid and assist the install of the market-leading Tow-Pro Elite into most vehicles including Switch Inserts, Remote Head Wiring Kits and a Mounting Bracket Kit.
WHAT'S INSIDE?

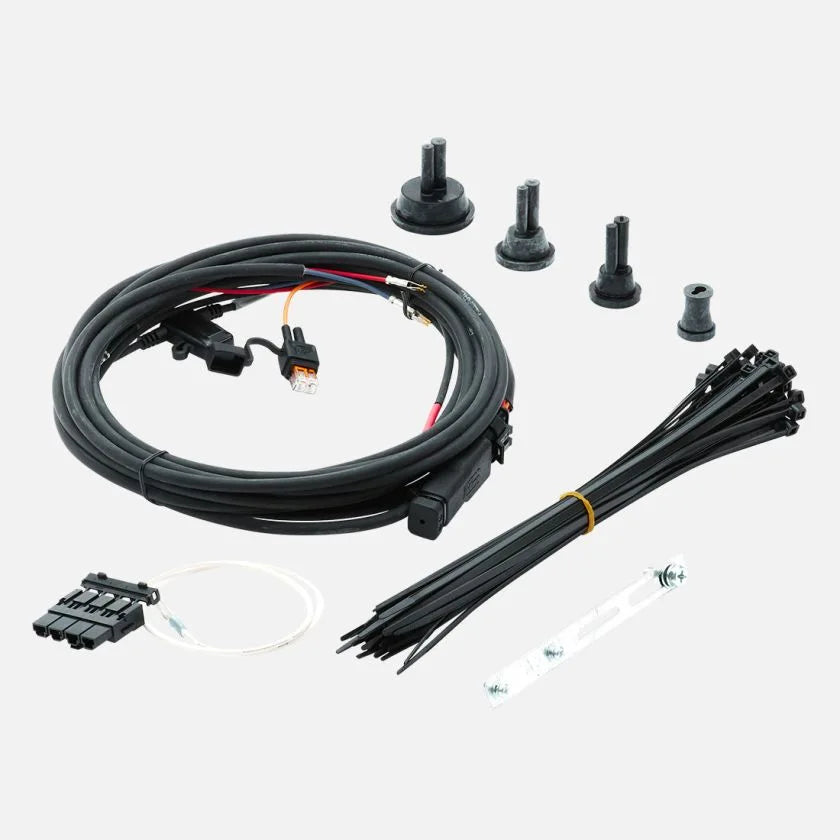

- Tow-Pro Universal Wiring Kit (TPWKIT-013)
- Select one of 10 vehicle specific switch inserts to allow the remote head to be installed into an existing dashbaord swtich panel
SWITCH INSERT COMPATIBILITY
| PART NUMBER |
SUITBALE FOR |
| TPSI-001 |
Universal model |
| TPSI-002 |
Suitable for Toyota Hilux & Mitsubishi Triton |
| TPSI-003 |
Suitable for Holden Colorado |
| TPSI-005 |
Suitable for Isuzu D-MAX SX & Mazda BT50 (2020 onwards) |
| TPSI-006 |
Suitable for Isuzu D-MAX & Isuzu MU-X (pre 2020) |
| TPSI-007 |
Suitable for Toyota 70 Series |
| TPSI-008 |
Suitable for Nissan Pathfinder R52 (2013 onwards) & Mercedes-Benz X-Class (2018 onwards) |
| TPSI-009 |
Suitable for Mazda BT50 (2011 - 2020) |
| TPSI-010 |
Universal Remote Head Kit |
| TPSI-011 |
Suitable for Toyota 2019+ Square Inserts (including 200 & 300 Series) |
- Not compatible with Ford Ranger and Everest, please refer to TPWKIT-012.
Specifications
| Voltage Rating |
12V |
| Weight |
0.9 kg |
| height |
65 mm |
| width |
290 mm |
| depth | length |
290 mm |
| Warranty |
2 Years |
