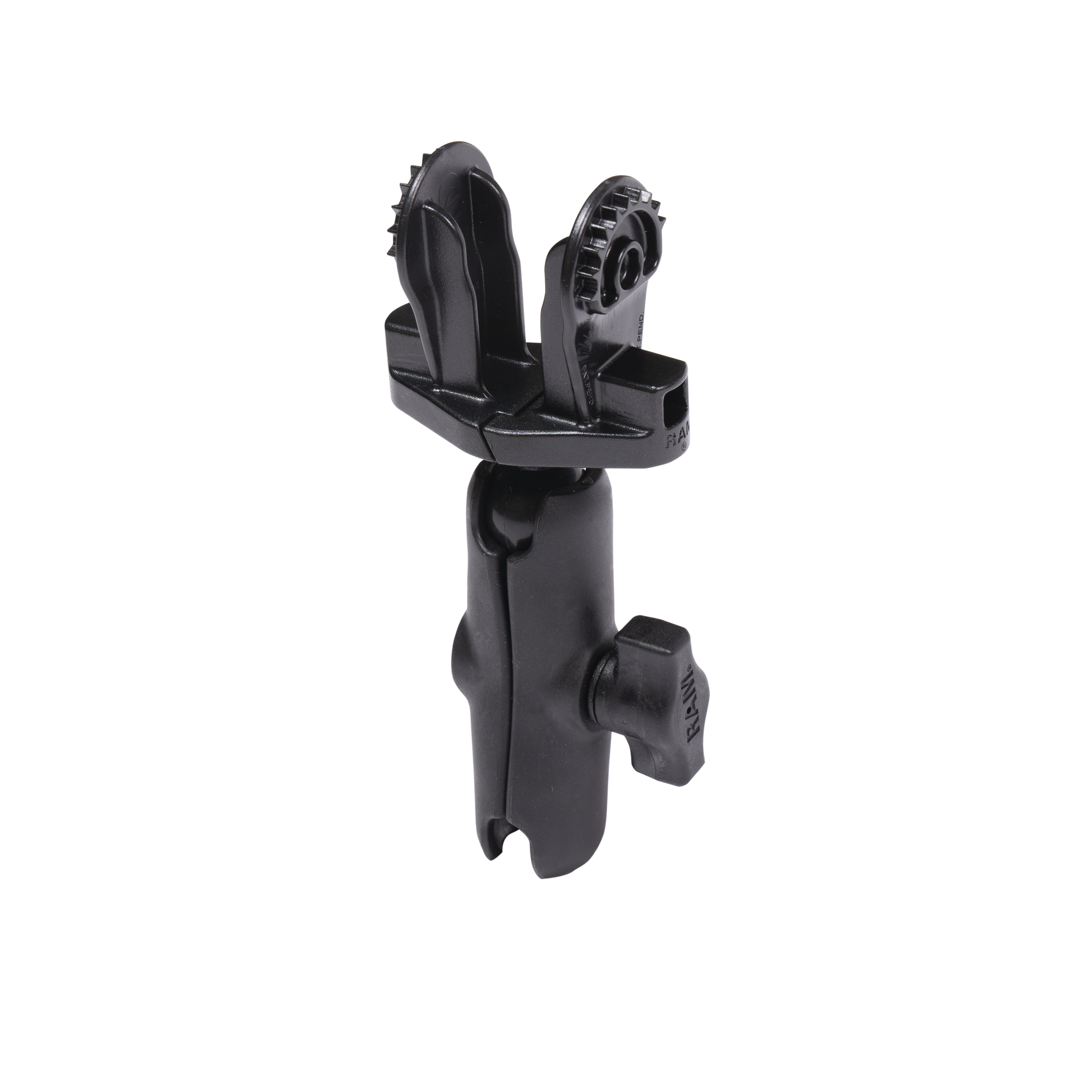

Hobie Ram Mount 1" Ball & Arm Hook2

Designed for light duty saltwater use, this B size (1") composite drill-down kit for the Lowrance Hook allows users to swap out the factory mounting solution with a RAM Mounts solution.

Simply attach the included adapter to the Lowrance Hook and you're ready to connect the double socket arm and round base featuring the AMPS hole pattern.

Made of high strength composite and powder coated marine grade aluminum, this kit is designed to keep your Hook secure and stable in rugged environments on your kayak or inflatable.

Hardware Included

• Assembly Hardware

Product Dimensions

• Overall Height: 5"

Socket-to-Socket Length

• 3"

Hole Pattern

• 4-Hole AMPS: 1.181" x 1.496"

Plate Size

• 2.5" Diameter

Ball/Socket Size

• B Size (1")

Weight Capacity

• 2 lbs

Materials

• Marine-grade aluminum
• High strength composite

Weight

• 0.5 lbs

Compatibility:

• HOOK2-4x
• HOOK2-5

For the larger Hook2 models (Hook2-7; Hook2-9; etc) check out these mounts:

• RAM-109HU (Horizontal Swing Mount)
• RAM-109VU (Vertical Swing Mount)
• RAM-D-115 (Heavy Duty Mount)
