Ultra Vision

DVM205LEDBW

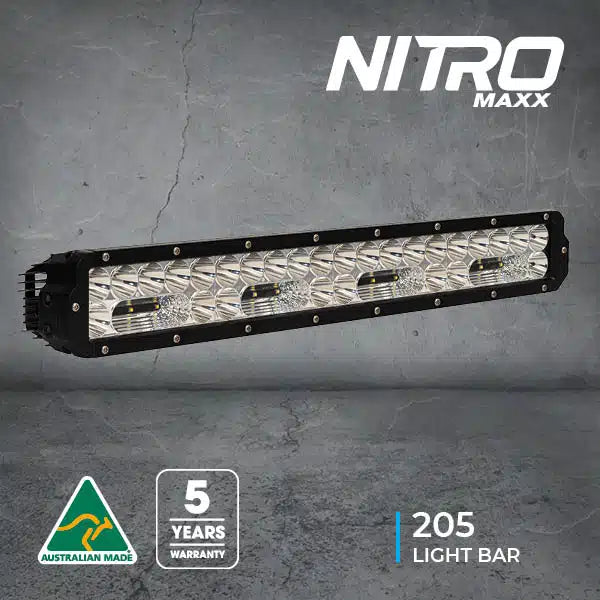

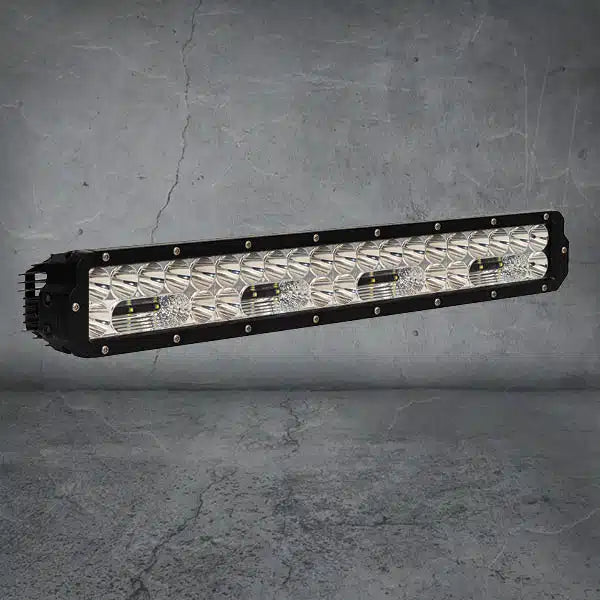

NITRO Maxx 205W 24″ LED Light bar

NITRO Maxx 205W 24″ LED Light bar

$939.00 AUD
$939.00 AUD
Sale Out of stock
Tax included. Shipping calculated at checkout.
Colour Temperature
Hi/Lo
Rim Colour

Low stock: 1 left

NITRO Maxx 205W 24-inch LED Light Bar. Made in Australia with Widr® Optic for exceptional spread. With wiring harness, anti-theft nuts, and 5-year warranty.

  • Performance you won’t believe – unrivalled distance and width outputs
  • Widr® Optic – This unique reflector delivers market leading output, achieving huge distance with excellent spread
  • Usable light – now 1300M
  • Designed and Made in Australia for the toughest environments on earth
  • Available with either 4500k or 5700k Colour Temperature
  • Base or Side Mounts Available
  • 5 Year Warranty and the option to extend by a further year
  • A wiring harness and anti-theft nuts are included free of charge
  • Includes clear protective lens covers

24-inch LED Light bar

The new Nitro Maxx range of light bars have boosted performance, with the updated 205W LED light bar delivering an increased beam distance of 70%.

The Nitro light bars have become a hugely popular addition to the Nitro Maxx range. Featuring the Widr® optic for width and a Contrl® optic for distance, the Nitro Light Bar takes performance to another level.

The Hi/Lo function provides you with an even greater amount of flexibility in a range of driving conditions.

For the 5700K Hi & Lo model light bars:

  • Both Hi-Output & Lo-Output functions utilise 5700K LED’s, achieving 170° spread of light with our patented Widr® reflector.

For the 4500K Hi & Lo model light bars:

  • The Hi-Output function utilises a combination of 4000K and 5700K LED’s (4500K combined average) which gives the perfect open road driving experience with optimal distance and a 170° spread of light.
  • The Lo-Output * feature drops the light output to 3 x 4000K LEDs utilising our patented Widr® reflector for 170° of spread. This is perfect for foggy or dusty conditions and for reducing the glare on road signs.

*Please note the Lo-Output feature doesn’t work alongside the vehicle’s low beam, it just reduces the amount of light coming out of the light bar, while the vehicle’s high beam is still on.

Both side and base mounts are available, ensuring that fitment is simple in any application.

A wiring harness and anti-theft nuts are supplied with each bar. Please specify base or side mounting at the time of ordering.

Beam Pattern

Need a Wiring Diagram?
Get One Here

205W Nitro Light Bar Specifications
Wattage 200 Watts
Light Source 40 x 5w LED's
Light Output – Raw 24,640 Lumens
Light Output – Effective 17,724 Lumens
Voltage 9-36V
Current Draw 15A
Operating Temperature -40 to 80 Deg C
Waterproof Rating IP68
Connector Type Plug 2 Pin std Deutsch
Housing 6063 T5 Aluminium
Outer Lens Construction Polycarbonate
Brackets Sliding Base / Side Mounts
Colour Temperature 4500K or 5700K
Lifespan 50,000 Hours
Dimensions 605 x 92 x 84mm
Net Weight 3.4kg
Mounting Suitable Base and Side Mount
Beam Types Combo and Widr
Warranty 5 Years
Harness Included Yes - DV12HD
Part Number
Widr®, Black Rim, 4500K DVM205LEDBW4
Widr®, Black Rim, 5700K DVM205LEDBW
Widr®, Chrome Rim, 5700K DVM205LEDBW-C
Widr®, Black Rim, 4500K, Hi/Lo DVM205LEDBW4/3
Widr®, Black Rim, 5700K, Hi/Lo DVM205LEDBW/3



Colour Temperature

4500k, 5700k
Hi/Lo

Yes, No
Rim Colour

Black, Chrome
Mounting Type

Base Mounts, Side Mounts



Please specify the mounting type when ordering: either Base Mounts or Side Mounts.
