Dual USB to suit Ford Ranger Switch Fascia

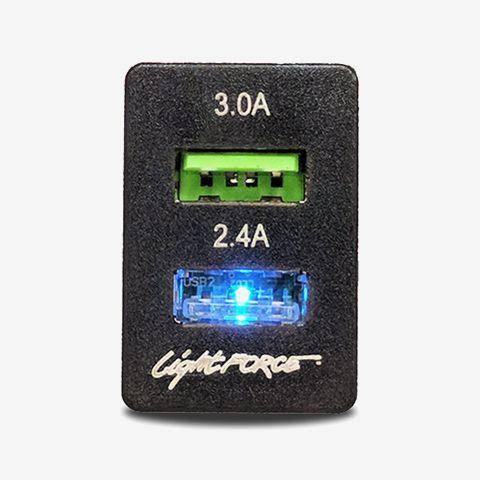

LED Illuminated, Panel Mounted Dual USB Socket

Features:

• Independent 2.4 amp and 3.0 amp outputs that are fully regulated and surge protected.
• Independent illumination that is fully dimmable via existing dash light circuit, separate from the main input power, so illumination is not always on; a unique feature of our product.
• All cables are over 1.5 metres long, USB power input (red wire) is fitted with a micro2 fuse tap for direct fitment to the fuse box. Negative cable (black wire) is pre-terminated with a ring terminal and independent LED illumination (blue wire) for connection to existing dash light circuit.

Specifications:

• Independent 2.4 amp and 3.0 amp outlets
• 5.1 Volts regulated output
• 1.5 Metre long cables
• 5 Amp micro2 fuse tap for dual USB outlets (fitted)
• Independent blue LED illumination
• Matt black face

Installation:

Please note - this USB charger only fits the Lightforce Ford Ranger Fascia (CBFASCIA) in the upper middle switch location.

• Red wire – USB positive wire can be connected in the following ways. To an ignition source so the unit is only powered once the vehicle is on; or to an always on source so the unit is active continuously.
• Blue wire – Positive wire connects to the existing dash light circuit so LED illumination is only active once headlights are on.
• Black wire – Fit to vehicles negative (earth) simply, connect ring terminal to an existing M6 bolt that is grounded.

NOTE: All vehicle accessories should be wired through a fuse if the included harness is modified during installation ensure a fuse is used as close to the input source as possible, not exceeding 5 amps.
