Carbon Offroad


Carbon 3.0k 3000lb Utility Trailer ATV Quad Bike Electric Winch

Carbon 3.0k 3000lb Utility Trailer ATV Quad Bike Electric Winch

Regular price $299.00 AUD
Regular price Sale price $299.00 AUD
Sale Out of stock
Tax included. Shipping calculated at checkout.

Out of stock

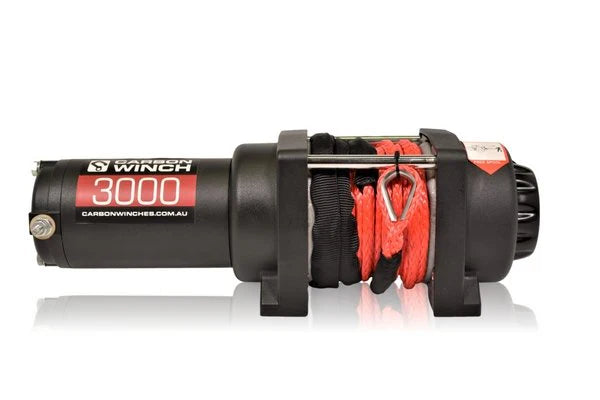

The Carbon CW-3U 3000lb Light-Duty Trailer and Utility Winch

The Carbon CW-3U 3.0K 3000lb winch may be a small winch, but it's one big value when you consider the reliability and the overall quality. Built to handle lighter loads ( to 3,000lb). This winch is overflowing with upgraded features, including a hand remote and wireless remote control to control power in/power-out functions and tie rods for added stability.




Part number: CW-3U

Rated line pull:  3000lbs, (1360kg) single-line

Motor: 12V DC 1.5HP Permanent Magnet motor

Remote Control: Remote Switch, 12� (3.7m) lead.

Wireless Remote Control: Included

Geartrain: Single Stage Planetary.

Gear Ratio: 153:1

Clutch (freespooling): Split Ring Gear

Brake: Self-locking gear train ( Rated Load Holding

Drum Diameter/Length: 1.26��/2.87�� (32mm/73mm)

Synthetic  Rope: 43�, 3/16�� diameter ( 13m, 4.8 diameter)

Fairlead: Roller

Mounting Bolt Pattern: 3.0�� x 4.87�� ( 76mm x 124mm )

Winch Dimensions ( L x W x H ): 12.2'' x 5.0'' x 5.0'' (310127 x 127mm )

Packing Dimensions( L x W x H ): 15.7��7.9'' x 8.7'' ( 400 x 200 x 220mm )

Shipping Weight: 10kg ( 22lbs)

Warranty : 1 year

Shipping & Returns


Length: 400 mm

Width: 200 mm

Height: 220 mm
