Adding a light bar or a set of driving lights to a modern vehicle has never been easier. The CANM8 CANNECT HIGHBEAM is a single-output CAN Bus interface designed to detect high beam activity on compatible CAN Bus vehicles and convert that signal into a low-current 12V output for a relay-triggered driving light circuit. It is ideal for vehicles that do not have a traditional analogue 12V high beam wire available at the headlight.

How it works

By connecting into the vehicle's digital CAN network, the CANM8 CANNECT HIGHBEAM reads high beam activity and provides a 12V output signal when high beam is active. The output is intended to trigger a relay-based auxiliary lighting circuit, making it a neat solution for adding aftermarket driving lights or LED light bars to modern electronically controlled vehicles. The unit provides a 12V, 1A high beam output.

What is included

• 1 x vehicle interface
• 1 x bare wire harness
• Vehicle-specific instructions via the CANM8 / CANNECT app or module QR code, depending on supplier workflow

Installation details

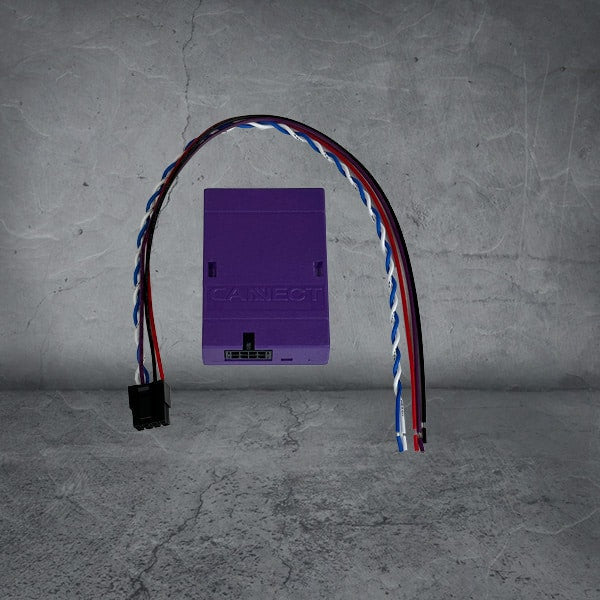

The interface features a mini wiring connector that unplugs for easier installation. Wiring connections include CAN Hi, CAN Lo, power, earth, and a dedicated high beam output wire. One reseller specifies a permanent fused 12V supply with a 5A fuse required, while another describes a switched 12V supply, so it is best to follow the vehicle-specific CANM8 instructions supplied for the module you receive. Wiring colours are listed as: White - CAN Hi, Blue - CAN Lo, Black - 0V / earth, Red - 12V supply, and Purple - 12V high beam output.

LED status indicators

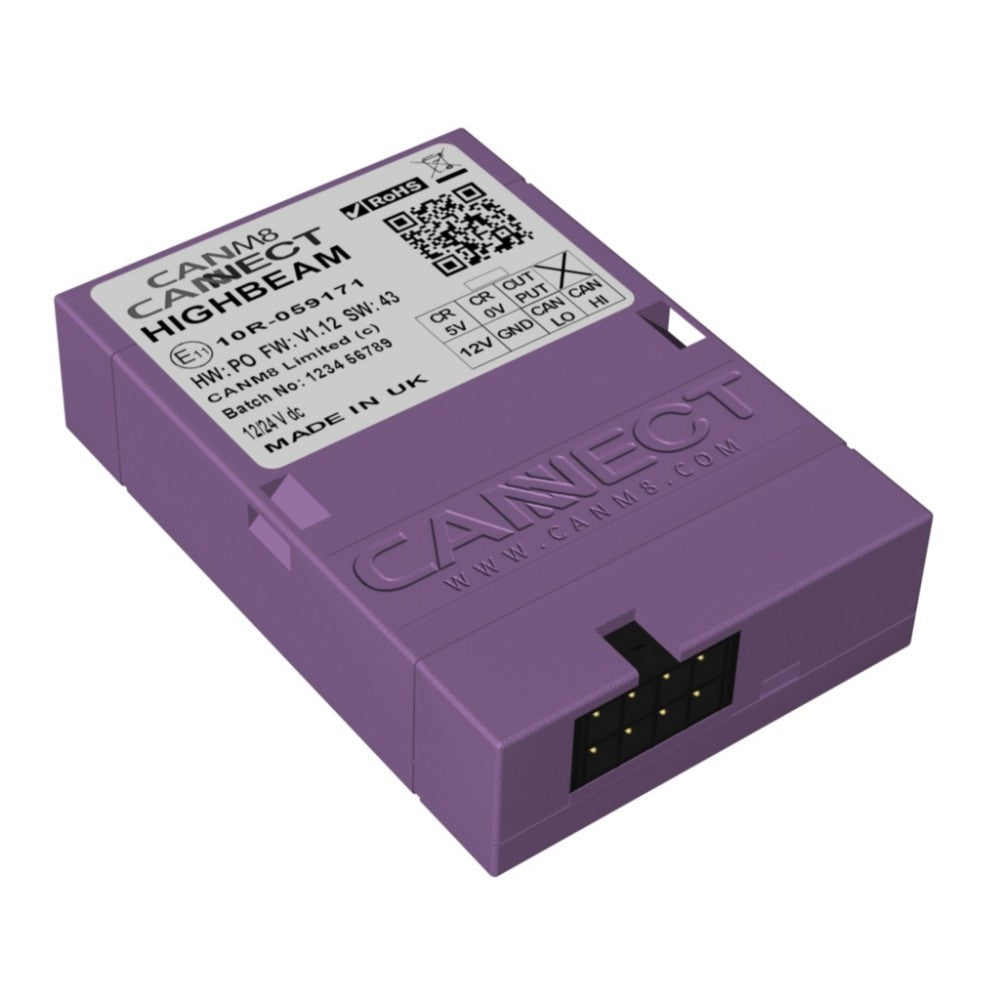

The built-in multi-function status LED helps confirm correct installation and system recognition:

• Flashing red - searching for CAN information
• Solid red - CAN data received, but vehicle type not identified
• Solid green - CAN data received, and vehicle type recognised
• Flashing green - vehicle speed detected

Important compatibility notes

• This interface is not universal and is only suitable for listed compatible vehicles.
• It is not designed to directly drive a light bar or driving lights. A separate lighting wiring harness and relay setup is still required, and this is not included.
• Some vehicles may not retain auto headlight dimming, although this is not confirmed across all models.
• Vehicle-specific instructions are accessed via the CANM8 app or the QR code on the module. One supplier notes a download limit of 3 instruction downloads per module.

Special vehicle notes

Known software and application notes listed by Australian resellers include:

• 300 Series LandCruiser - interface must be SW:89 or above
• 2018-2023 Toyota Prado 150 Series - use the 2018-on Toyota LandCruiser installation manual
• Late 2021-on Subaru Outback - interface must be SW:90 to 96 or 101 and above, with one source listing 112 and above for later compatibility guidance
• 2022-on Mitsubishi Outlander - interface must be SW:92 or above
• 2022-on Subaru Crosstrek (G6X) and WRX (VB/VN) - require an alternate software file
• One reseller notes that 2021-on Nissan X-Trail (T33) and some 2021-on Mitsubishi Outlander applications were not compatible with SW111 until further confirmation

Vehicle compatibility

The CANM8 CANNECT HIGHBEAM is listed across a broad range of compatible makes and models, including Alfa Romeo, Audi, BMW, Chrysler, Citroen, Ford, Jeep, Land Rover, Mercedes-Benz, Mitsubishi, Nissan, Peugeot, Renault, Seat, Subaru, Toyota, Volkswagen, and more. Fitment is vehicle-specific, so compatibility should always be checked before purchase.
