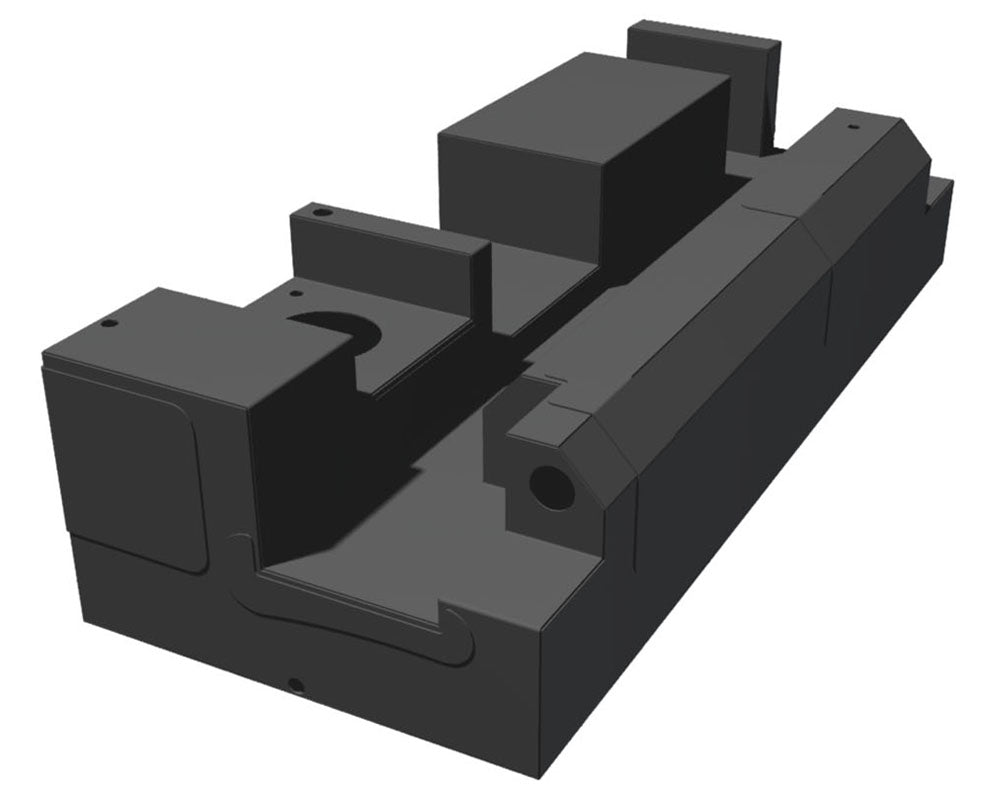

Avida Esperance Iveco 50C17

Specifications

Part Number: IVDR9
tank_type: REPLACEMENT
capacity: 160
filler_point: STANDARD
fuel_guage: NULL
fuel_supply_method: STANDARD
tank_location: REPLACES VEHICLES STANDARD 100LT TANK
fit_hours: 4

Features

• Tapered approach angle to reduce frontal impact and improve ramp over clearance
• Longitudinal and lateral baffling system to prevent fuel slosh and to
  strengthen tank structure
• Gusseted brackets with double-thickness pads to spread tank mounting loads
• Fuel pump sender flange designed to re-use the vehicle’s original equipment
• Swirl pot designed to carrel fuel around the pick-up point
• Roll over check valve and expansion box for fuel expansion and venting
• Fast fill breather for rapid filling and to reduce bowser shut-off
• Filler tube, connects to vehicle's original filling point
• Cushion clamps to retain fuel lines to prevent damage and kinking
• Magnetic drain plug, horizontal and flush mounted to prevent damage

Replacement System

Replacement Long-range tanks are designed to replace the vehicle's standard fuel tank with an increased fuel capacity. The tank is a simple bolt-in solution to increase your vehicle's driving range. On the current model dual cab ute range the fuel capacity increase is around 100%. Replacement fuel tanks are designed to minimise vehicle modifications utilising the standard fuel gauge, pump assembly and fill point for a simple installation. All Brown Davis fuel tanks come with a flush-mounted drain plug for easy draining in the event of contaminated fuel. The tanks come with all parts and hardware supplied.

Aluminised Steel Long Range Fuel Tanks

Brown Davis Aluminised Steel long-range fuel tanks are constructed from 2mm aluminium-coated cold rolled steel to ensure maximum strength and durability. This gauge of steel is sufficiently resistant to impact damage that additional tank guards are not necessary. The aluminium coating on the specific steel used by Brown Davis offers the best of both worlds with the strength of steel and the anti-corrosion properties of aluminium.
