Air Compressor Bracket – Ford Ranger/Everest Next Gen – Engine Bay

TLR684001

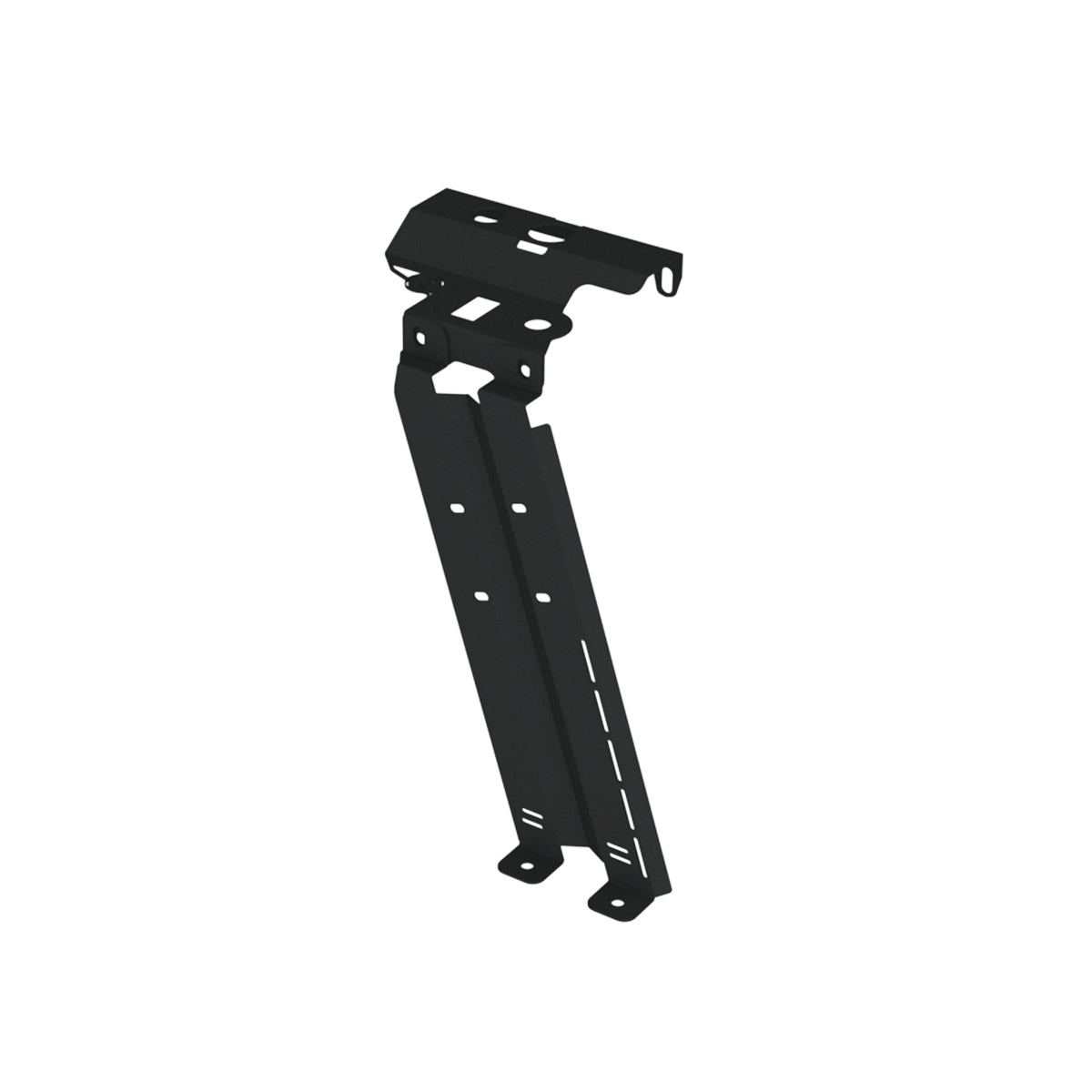

Air Compressor Bracket designed to suit fitment of the ARB Single Brushless OR Brushed Air Compressor into a Ford Next Gen series front engine bay area including the Ranger and Everest. Does not fit Ranger Raptor, Ad-Blue Bi-Turbo or Superduty variants.

Part Number: TLR684001

This TLR Products Air Compressor Bracket is designed to suit the Ford Next Gen series of vehicles including all Ranger and Everest variants with V6 or 4 Cylinder Engines. Does not fit Ranger Raptor, Ad-Blue Bi-Turbo or Superduty variants.

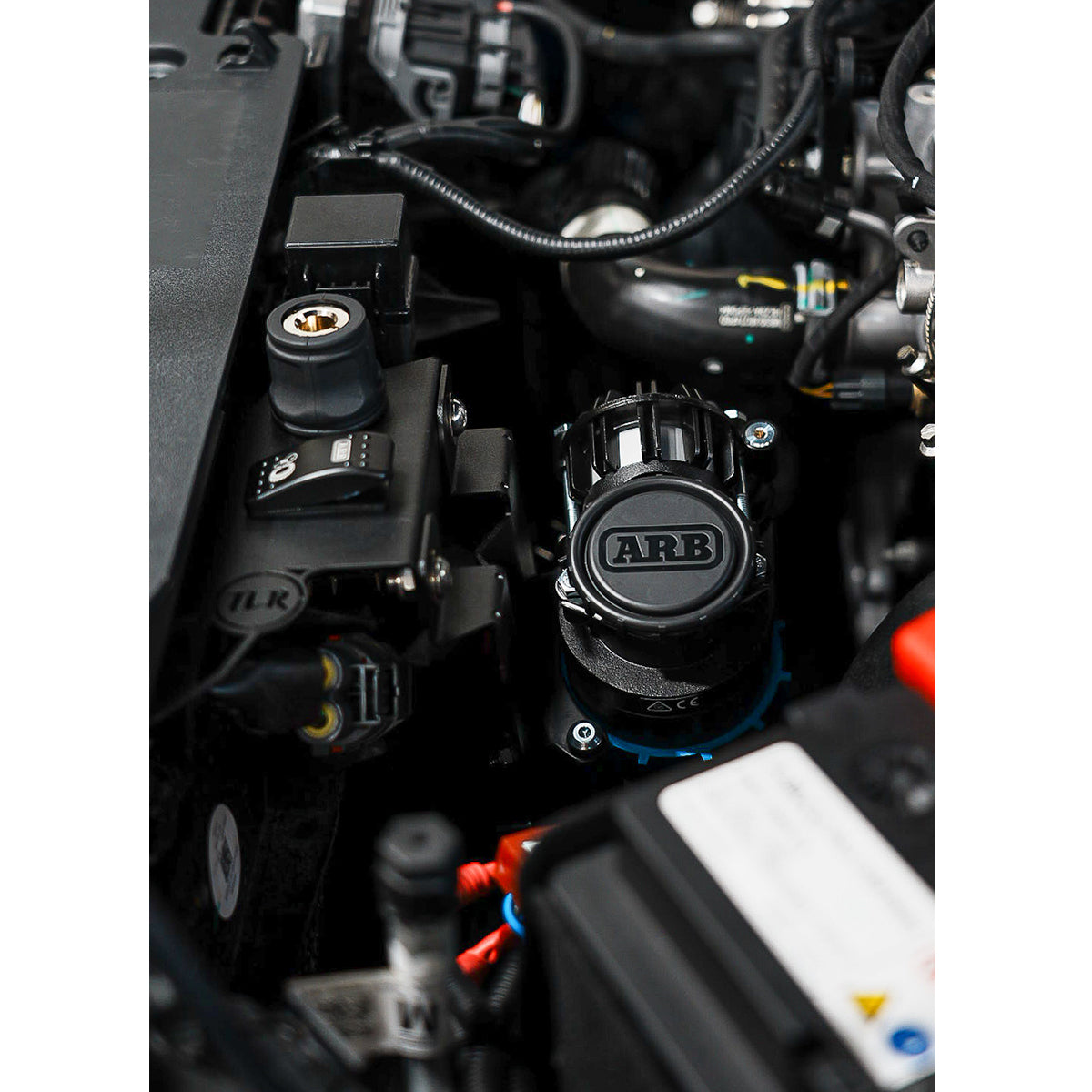

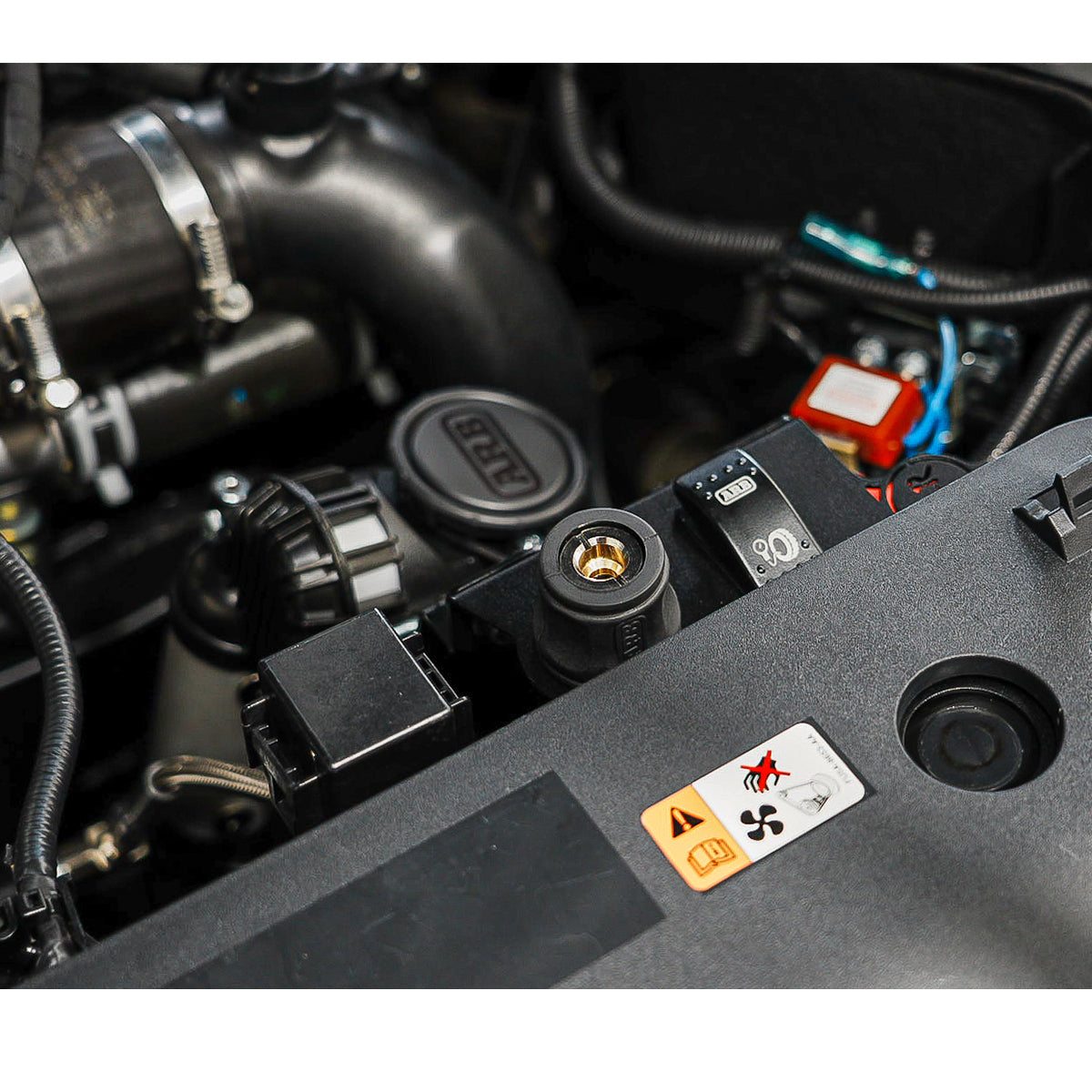

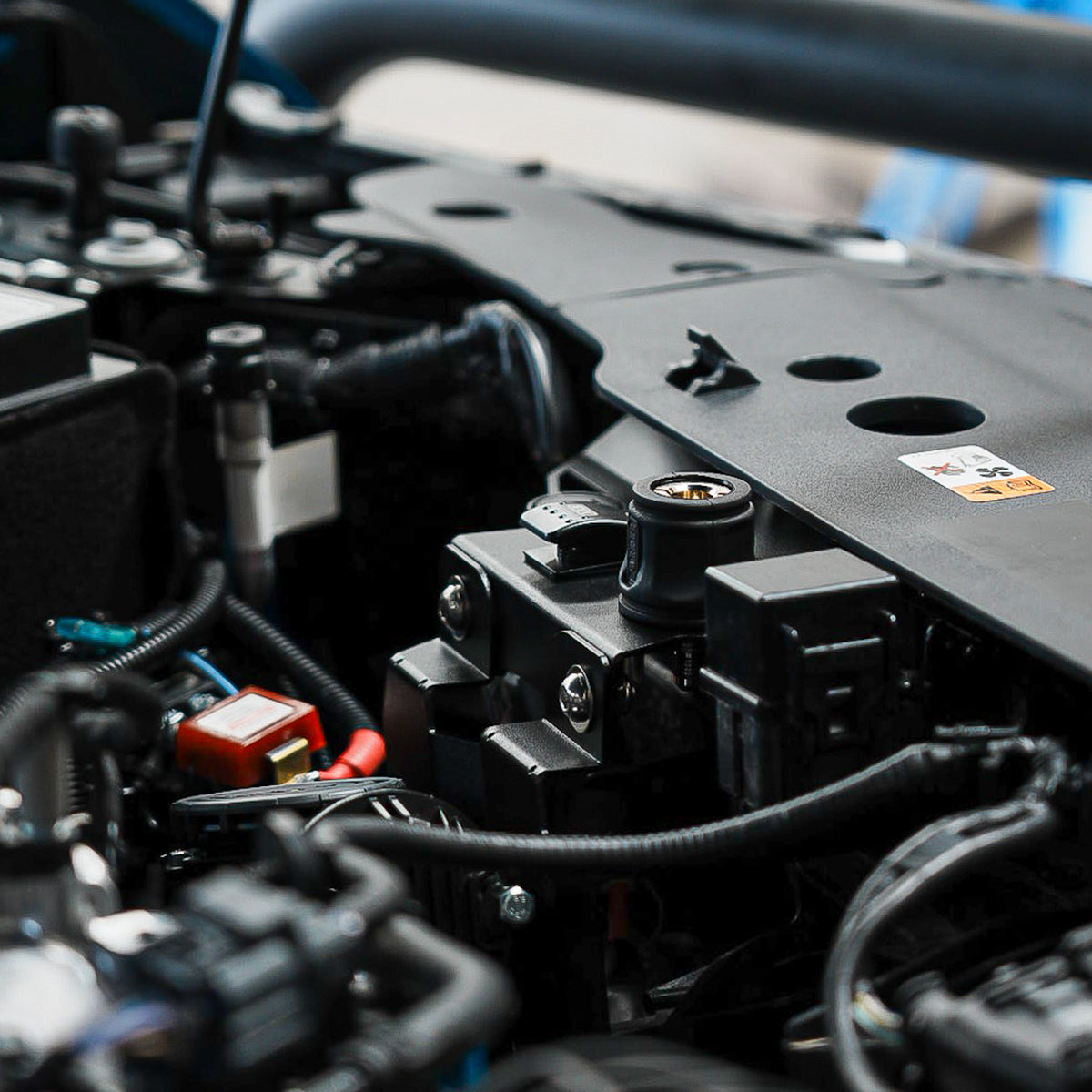

The mounting bracket seamlessly fits the ARB Single Brushless OR Brushed Air Compressor in the open space between the engine and radiator support panel. It features dedicated provisions for securely mounting both the Air Coupling and Electrical Switch along the top panel, ensuring easy access for operation and convenience.

This bracket set includes a comprehensive kit for installing all bracket components, although the additional ARB components listed below are recommended for a complete operational compressor installation:

• 1x ARB Single Air Compressor (CKMA12)
• 1x ARB Pump up Kit (171302V2)
• 1x ARB 45 Degree Elbow JIC4 (0740109)
• 1x ARB 1/4 NPT Adapter (0740101)
• 1x ARB Air Hose 0.2m (0740200)
• 1x ARB Air Coupling JIC4 (0740111)

This Bracket is designed to be compatible with the ARB Dual battery system (PN#4340130) including the BCDC Mounting Bracket.NOTE: Not Compatible with Ford Ranger SuperDuty.

Features:

• Versatile Compatibility - Suits both ARB Brushless OR Brushed, Single Air Compressor models.
• Space Saving Design - Fits in the open space between the radiator support panel and engine.
• Durable Construction - Laser cut from zinc-coated 2.00mm steel.
• Corrosion Resistant Finish - Powder coated in a black textured finish for rust protection.
• Comprehensive Kit - Electrical Switch and Coupling mount included.

Includes:

• TLR Products Compressor Bracket set.
• Fitting kit including all hardware and fasteners required for fitment.

Notes:

• Weight: 1.1 kg
• Dimensions: 470 x 150 x 70 mm
• Warranty: 3 years
• Fitting time: 30 mins
• Compressor and Air fittings sold separately
• Does not fit Ranger Raptor variant.
• Compatible with the ARB Dual battery system (PN#4340130) including the BCDC Mounting Bracket.

DOWNLOAD BROCHURE HERE.

DOWNLOAD FITTING INSTRUCTIONS HERE.

TLR Products is Australian owned, with all manufactured products designed and made in Newcastle, NSW.
