Stedi

LEDMOTO-CARBON-7BLK

Carbon 7 Inch LED Headlight - Black (5700k)

Carbon 7 Inch LED Headlight - Black (5700k)

$199.00 AUD
$199.00 AUD
Sale Out of stock
Tax included. Shipping calculated at checkout.

BACKORDER

FINALLY, A WORTHY 7" LED HEADLAMP.

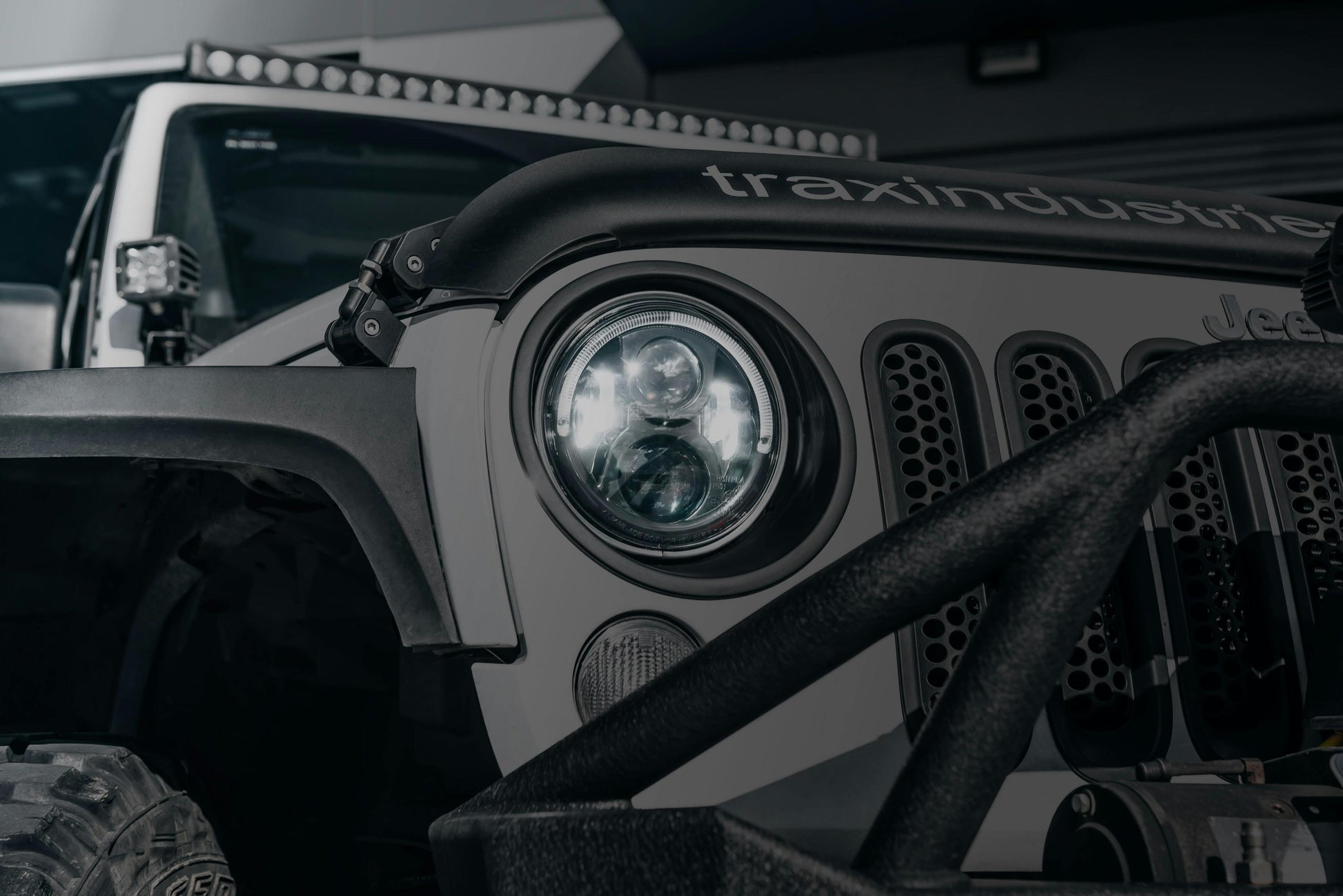

You've either heard about or tried the other disaster 7" LED kits on the market. Our Carbon LED Headlight unit is ADR Compliant and features a proper RHD beam geometry. Our CARBON is a complete LED unit that will replace your existing 7" factory headlight unit. Complete with separate High & Low beams as well as a half halo park light, the CARBON is your all-in-one upgrade solution for your motorbike or 4x4 vehicle that runs 7" headlights (list of known compatible models in the description).

PERFORMANCE THAT SURPASSES THE VERY BEST.

The low beam is full of volume and throws out to 141m at 1 Lux. The high beam throws out to 235m at the 1 Lux which is better than many auxiliary lights on the market. The integrated optional halo park light can be wired to ignition or to a dedicated switch to illuminate to offer day-time safety. Anti-Flicker technology for an effortless install.

ADR COMPLIANT.

The CARBON falls within the parameters of ADR making it a 100% legal LED driving light upgrade. No wasting time checking whether or not your vehicle meets the guidelines for retrofitting LED lights, from the get-go you're all set.

The nitty
gritty.

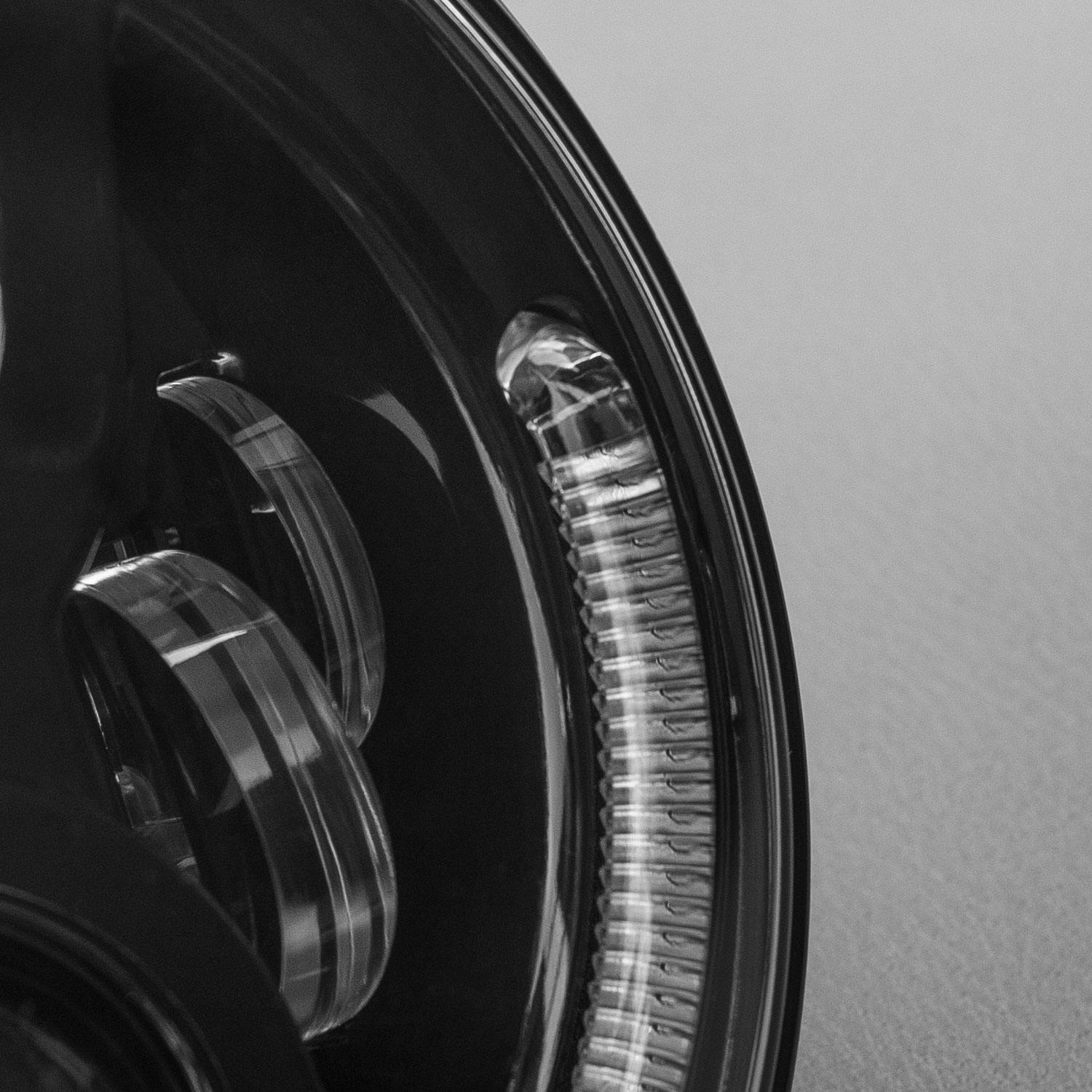

Our CARBON 7 Inch LED Driving Lights should be the first step when improving your motorcycles light output. Complete with High and Low beam as well as a half LED halo ring park light, the CARBON 7"  is the perfect replacement for your existing headlight.

KEY PERFORMANCE METRICS

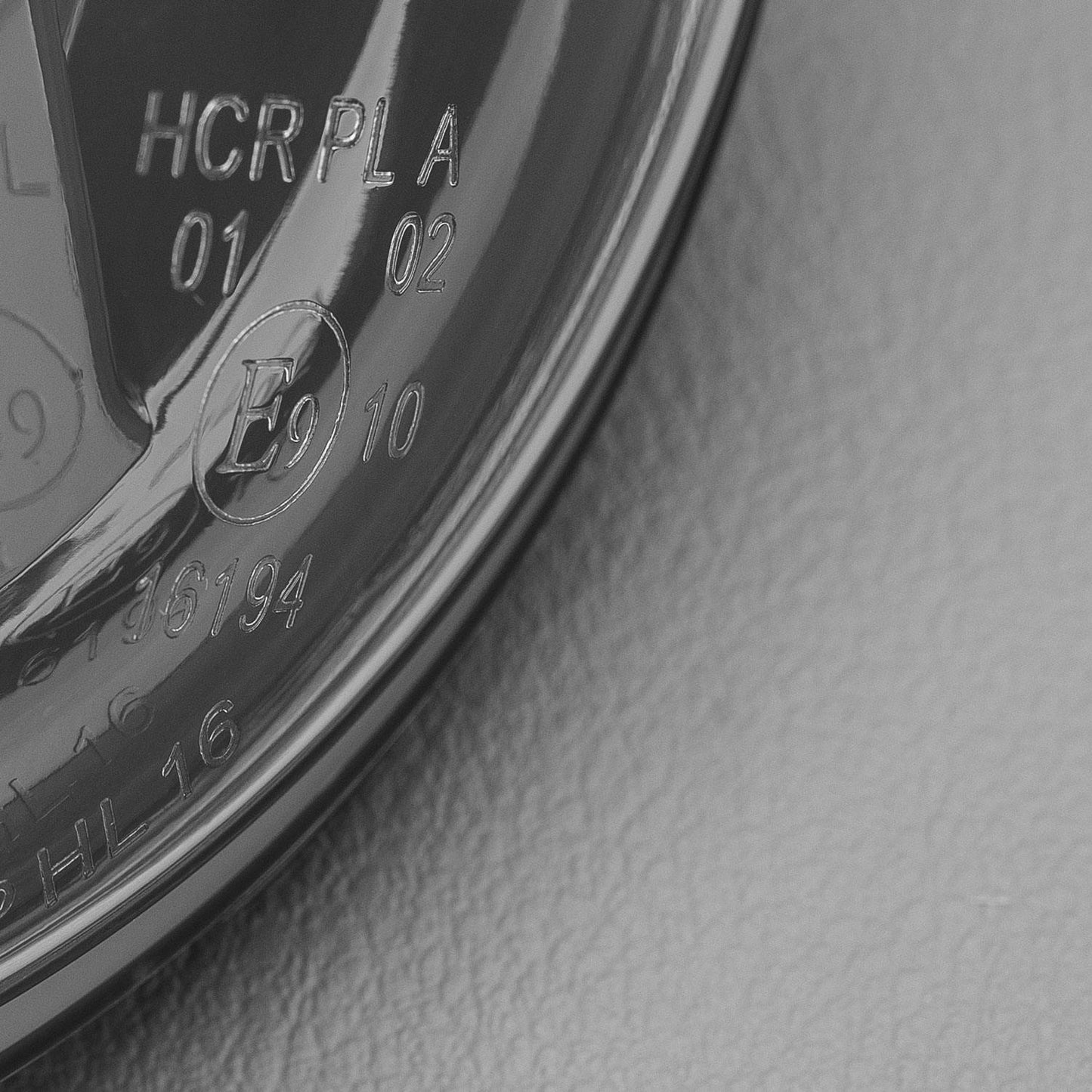

  • ADR Approved E-Mark CE
  • Proper Right Hand Drive Beam Geometry

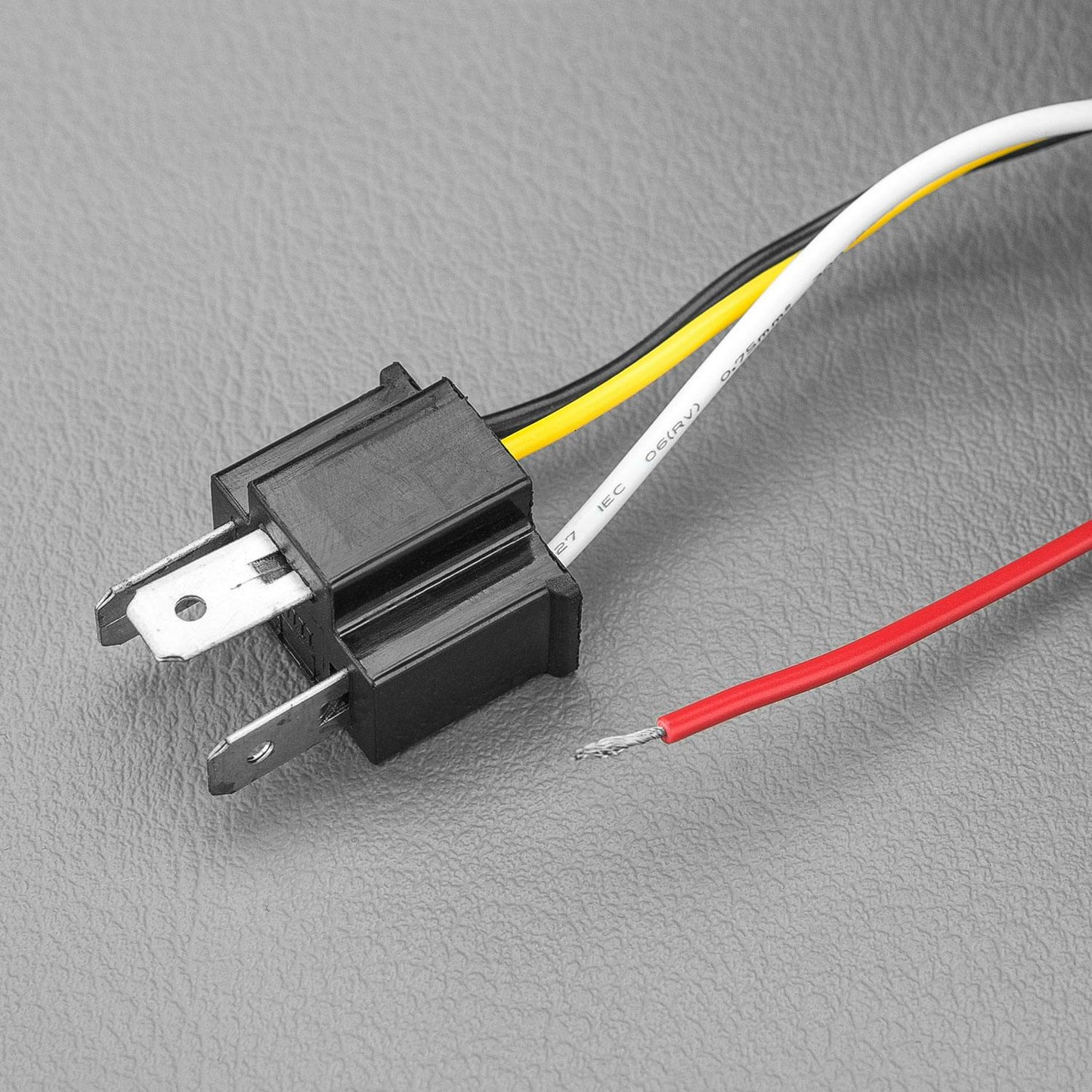

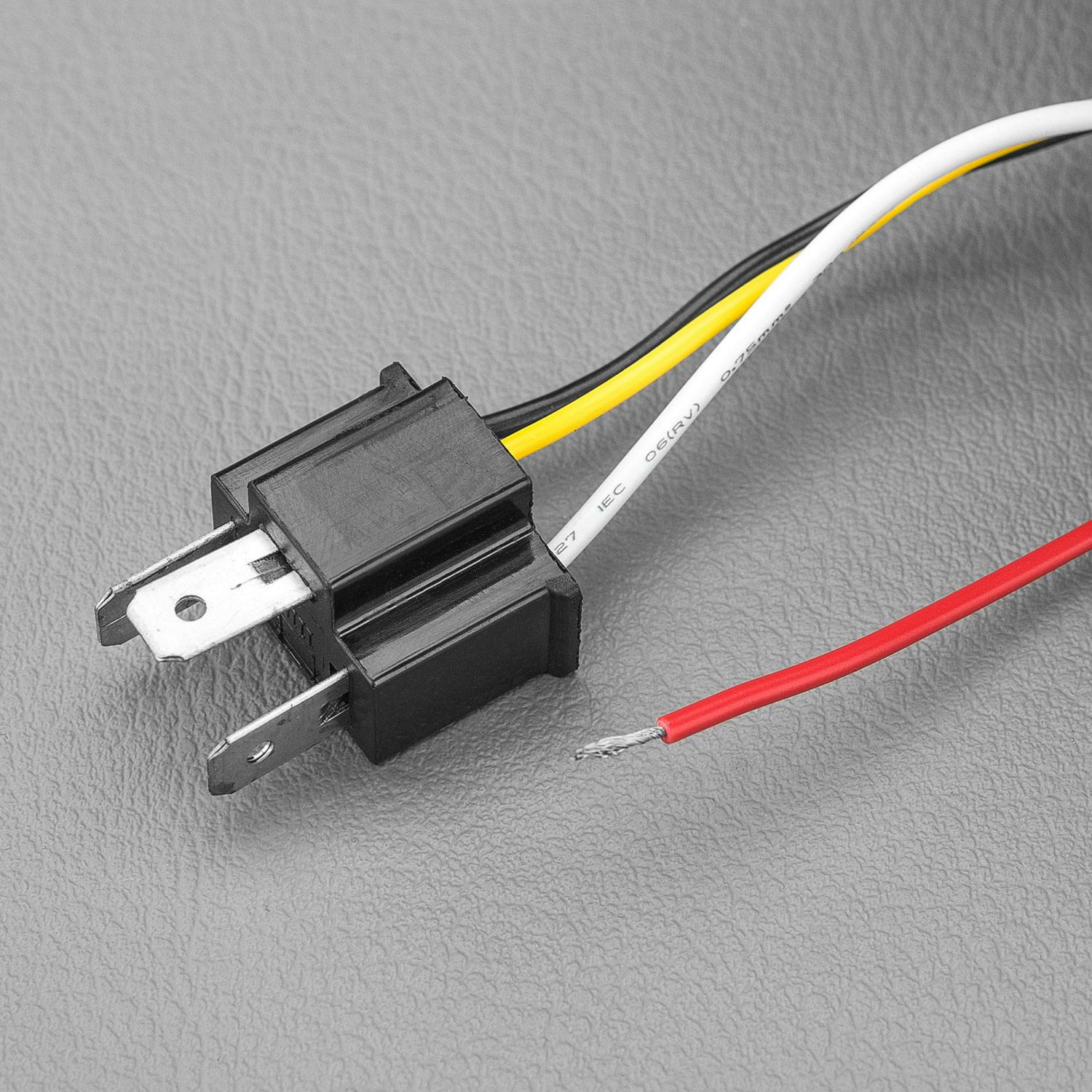

  • H4 Adaptor
  • High Beam 1 Lux @ 235m
  • Low Beam 1 Lux @ 141m

    • PERFORMANCE BUILD QUALITY

    • Anodized Polyester Powdercoat
    • Lexan Polycarbonate (PC) Lens refractor

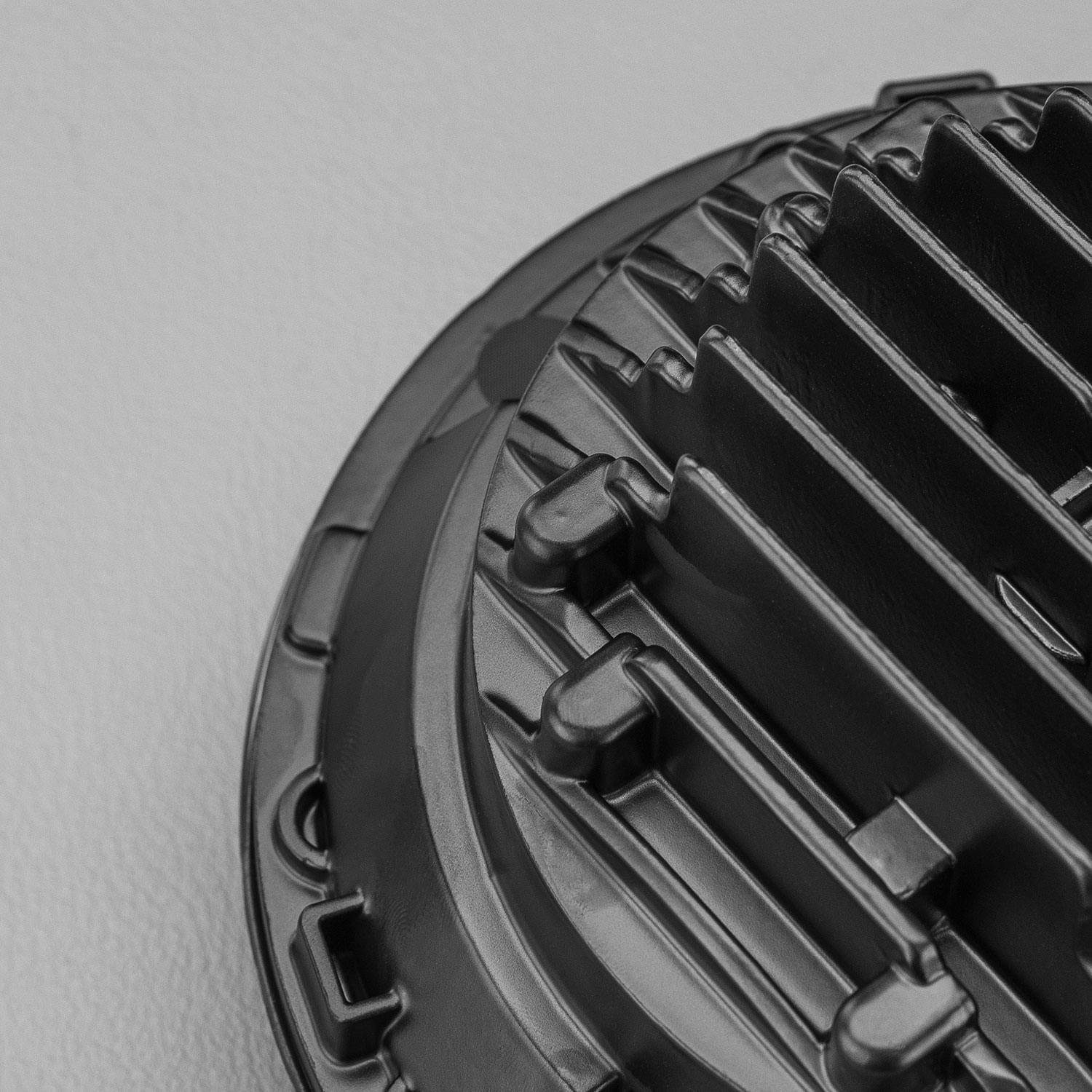

    • Die-cast aluminium alloy (ADC12) Heat-Sink
    • IP67 | Ingress Protection
    • Shock Proof, Waterproof and UV Shielded
    • Protected against Reverse Polarity and Voltage / Current surges
    • Warranty | 2 Years

    COMPATIBLE MODELS:

    • 1955-1983 Jeep CJ-5
    • 1976-1986 Jeep CJ-7
    • 1981-1985 Jeep CJ-8
    • 1997-2006 Jeep Wrangler (TJ)
    • 2007-2015 Jeep Wrangler 2-Door (JK)
    • 2007-2015 Jeep Wrangler Unlimited 4-Door (JK)
    • 1982 - 1991 Mitsubishi Pajero (L040)
    • Land Rover Defender
    • 70 Series Toyota Landcruiser with round headlamp (Needs additional H4 CANBUS to resolve negative switching)
    • 60 Series Toyota Landcruiser with round headlamp (Needs additional H4 CANBUS to resolve negative switching)
    • Toyota FJ-40/45/47 (Needs additional H4 CANBUS to resolve negative switching)
    • GQ Patrol
    • Harley Davidson Motorcycles
    • Mercedes Benz G Wagon
    • Kenworth Trucks with 7 inch round headlight

    Tech Specs

    LED High Beam: 2 x 10w XML-2 LEDLow Beam: 2 x 15w LEDPark Light: 2 x 1.5w Osram
    RAW LUMENS High Beam: 1800LmLow Beam: 1250LmPark Light: 150Lm
    AMP DRAW High Beam: 2.4a @ 13.6vLow Beam: 1.6a @ 13.6vPark Light: 0.2a @ 13.6v
    LIFESPAN 50,000 Hours
    INGRESS PROTECTION IP67
    OPERATING TEMPERATURE -30°C~+60°C
    LENS MATERIAL LEXAN Polycarbonate
    COLOUR TEMP 5700K
    VOLTAGE COMPATIBILITY 12v & 24v
    PEAK BEAM DISTANCE @ 1 LUX High Beam: 235mLow Beam: 141mPark Light: 8m
    WEIGHT (each) 1.140kg each
    DROP IN REPLACEMENT FOR #6014, 6015, 6016, H6024 and Par 56 headlamp designs
    ADR COMPLIANCE ADR 46/00ADR 49/00

    What's Included

    • 1 x 7 inch STEDI CARBON CHARCOAL LED Headlight

    Shipping & Returns

    Refund Policy

    Shipping Policy

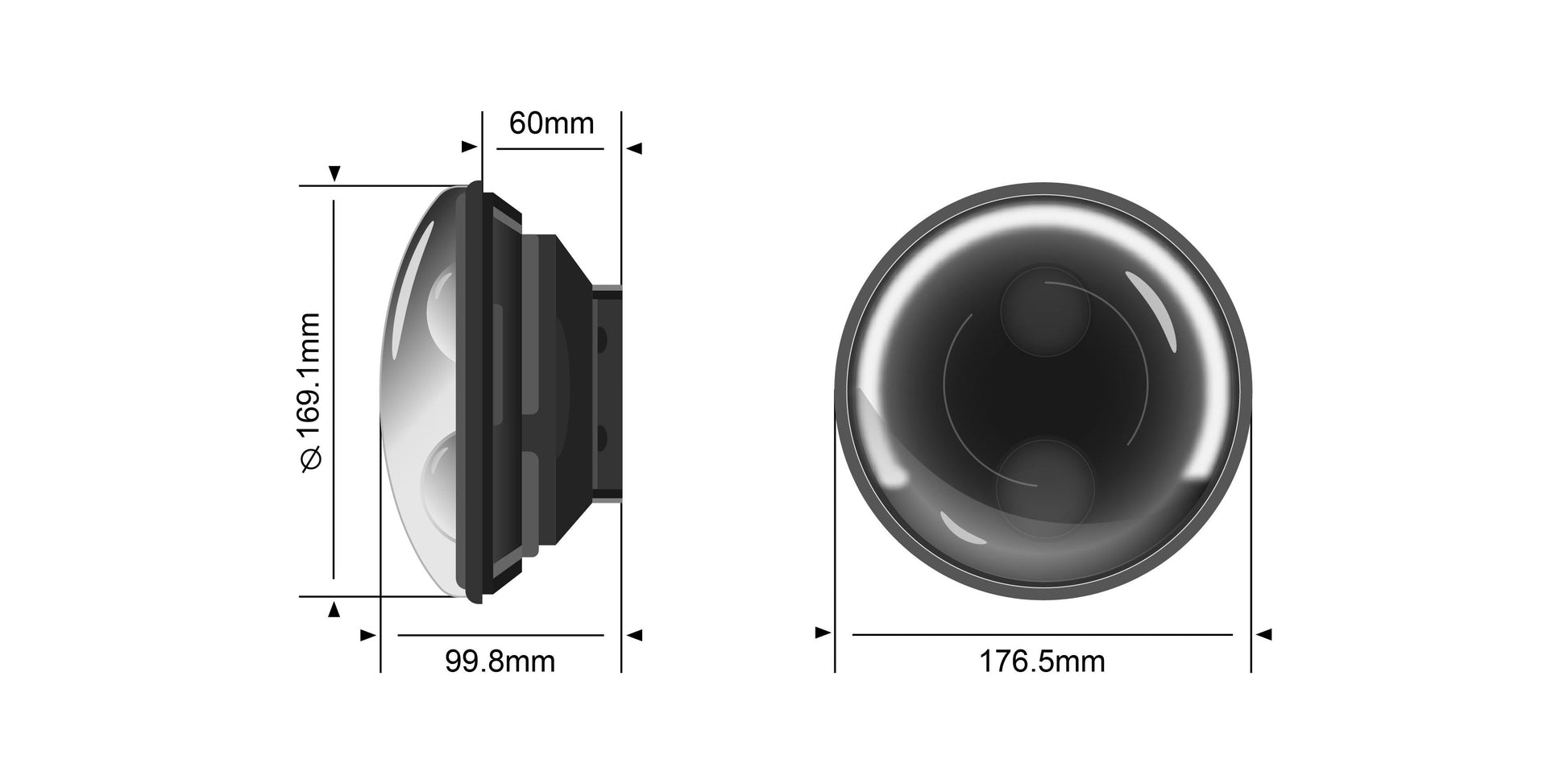

    Dimensions

    Length:

    Width:

    Height:
