Stedi

LEDST4K-42-80L

42 inch ST4K 80 LED Double Row Light Bar

42 inch ST4K 80 LED Double Row Light Bar

$419.00 AUD
$419.00 AUD
Sale Out of stock
Tax included. Shipping calculated at checkout.

BACKORDER

PINNACLE OF PERFORMANCE

By harnessing the power of PURE Drive™ technology, our range of STEDI ST4Ks are made to take full advantage of the input power, with 97% going straight to the LEDs.

AN ENVIABLE PEDIGREE

The STEDI ST4K has been founded on the STEDI TYPE X pedigree; the exemplar of high-performing Driving Lights. With the might of 80 x OSRAM’s® OSLON® LEDs, the ST4K 42 Inch LED Light Bar will not shy away from the ability to be the perfect all-rounder for any situation.

The nitty
gritty.

PERFORMANCE THAT LETS YOU TURN THE SUN BACK ON

  • STEDI ST4K-80 features 80 of OSRAM’s® finest OSLON® LED, selected for its high luminous flux and perfectly match optical properties.

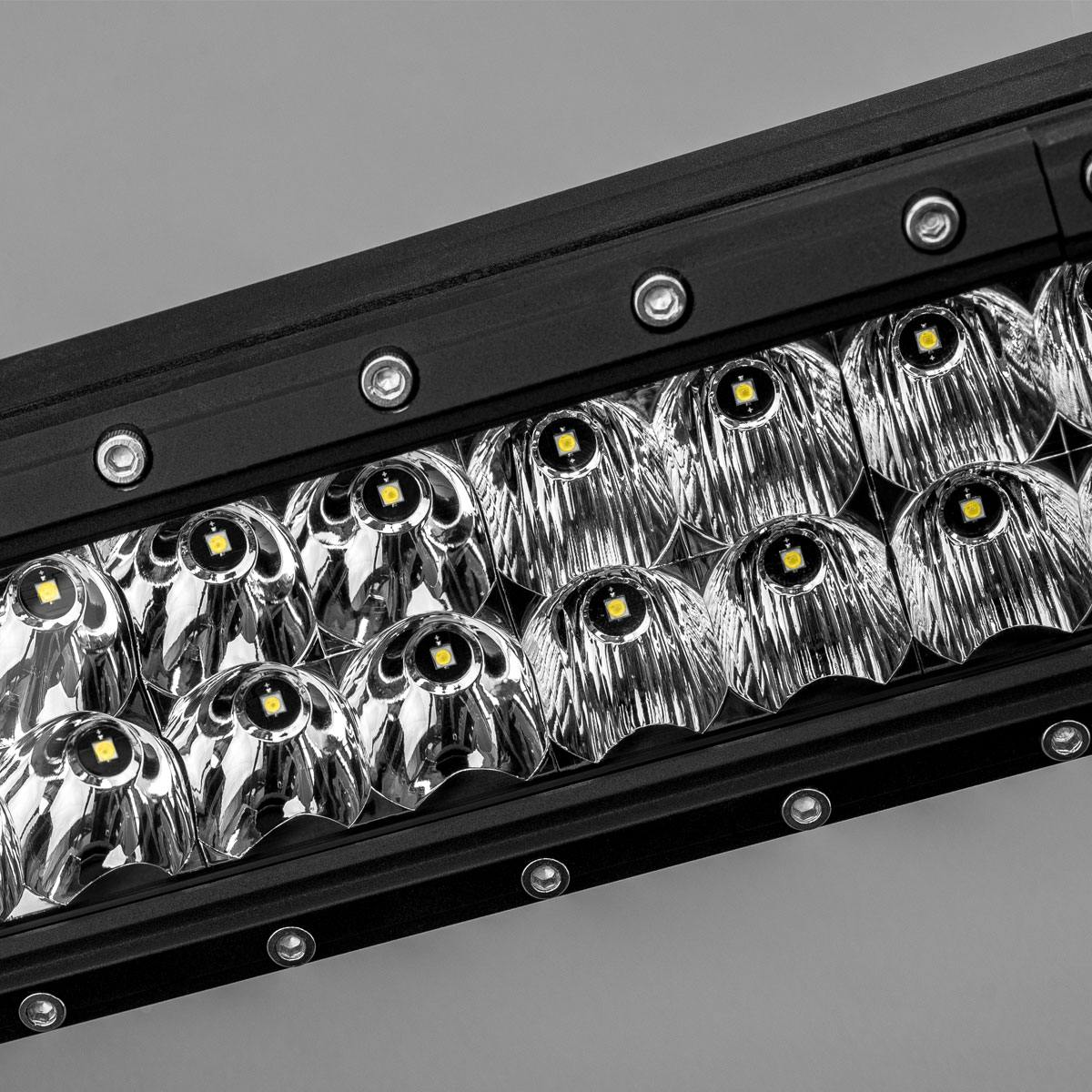

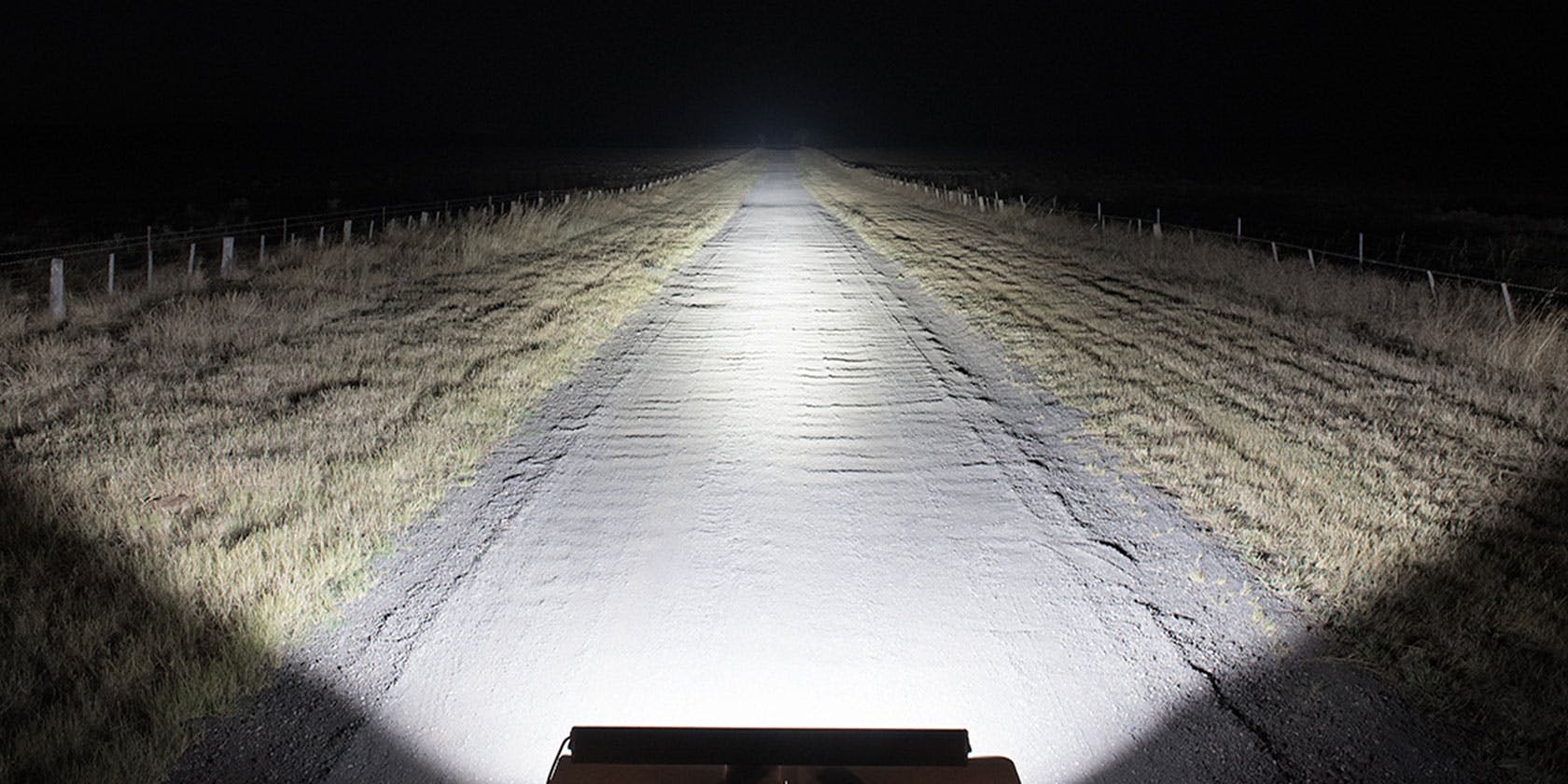

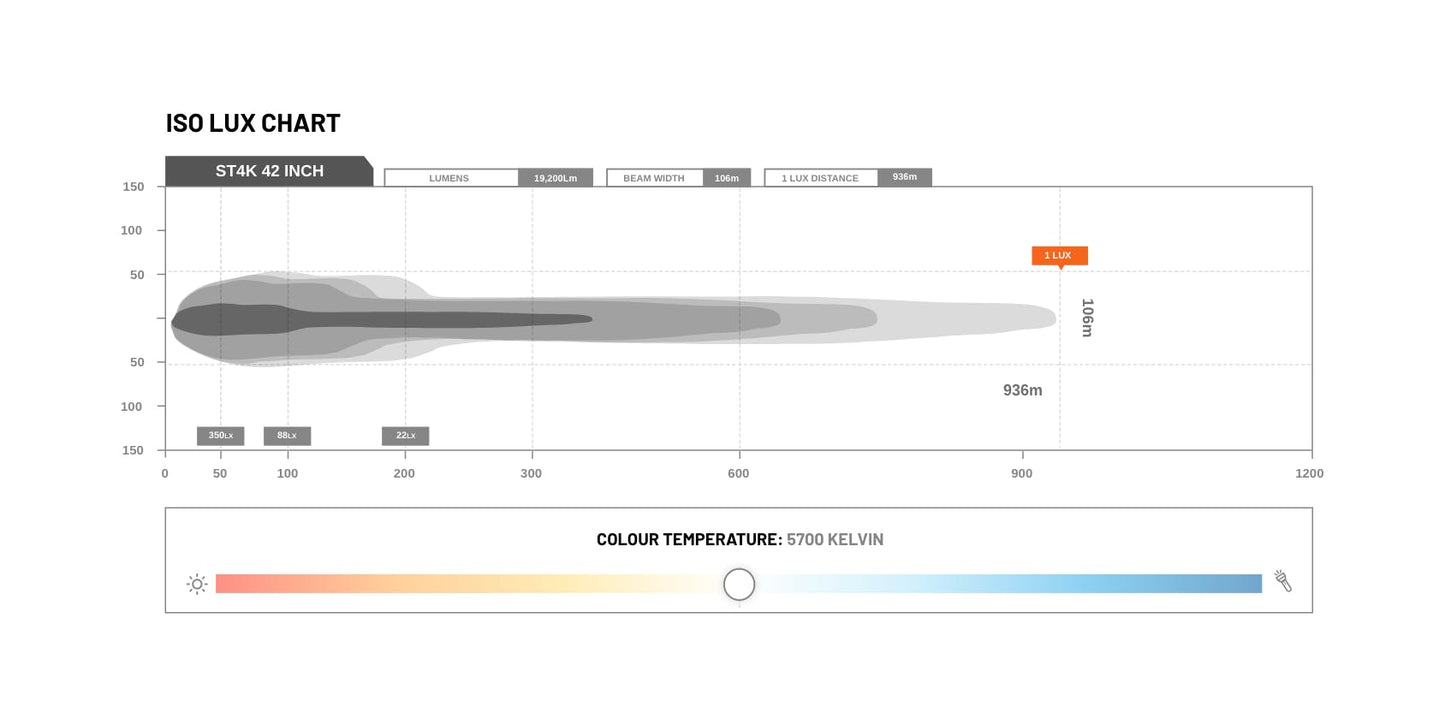

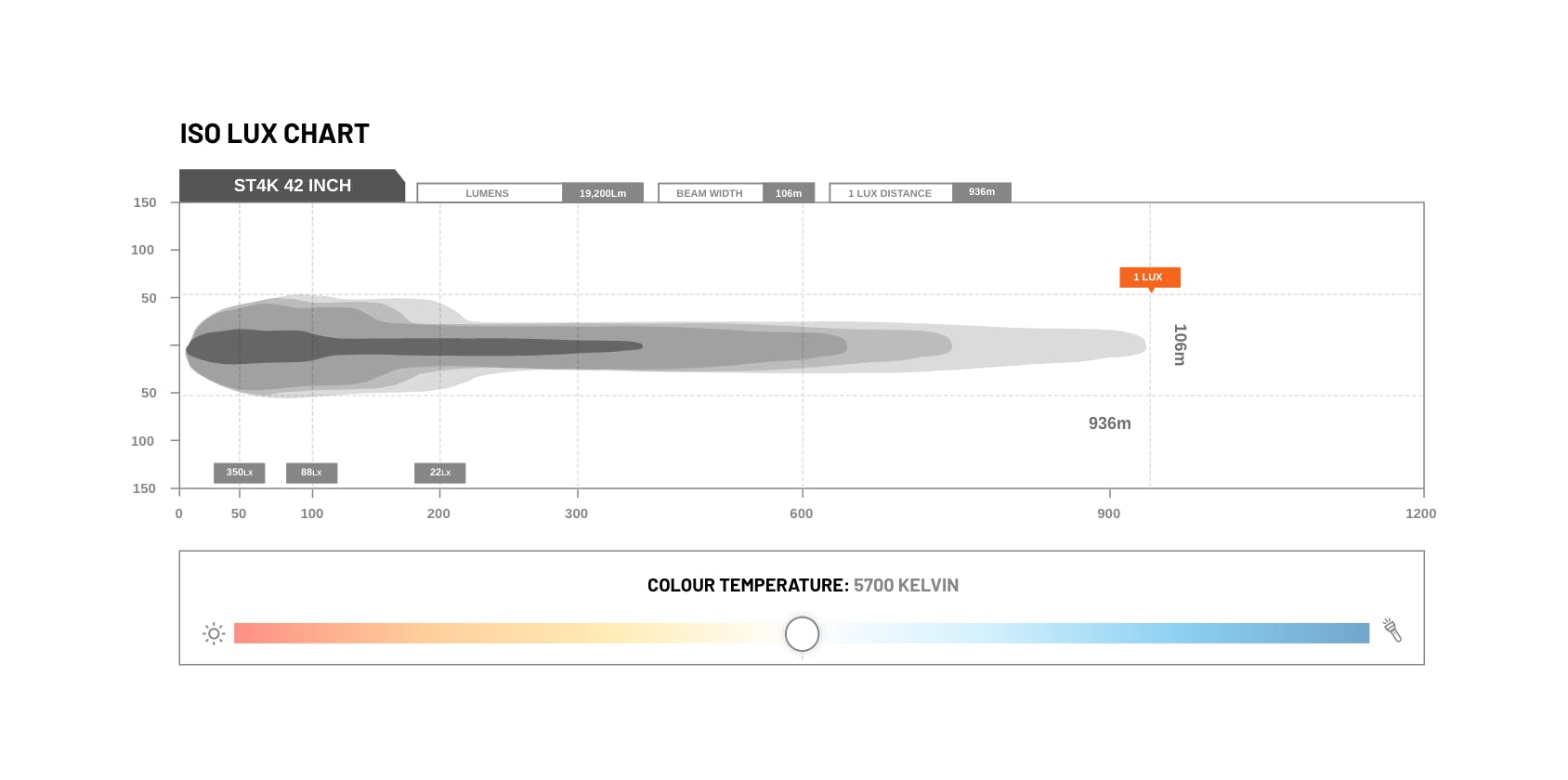

  • 12 Flood + 56 Spot + 12 Flood reflector distribution forms a remarkable beam that pushes the wide beam out at 50° and spot beam at 5.8° all the way to staggering 1 lux @ 936m
  • Crystal White 5700K Colour temperature offers stunning clarity and definition with excellent Colour Rendering Index (CRI).
  • Our Pure-Drive™ circuit design allow 97% of input power to go directly to LEDs.

BUILT TO GO ALL NIGHT

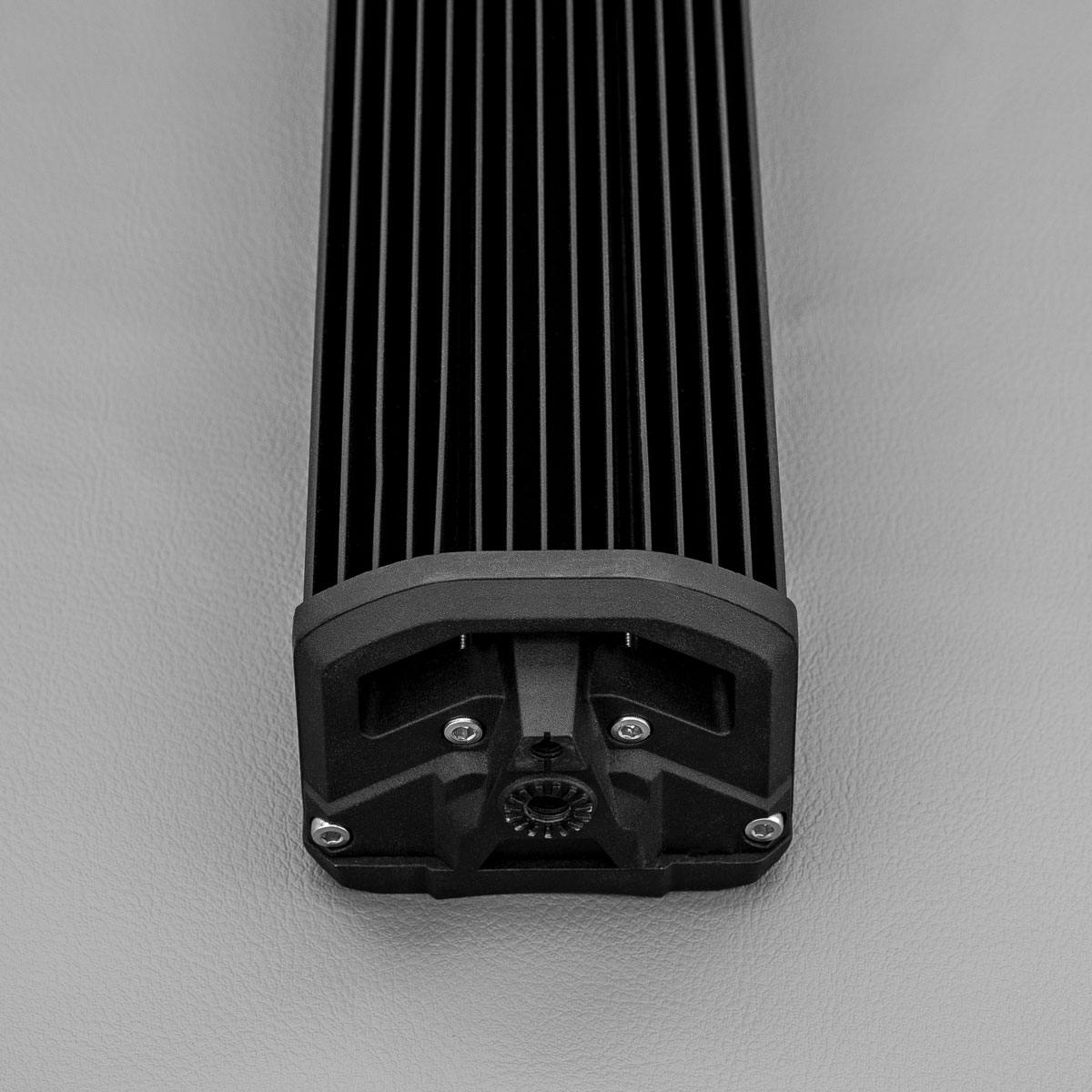

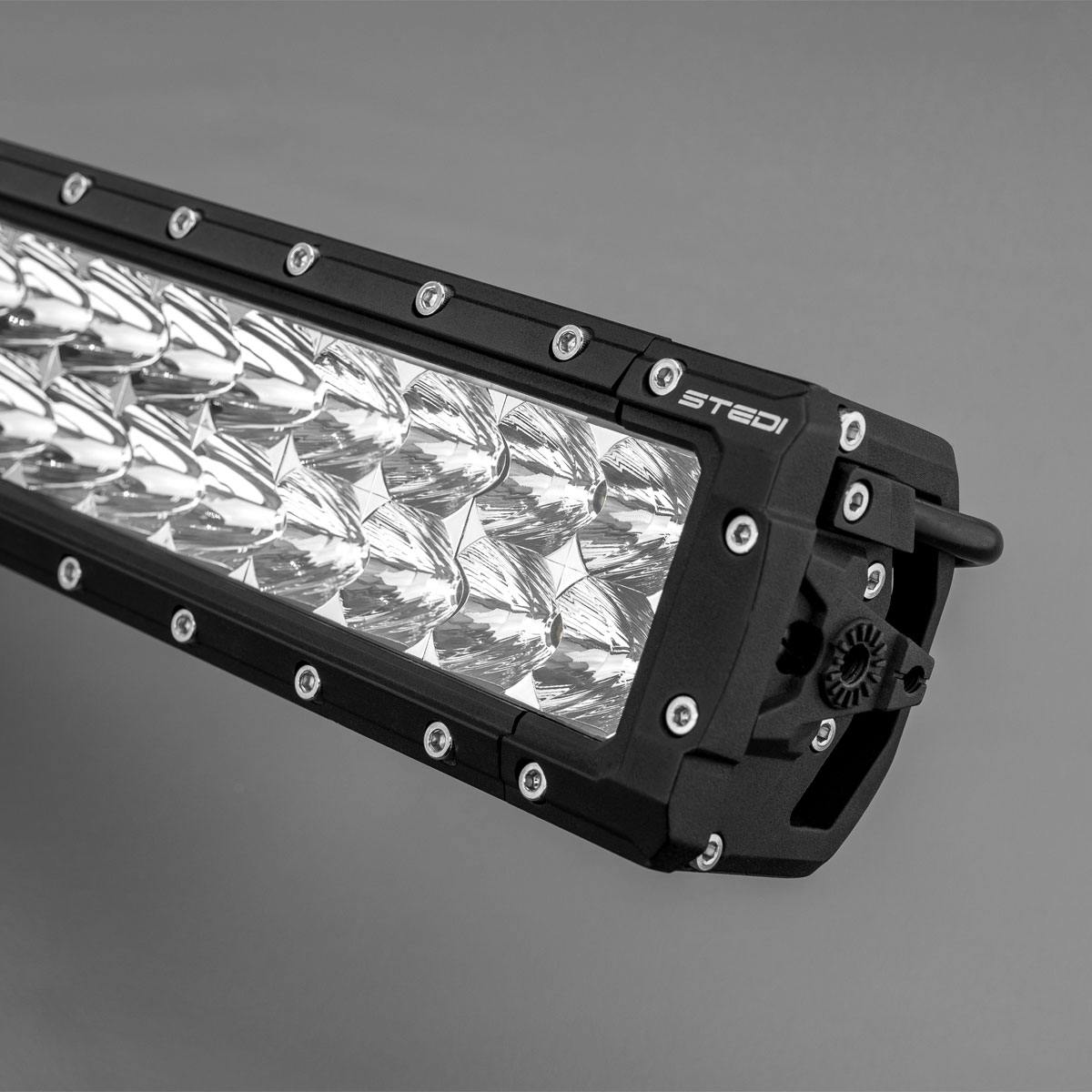

  • A360.0 Cast face plate, extruded Aluminum heat sink | finished in 100% Polyester UV and abrasion resistant powder coat, ensures that our bars will never discolour.
  • Pressure Equalization vent with Gore® membrane | Protects against water ingress, dust & contaminants.
  • IP68 | Dust & Particle tight + Water-proof up to 3 meters – Drown it, we insist!
  • Environmentally sealed Deutsch ® DTP connector.

Backed by our no nonsense 5-year replacement warranty.

MOUNT IT YOUR WAY

We know you want flexible mounting options, which is why we’ve included two seperate mounting options.

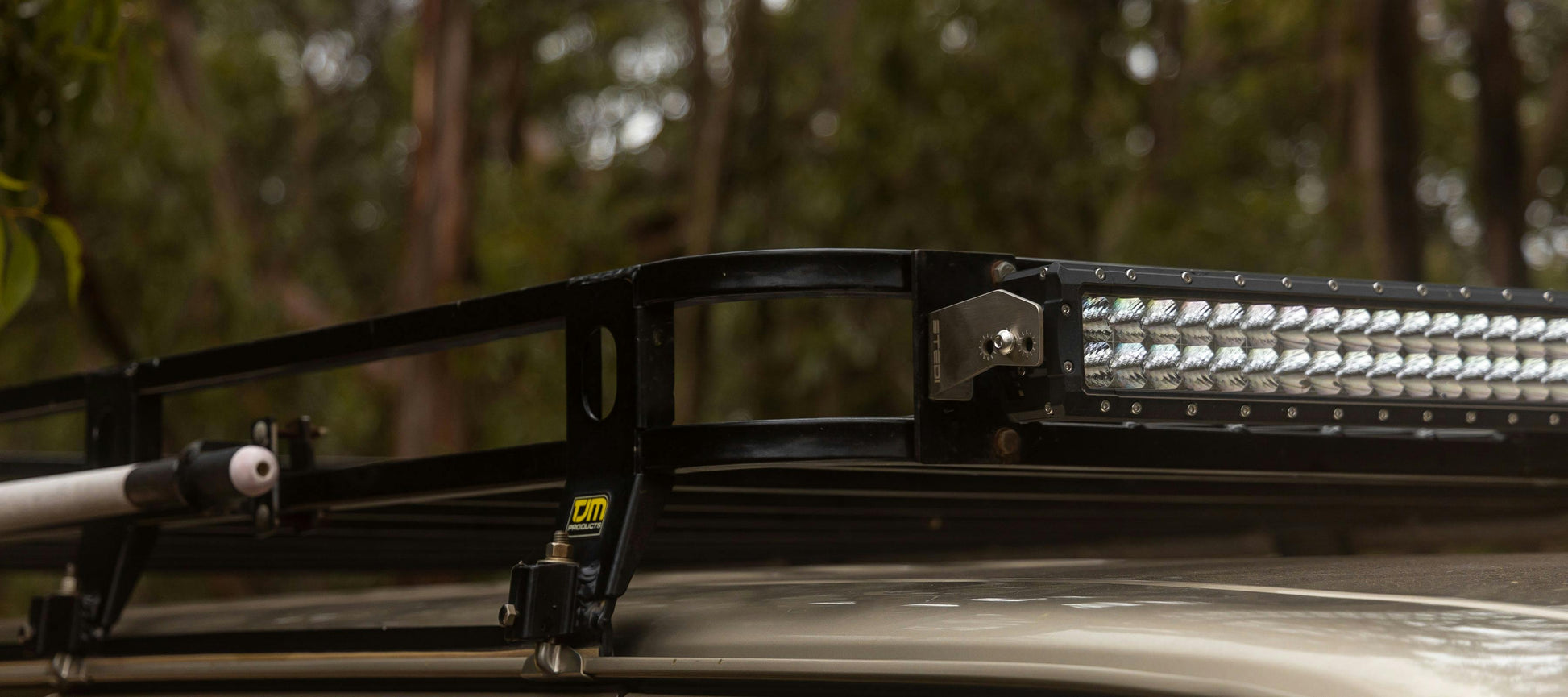

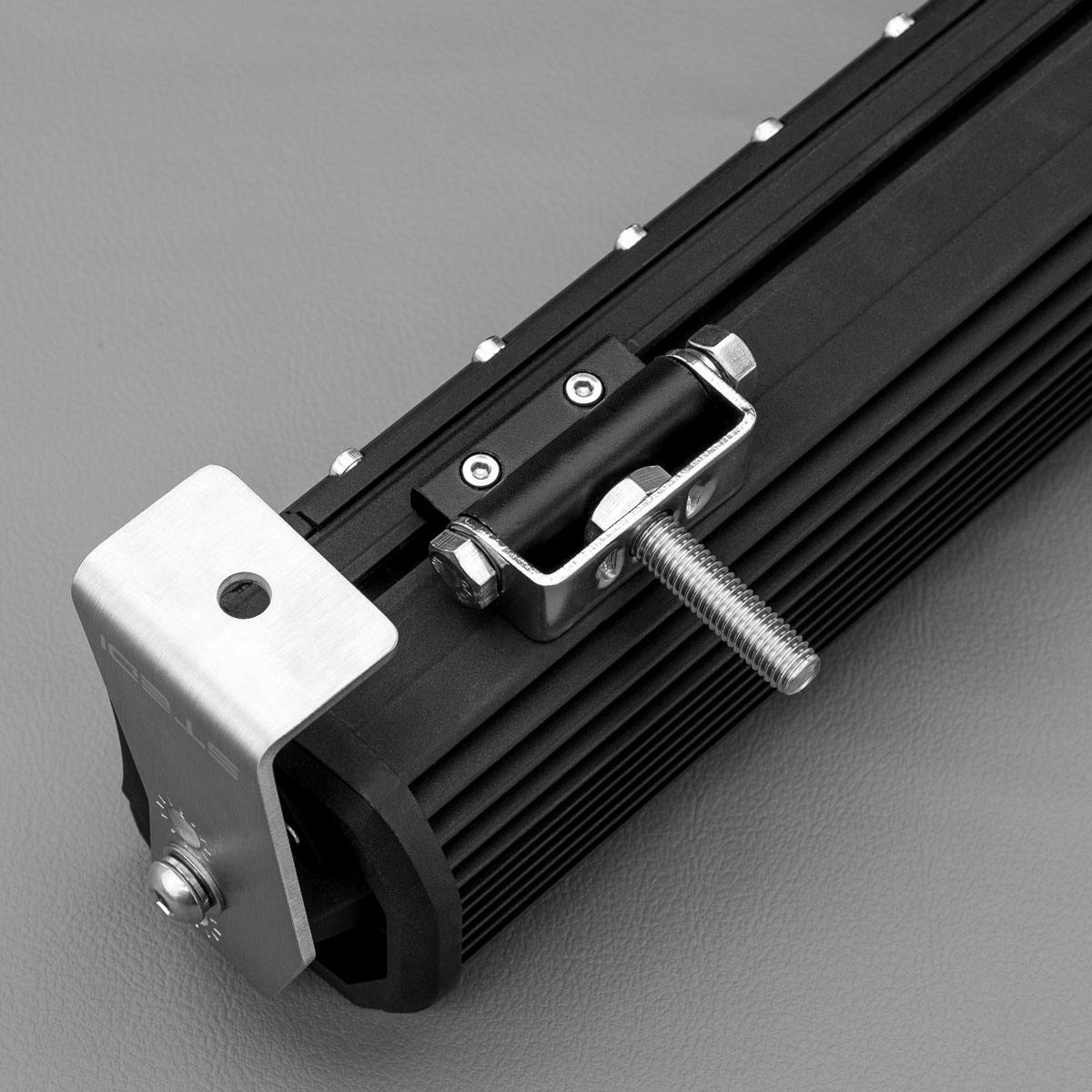

  • The included adjustable sliding mounts allow you to align the mount bolts to any pre-existing mounting holes. Make mounting to UHF tabs or Bull bar dech very straight forward.

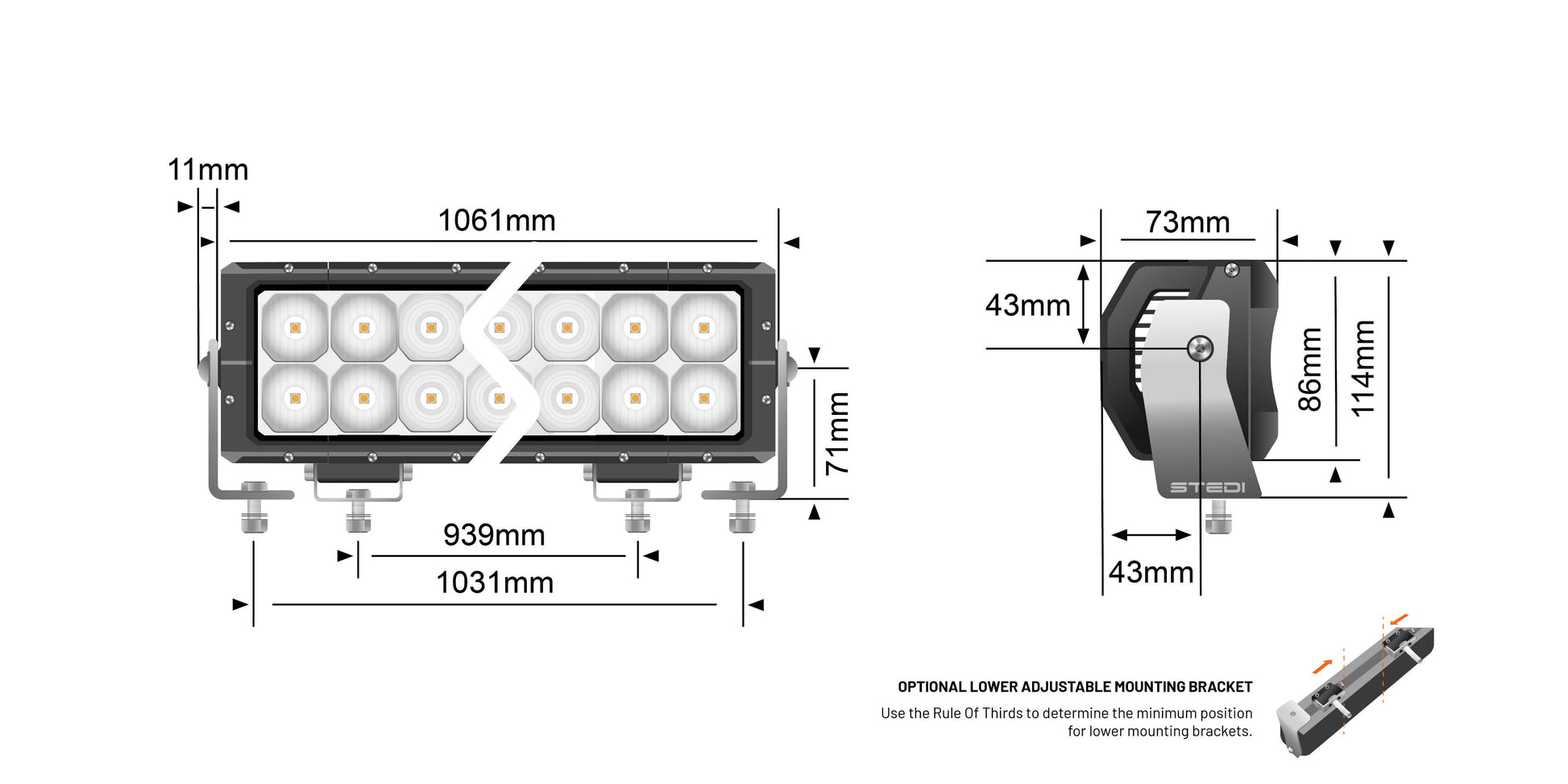

  • Or use our 3mm thick 304 Stainless steel side brackets, which feature + or - 15mm height adjustment.

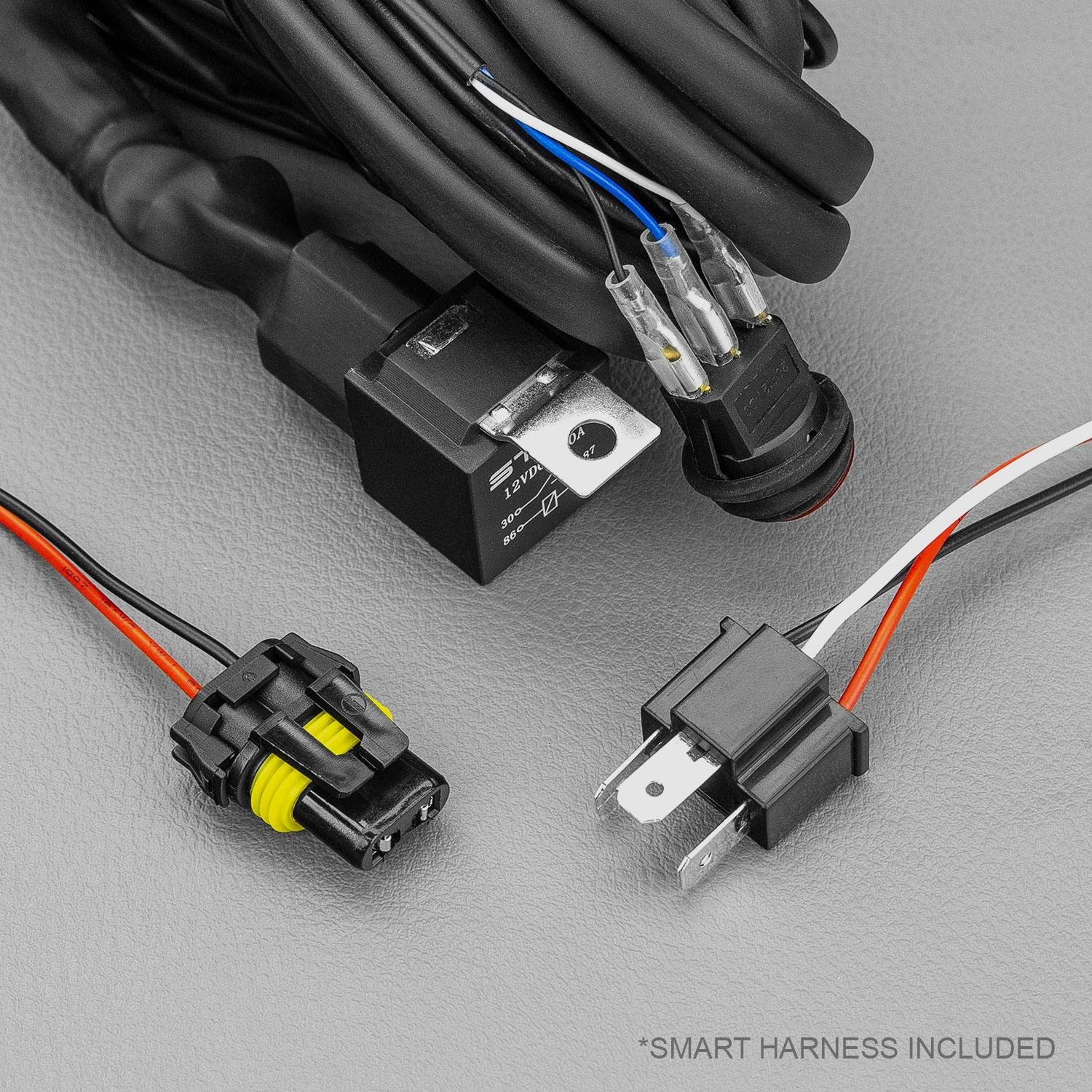

EASY-FIT Plug & Play High Beam Wiring Harness included.

Click here to find your vehicle-compatible Piggyback Adapter.

Included is our acclaimed Easy-Fit Plug and Play Wiring Harness with supplied H4 and HB3 Adapters, making for an easy connection to high beam. Further unlike other brands our kit has built in electronics making our harness compatible with even the most modern and sophisticated wiring systems. Whether your vehicle is positive or negatively switched our harness will work right out of the box without any modification whatsover.

 No nonsense 5 Year Replacement Warranty backed by an Australian company which has a brick & mortar presence.

Tech Specs

LED MANUFACTURER OSRAM (Oslon)®
LED COUNT 80
VOLTAGE 12V & 24V
LENS MATERIAL Optical Grade, Hard Coated Lexan
LUMENS 19,200 LUMENS
PEAK INTENSITY (CANDELA) 883,200cd
HOUSING MATERIAL A360.0 Cast face plate, extruded Aluminum heat sink
AMPERES 18.2A @ 13.6v
LIFESPAN 50,000
FLOOD BEAM 50°
SPOT BEAM 5.8°
INGRESS PROTECTION IP68
OPERATING TEMP -40°C to 60°C
WEIGHT 5.430kg

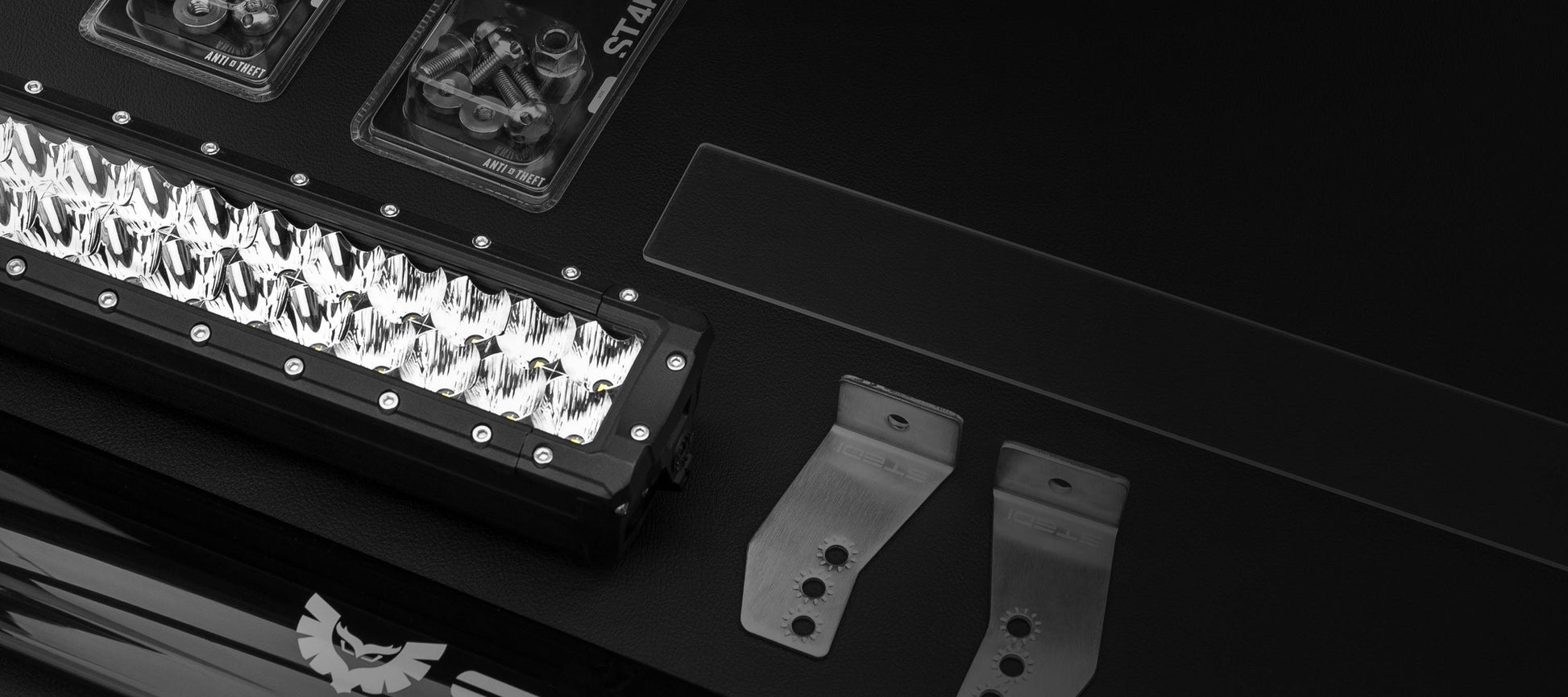

What's Included

  • 1 x ST4K-80 STEDI Oslon LED Light Bar
  • 2 x Brushed Stainless Steel Side Brackets
  • 3 x Adjustable Sliding Brackets
  • Easy-Fit High Beam Wiring Kit | HB3 & H4 piggy-back included.
  • Cable Ties
  • Wiring Instructions
