For almost a decade, the name STEDI has stood for cutting-edge design and market-leading performance. The ST3303-PRO is an aggregation of all things that have made us the globally distributed, coveted brand born right here in Australia.
A NEW REALM OF PERFORMANCE
Every good story starts with CREE LEDs. So, we commissioned CREE’s XPL HI emitter, which represents a +9% increase in lumen output at the same drive current over the already great (but now aging) CREE XM-L2 found in the previous model. 9% doesn’t sound like much, but the kicker is that the emitter die size drops down from 5 x 5mm to 3.5 x 3.5mm. Higher lumen density with tighter source improves the optic and emitter size relationship – We’ve effectively increased the optic diameter by 40% without physically increasing it. The result is huge light volume and tremendous beam throw.
NOW, ARE YOU SITTING DOWN?
Where others stop, we get started. The current draw is enormous, and quite literally unlike anything else on the market. The 60 LED variant draws 36 amp at 13.6v & @ 12.5v 40 amp. Have we got your attention yet? Now, you must, without any exception, we repeat, you must use the heavy-duty, dual relay (yes dual relay!), dual fused wiring harness we supply. The current is so intense, the 40 LED and 60 LED bars have two separate power cables (yes two separate power cables!) on either side of the light bar, and two separate breathers (yep two!) to deal with the enormous current draw.
The nitty gritty.

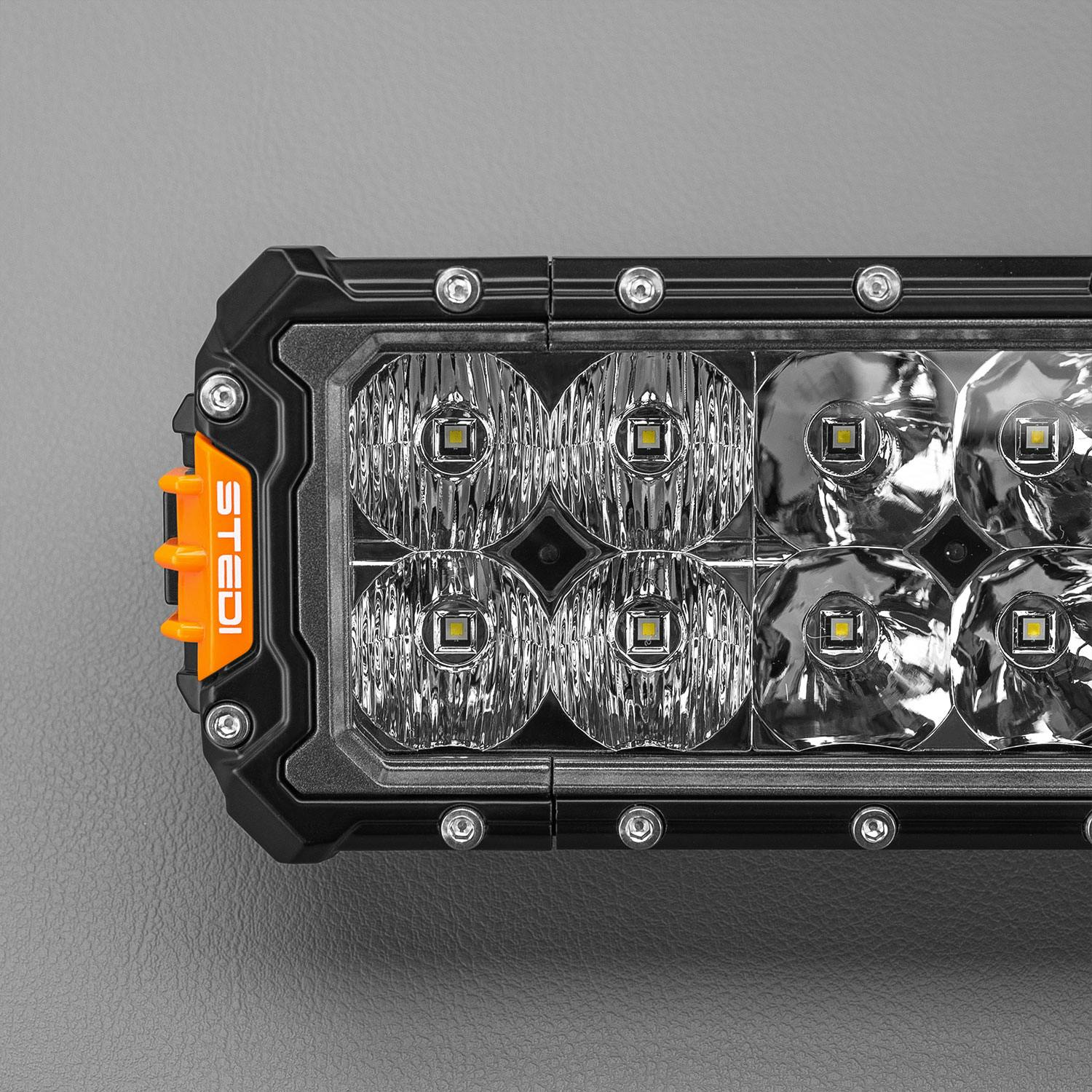

Introducing the STEDI ST3303-PRO, a high-performance double-row light bar that takes lighting to a whole new level. With almost a decade of cutting-edge design and market-leading performance, the ST3303 is the ultimate high-performance double-row light bar. With massive light volume and unparalleled beam throw, the ST3303 is truly the Gold Standard of LED Light Bars.
Beyond its exceptional performance, the ST3303-PRO boasts an ingenious design that ensures durability and reliability in any situation. With an IP68 rating, Optical Grade Hard-Coated Lexan lens, A360 Cast face plate and extruded Aluminum heat sink the ST3303 comes ready to conquer the toughest terrains.
The powerful combination of the spread and spot beam pattern combo illuminates the road ahead, offering enhanced visibility, especially during challenging weather conditions. With a heavy-duty Smart Plug & Play ADR compliant Wiring Harness, installation becomes a breeze, and the light bar seamlessly integrates into your vehicle's electrical system helping you elevate your off-road adventures to new heights.
KEY FEATURES
Registered Design: 201915829.
CREE® XLamp XP-L HI undomed LEDs using CREE’s breakthrough SC5 Technology™
RFI and EMI suppression circuit. Guaranteed to not interfere with Radio or GPS Equipment
IP68 - Submersible to 3m
High Current Deutsch DTP-2 25A connectors

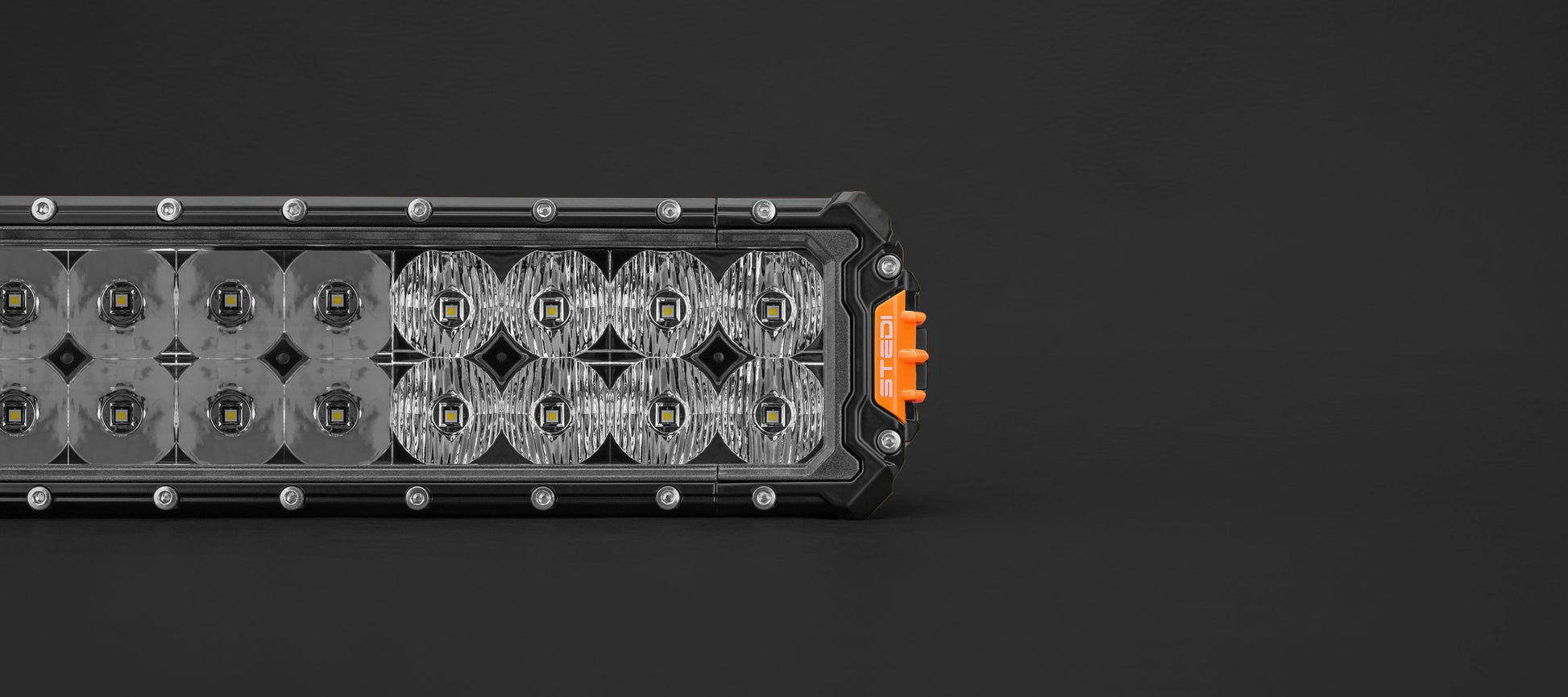

32mm diameter parabolic reflectors

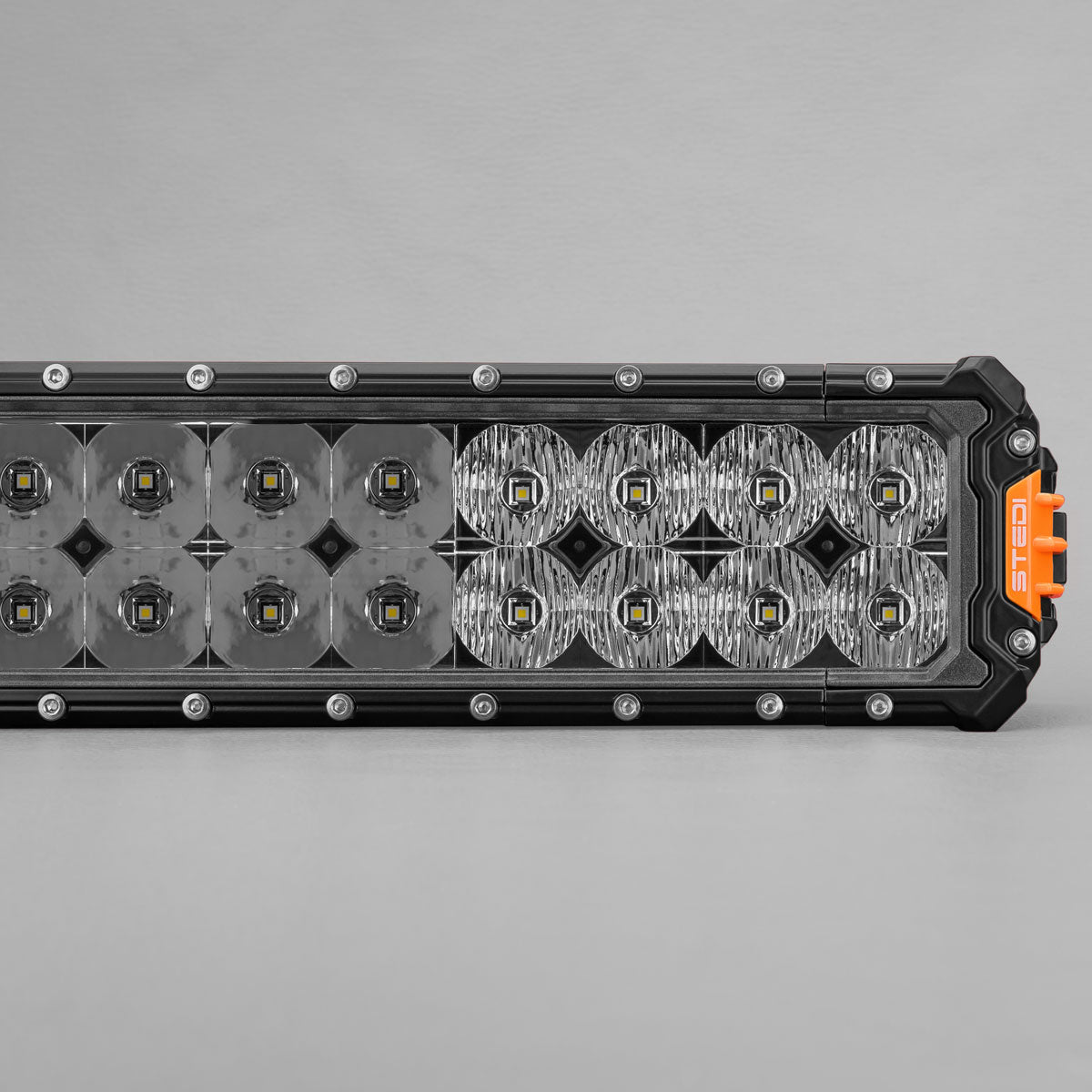

Spread and Spot beam pattern

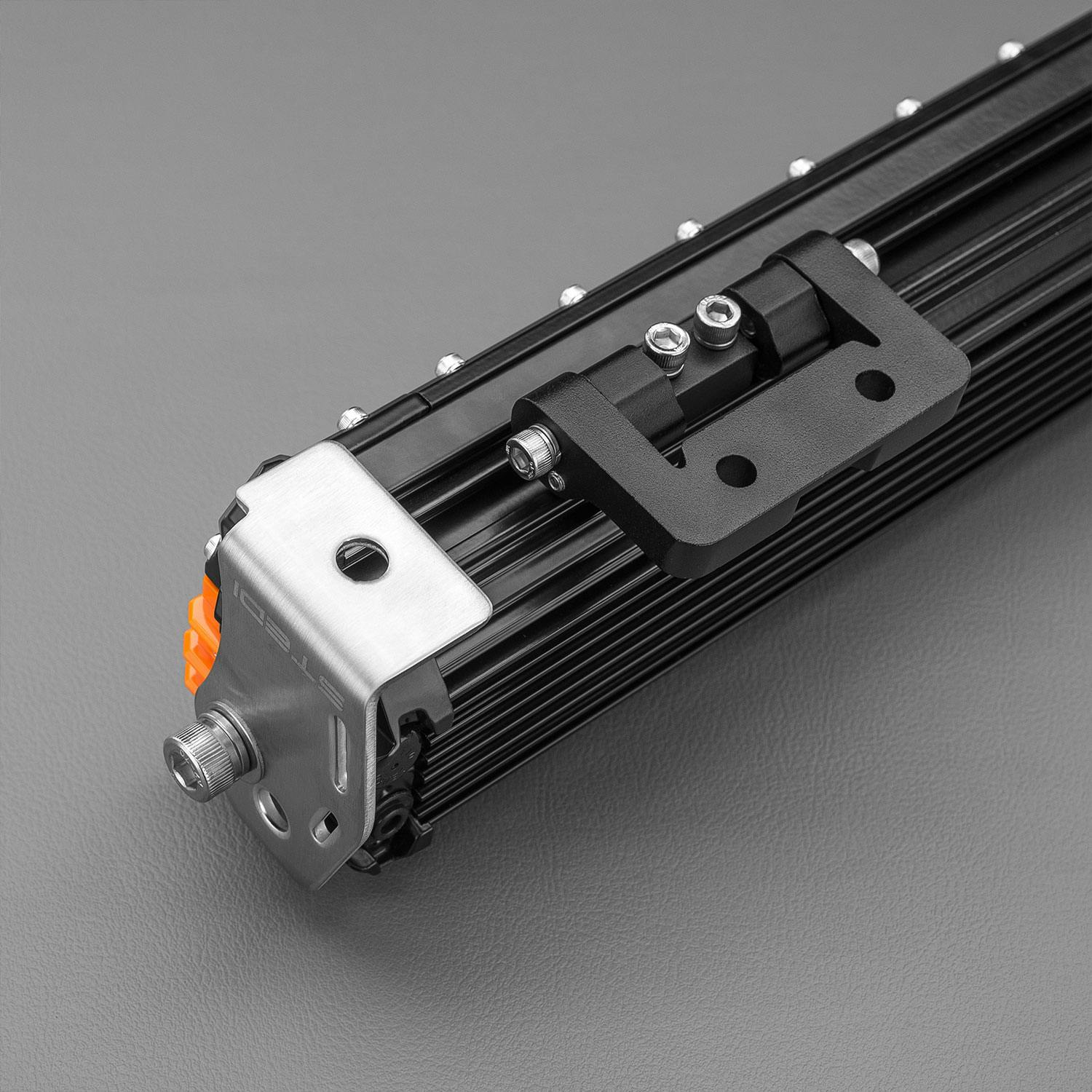

4mm thick 304 stainless steel side brackets included.
Cast Alloy adjustable sliding bracket included.

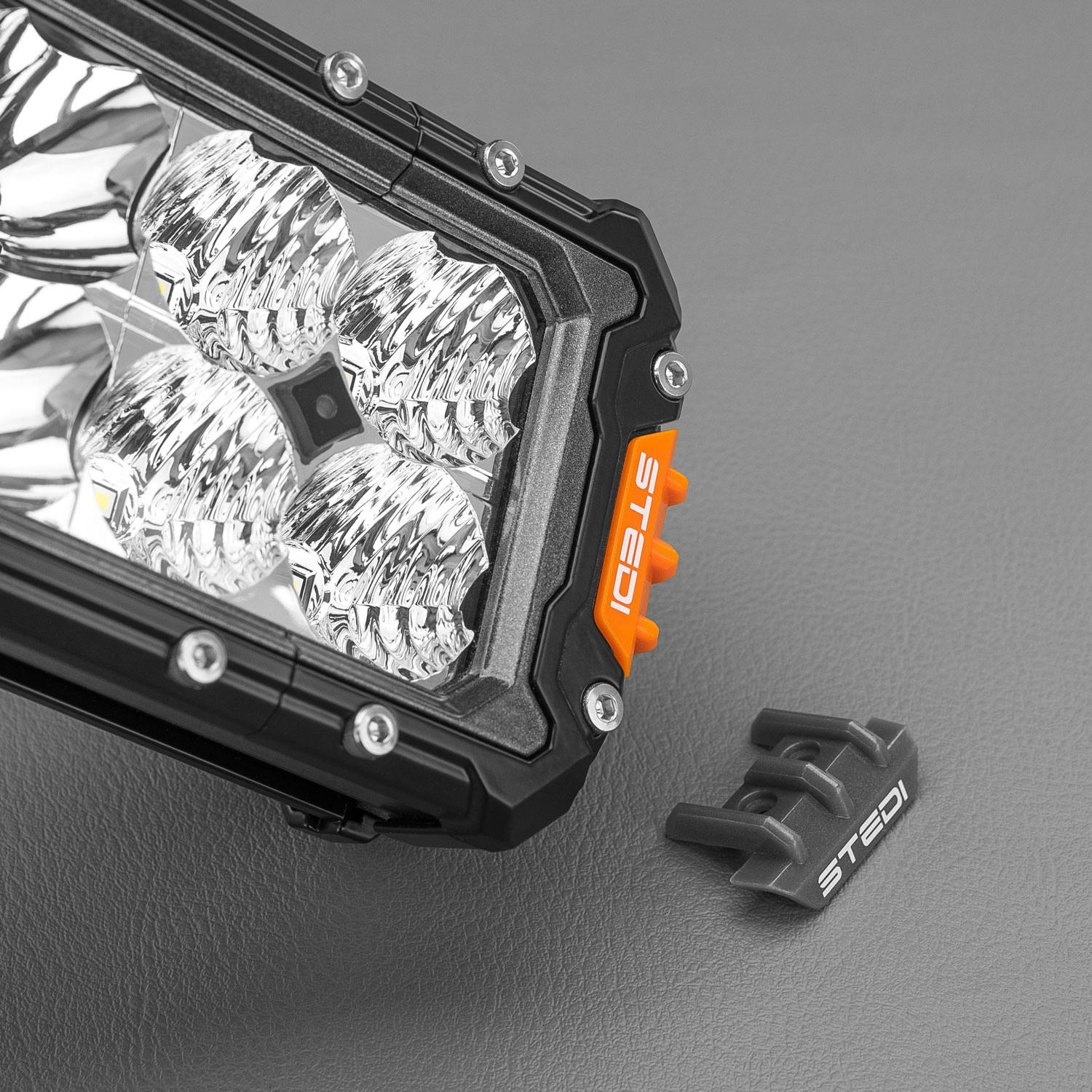

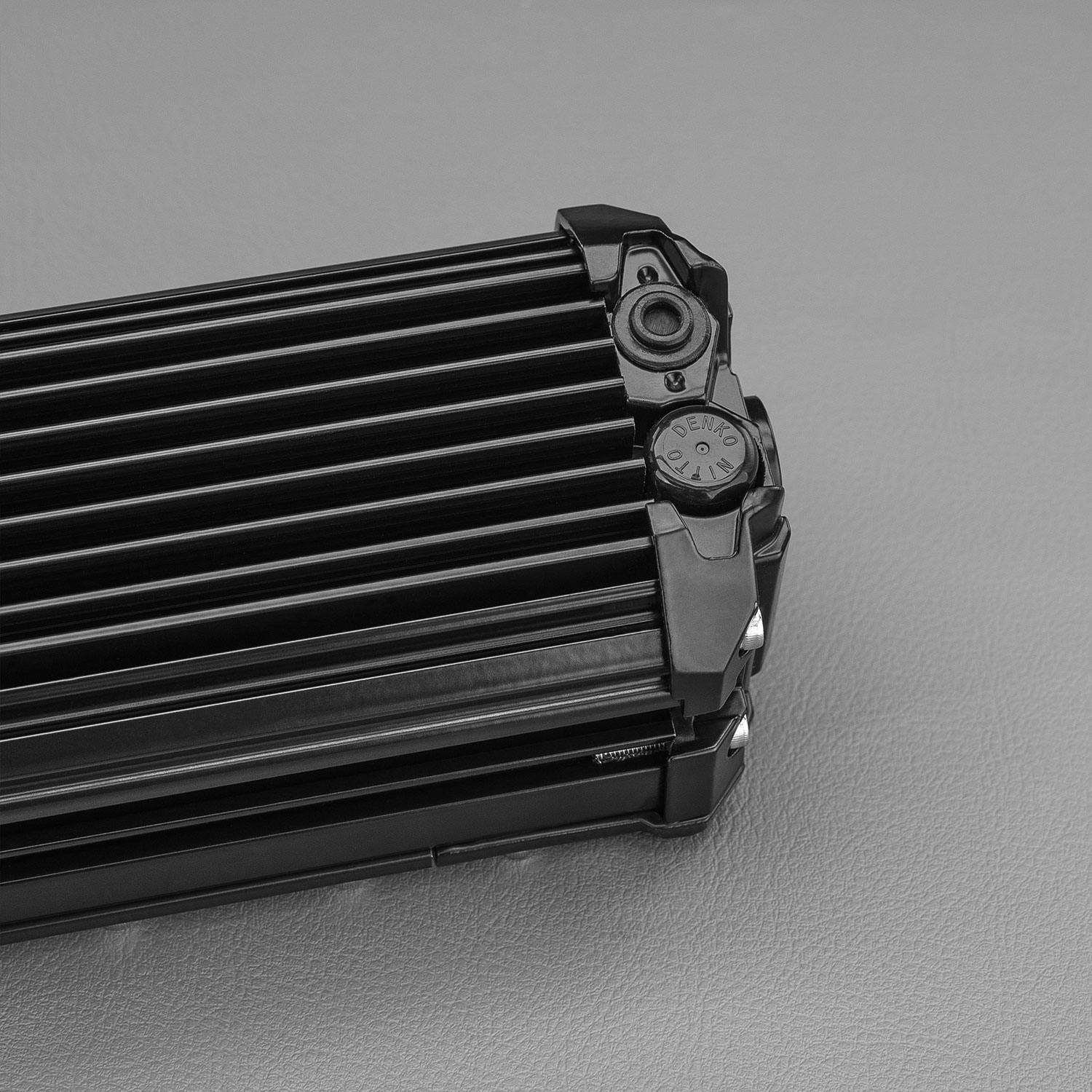

Nitto Denko™ Breather with PTFE microporous membrane
Very heavy-duty Smart Plug & Play ADR compliant Wiring Harness. (Switch, Dual Fuse, Dual Relay and HB3 and H4 Piggyback Adaptors) included
Registered Design: 201915829
Tech Specs
LED
40 x CREE XPL Hi-Intensity LED
VOLTAGE
9V - 32V
CURRENT DRAW (AMPERES)
25.3a @13.6v
RAW LUMENS
43,800Lm
EFFECTIVE LUMENS
22,400Lm

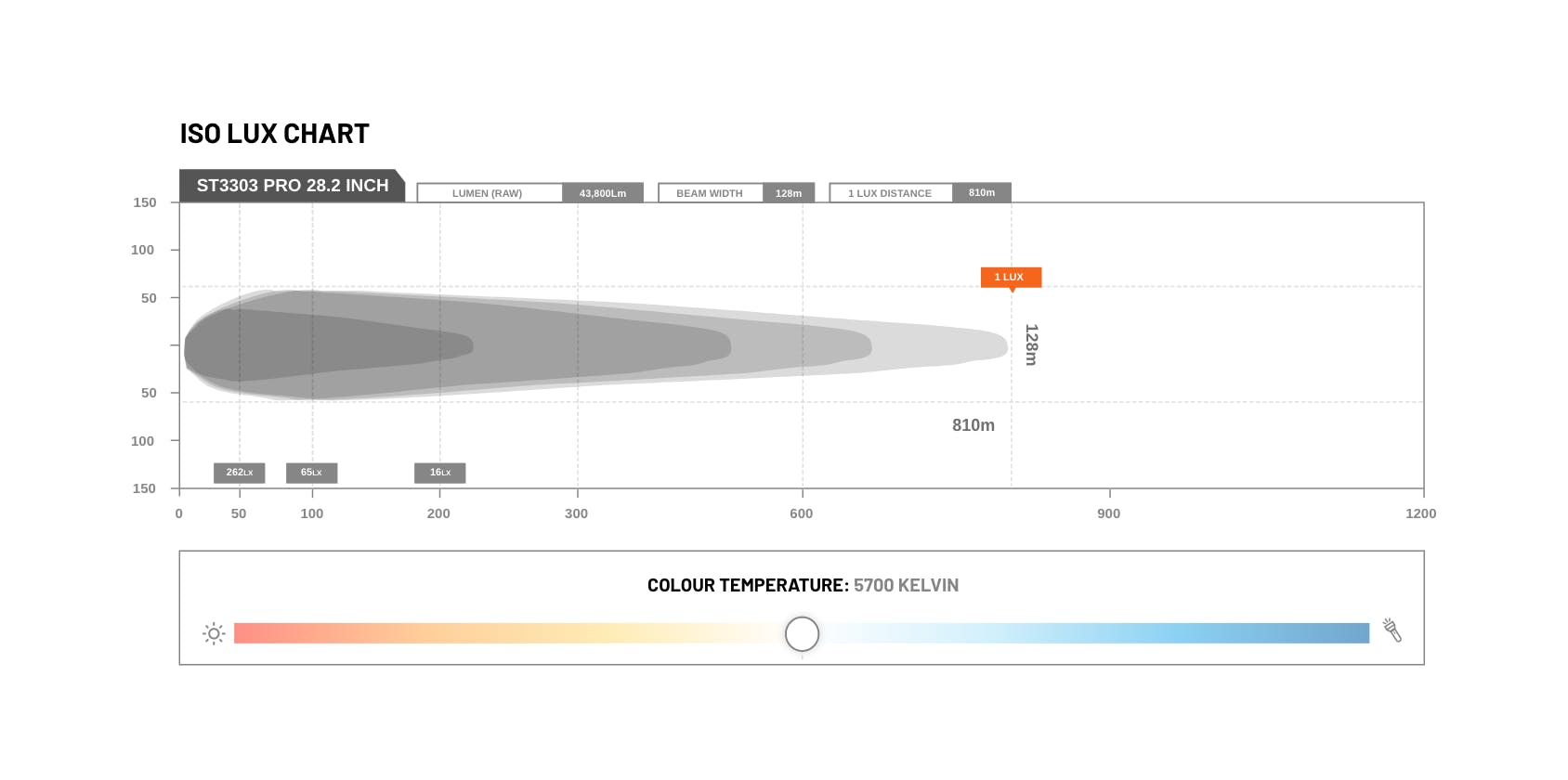

PEAK INTENSITY (CANDELA)
656,100cd
COLOUR TEMP (CCT)
5700K
LENS MATERIAL
Optical Grade, Hard-Coated Lexan
HOUSING MATERIAL
A360.0 Cast face plate, extruded Aluminum heat sink
INGRESS PROTECTION
IP68
FLOOD BEAM
50°
SPOT BEAM
9°
LIFESPAN
50,000hrs
OPERATING TEMP
-40°C ~ +150°C
WEIGHT
4.960kg
What's Included

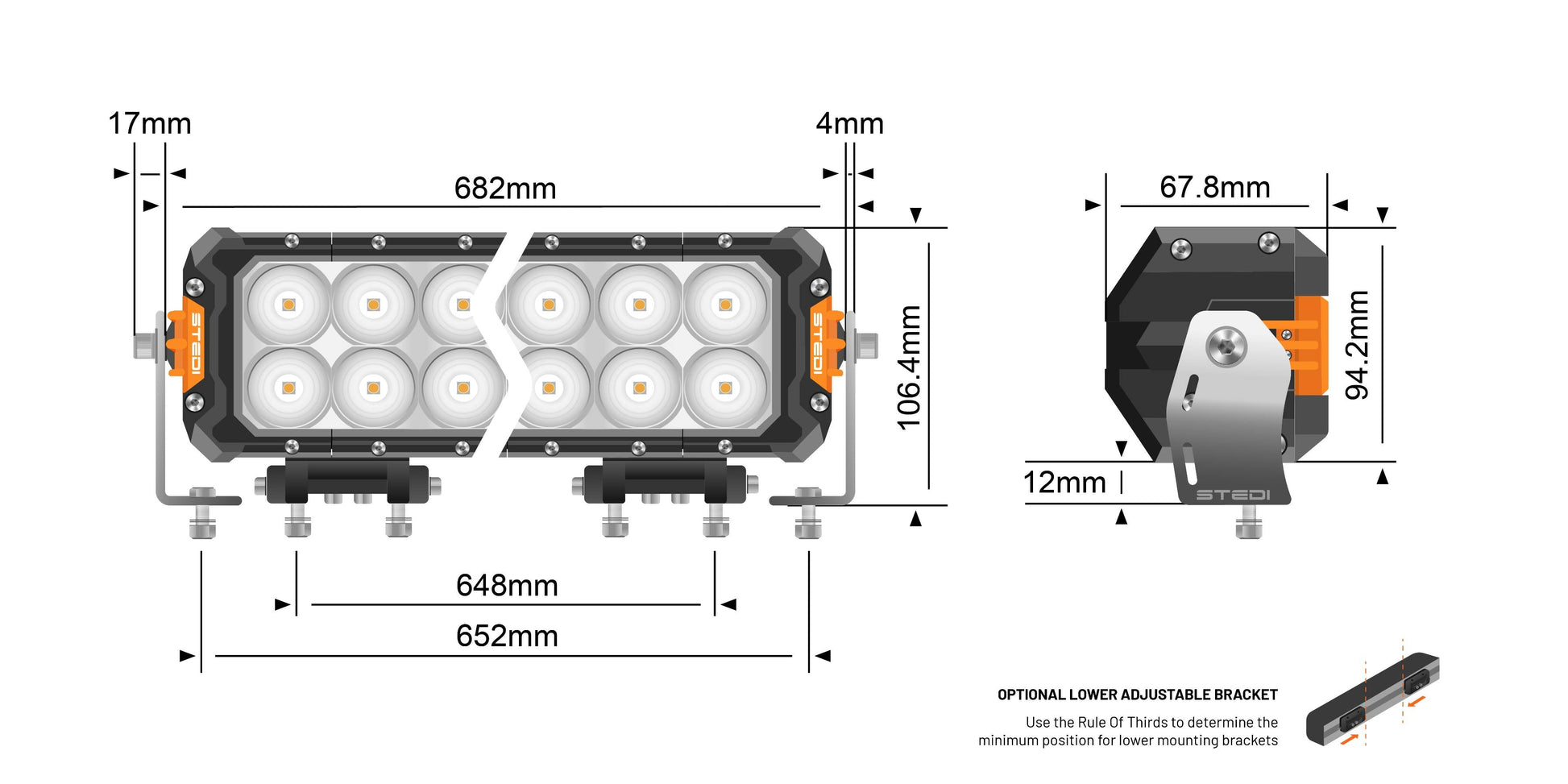

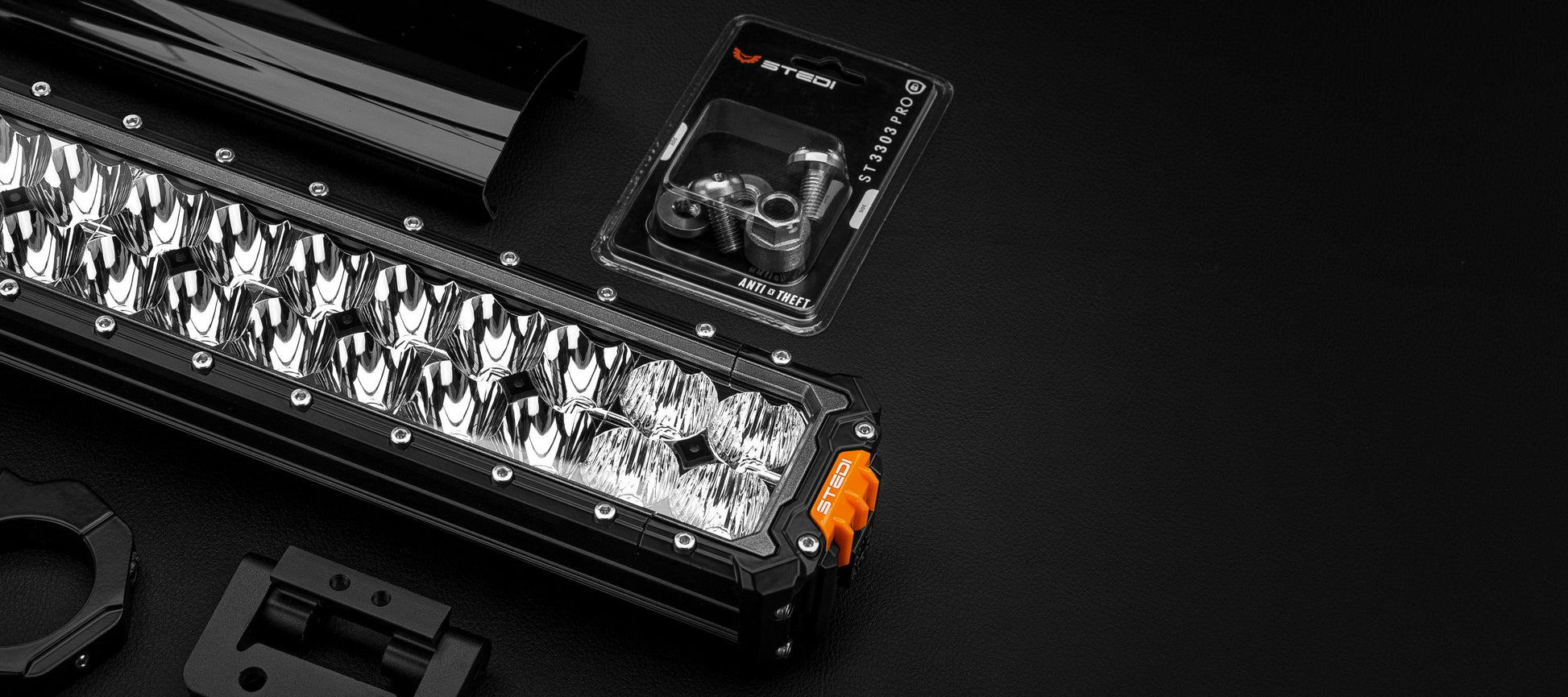

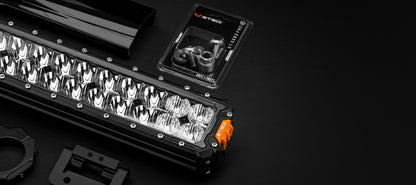

ST3303 PRO 40 LED 28.2 Inch Light Bar

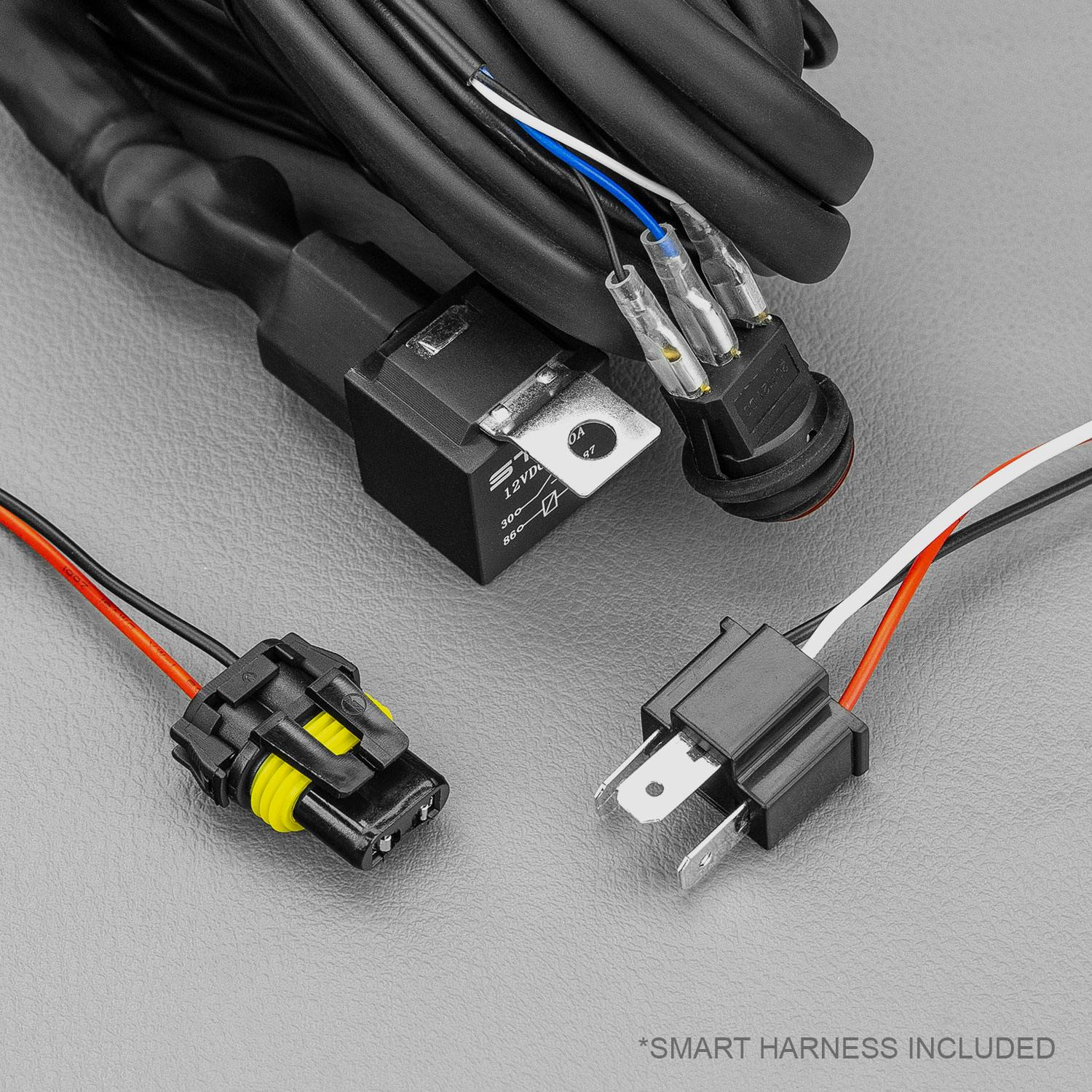

Easy Fit High Beam Wiring Harness with H4 & HB3 adapters to High Beam
3 x Lower Mounting Brackets with Stainless Steel Fasteners
