Runva

EWB9500Q12VD

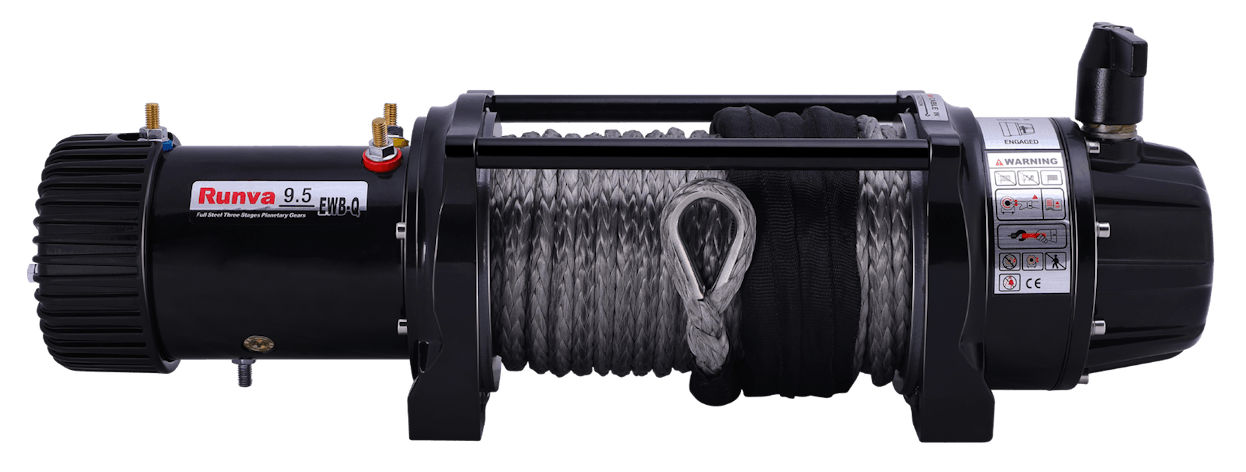

RUNVA EWB9500-Q PREMIUM 12V WITH SYNTHETIC ROPE

RUNVA EWB9500-Q PREMIUM 12V WITH SYNTHETIC ROPE

$1,085.00 AUD
$1,085.00 AUD
Sale Out of stock
Tax included. Shipping calculated at checkout.

Low stock: 1 left

9,500LB LINE PULL CAPACITY
LOW GEAR RATIO - FAST LINE SPEED
IP67 INGRESS PROTECTED
RATCHET BRAKE IN GEARBOX
AVAILABLE IN 12V AND

Product overview

The Runva EWB9500-Q Premium is perfect if you are needing faster line speed for a small to medium sized vehicle (or other application). With 9,500lb of line pull, this winch is designed for fast line speed thanks to the large 7.2HP motor and low 108:1 gear ratio.

This model has all of our Premium features built in. Feel confident in the most extreme conditions with full IP67 ingress protection. The brake is our most advanced Ratchet system which is located in the gearbox which is super efficient and able to hold without fail when you stop winching. (Same brake as featured in our vertical lifting winch). Unlike the other traditional brake systems which uses brake pads, this will not wear out.

The clutch is easily engaged/disengaged via the Rotary Clutch system. The EWB9500-Q is also fully compatible with our optional extra Runva Air Clutch for easy in-cab control. This winch is quite large so might not fit all 4X4 Winch Bars/Bullbars. Please check the technical drawing below for sizing and compatibility with your setup.

Tech Specs

RATED LINE PULL 9,500LB (4,309KG)
MOTOR (12V) 5.4KW/7.2HP; (24V) 5.3KW/7.1HP
GEAR TRAIN FULL STEEL 3 STAGE PLANETARY
GEAR RATIO 108:1
CLUTCH TYPE STAINLESS STEEL ROTARY CLUTCH
CLUTCH HANDLE POSITION GEARBOX CAN BE ROTATED
BRAKE AUTOMATIC RATCHET LOAD HOLDING IN GEARBOX
CABLE TYPE SYNTHETIC ROPE
CABLE SIZE 10MM X 25M
DRUM SIZE 63MM X 216MM
MOUNTING BOLT PATTERN 254MM X 114.3MM
OVERALL DIMENSIONS 612MM X 160MM X 200MM
REMOTE CONTROL HEAVY DUTY HANDHELD + WIRELESS
BATTERY LEADS 2X 1.8M HEAVY DUTY LEADS
FINISH BLACK POWDER COAT
WARRANTY LIMITED 5 YEAR ELECTRICAL AND LIFETIME MECHANICAL WARRANTY
SKU EWB9500Q12VD
SHIPPING WEIGHT 39.00KG
SHIPPING WIDTH 0.330M
SHIPPING HEIGHT 0.330M
SHIPPING LENGTH 0.635M
Includes
Includes
Dimensional Drawing
Dimensions

Performance

LINE PULL lb (kg) LINE SPEED ft/min (m/min) MOTOR CURRENT (amp) LAYER OF CABLE RATED LINE PULL lb (kg) TOTAL ROPE ON DRUM ft (m)
  12V DC 24V DC 12V DC 24V DC
0 42.7 (17.0) 63.3 (19.3) 51 28 1 9,500 (4,309) 17.4 (5.3)
3,000 (1,361) 18.7 (5.7) 21.6 (6.6) 220 130 2 7,706 (3,495) 39.4 (12.0)
6,000 (2,722) 12.1 (3.7) 14.4 (4.4) 365 230 3 6,482 (2,940) 65.0 (19.8)
9,500 (4,309) 7.2 (2.2) 8.9 (2.7) 530 320 4 5,593 (2,537) 85.3 (26.0)
