Land Rover Discovery Series 3 2005-2009

LAND ROVER RANGE ROVER SPORT - (2005-2013) - 100Lt STEEL AUXILIARY Brown Davis Fuel Tank

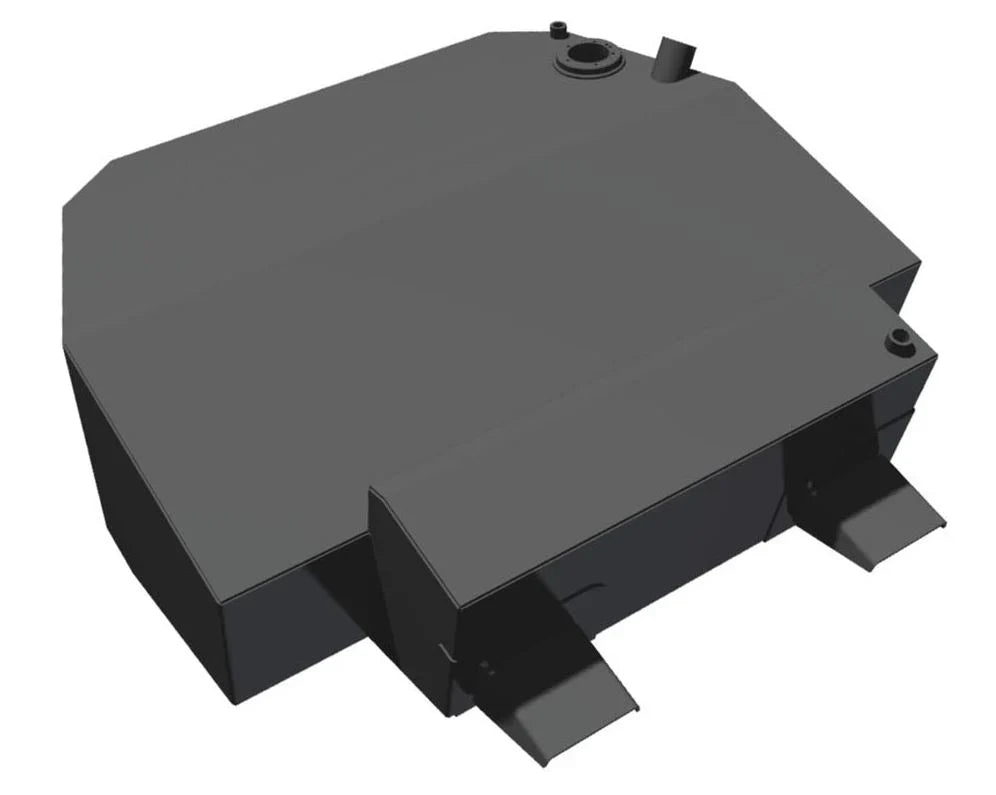

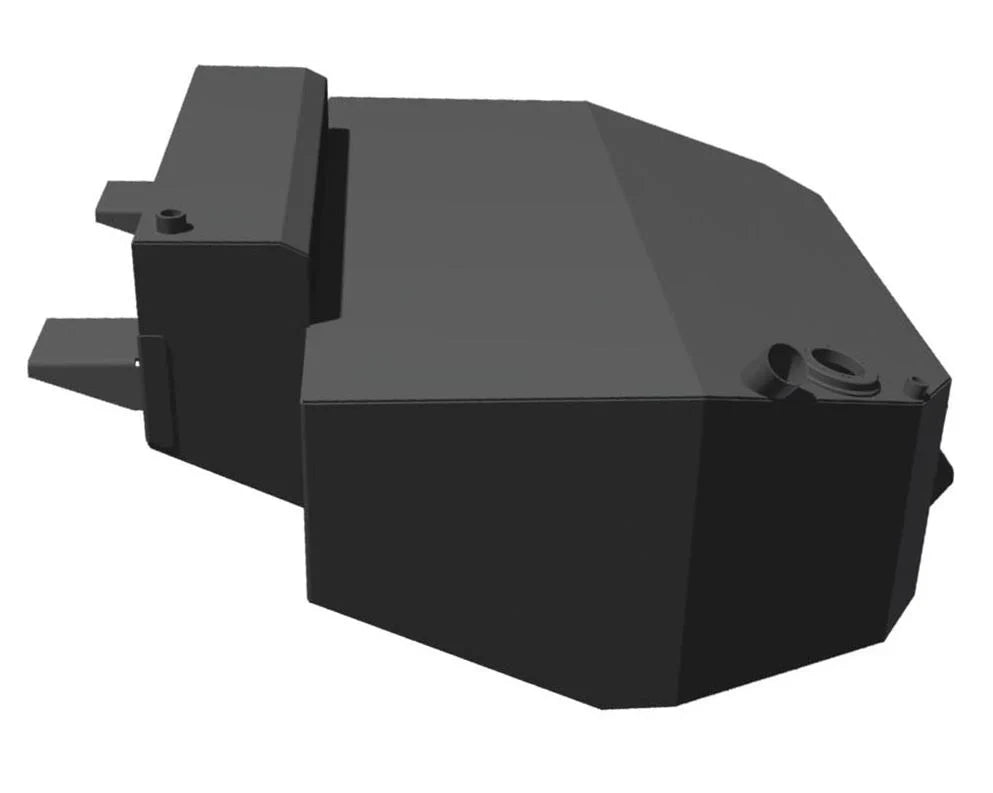

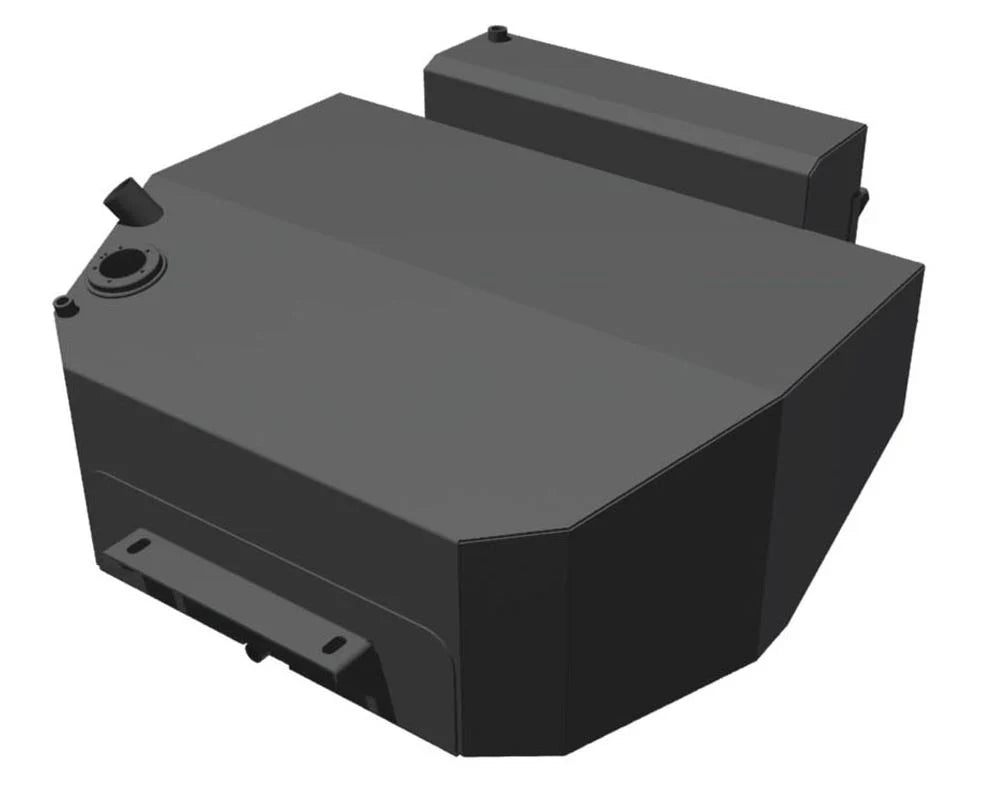

100 LITRE STEEL AUXILIARY LONG RANGE FUEL TANK - LDI3A1

The tank takes the place of the spare wheel, and as such is a direct bolt in solution for increasing fuel capacity.

Key Features of a Brown Davis Auxiliary Fuel Tank:

• Tapered approach angle to reduce frontal impact and improve ramp over clearance
• Longitudinal and lateral baffling system to prevent fuel slosh and to strengthen tank structure
• Gusseted brackets with double thickness pads to spread tank mounting loads
• Fuel pump sender flange designed to re-use the vehicle’s original equipment
• Swirl pot designed to carrel fuel around the pick-up point
• Roll over check valve and expansion box for fuel expansion and venting
• Fast fill breather for rapid filling and to reduce bowser shut off
• Filler tube, connects to vehicles original filling point
• Cushion clamps to retain fuel lines to prevent damage and kinking
• Magnetic drain plug, horizontal and flush mounted to prevent damage
• TANK LOCATION: UNDER REAR (REMOVES SPARE WHEEL)
