HD HITCH STANDARD
HD HITCH STANDARD
Low stock: 3 left
Couldn't load pickup availability
The HD Hitch Standard 8159, HD Hitch Standard (PINK) 8510 and HD Hitch Series 33 (DOUBLE) 8202 (Pat. Pend) is part of our RacksBrax HD range.-
The HD Hitch Standard (8159 and 8510) are ideal for:

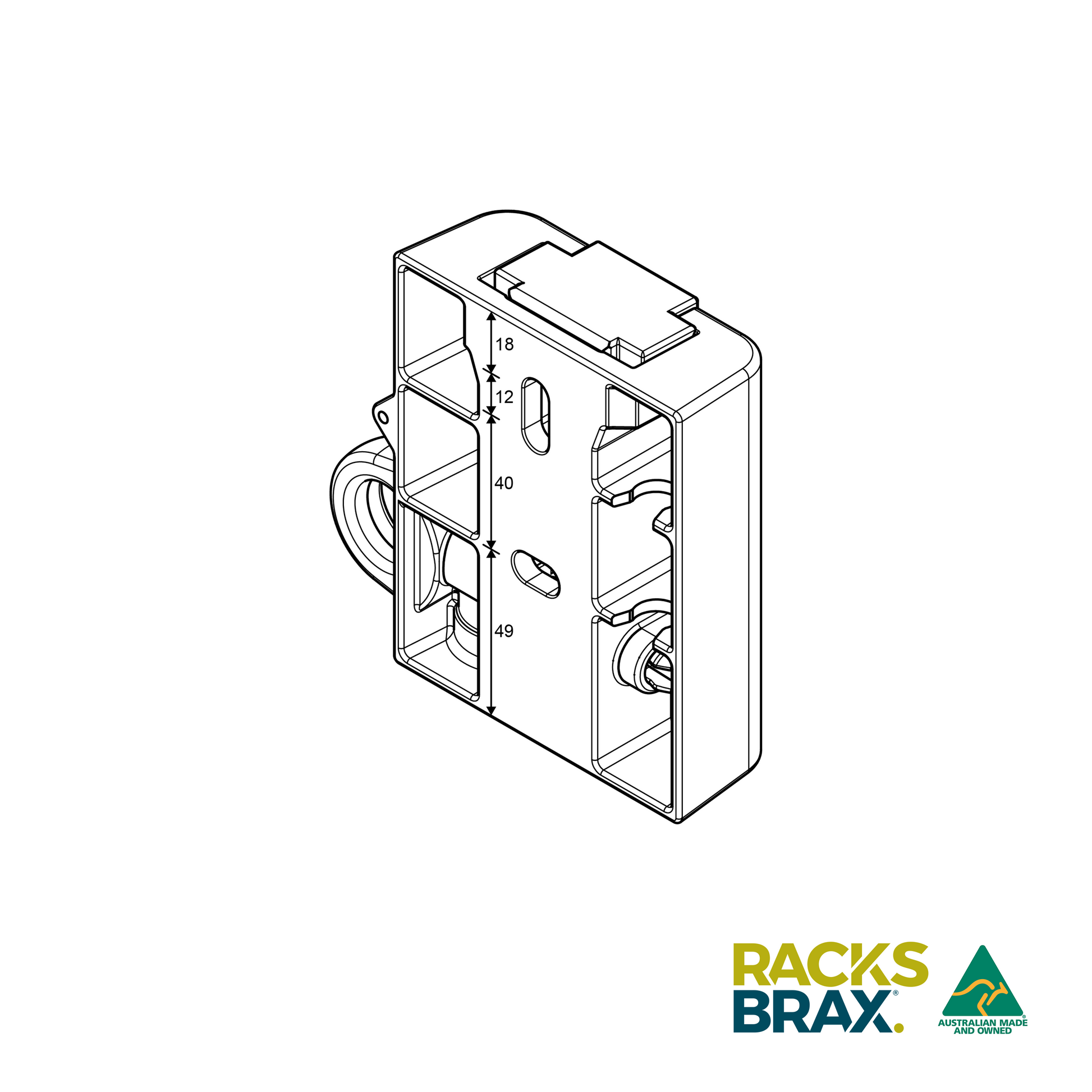

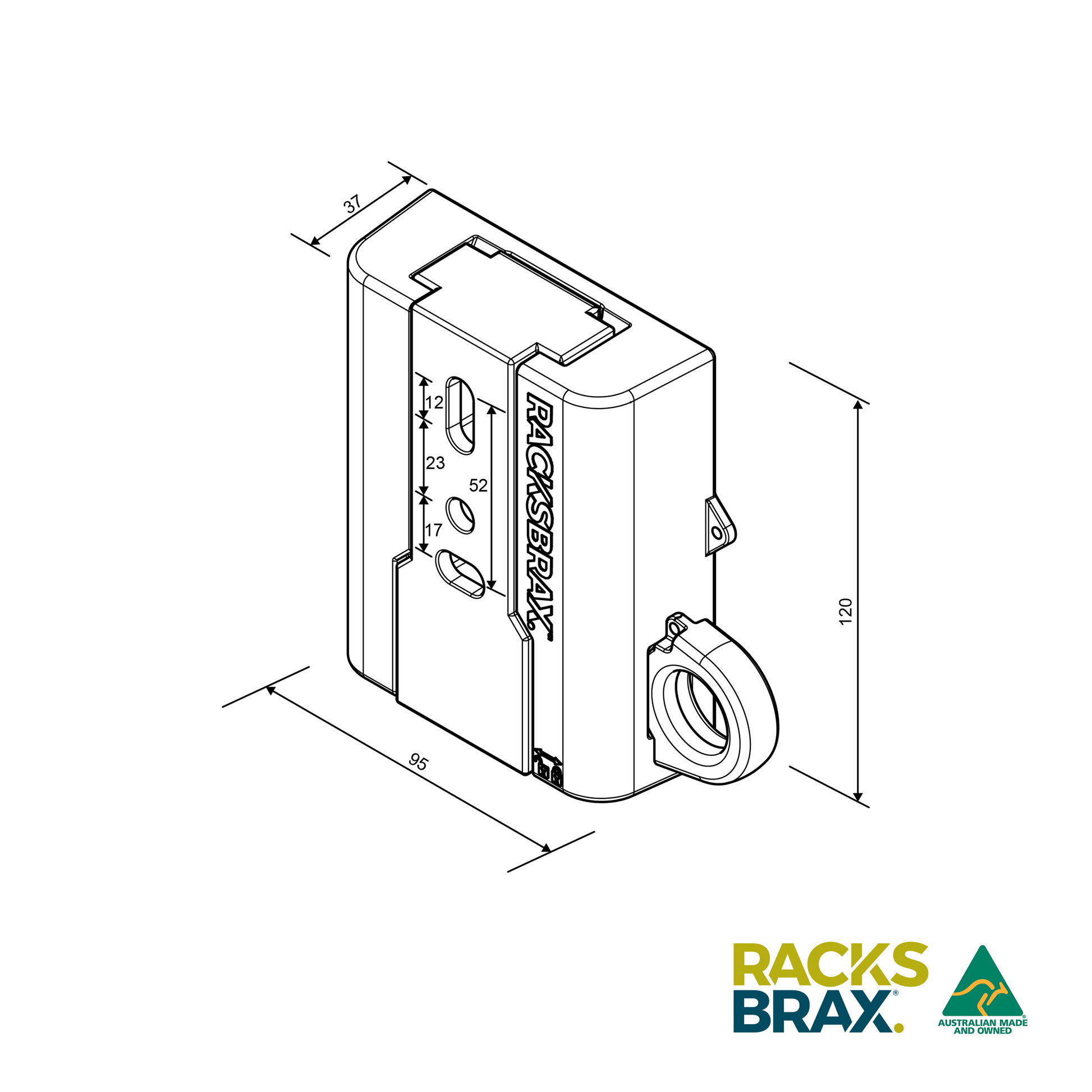

- pull-out awnings or accessories with spine track spacings between 40-52mm and either M6 or M8 fasteners (supplied in stainless steel) to attach these accessories to 2 mounting points or brackets
- some smaller wing-style awnings with the addition of an HD Awning Adaptor Plate
- awnings or accessories with a max. load of 40kg (i.e. 20kg x 2 mounting points or brackets)
- most shower tents, pull-out awnings and some wing awnings (see our Works With page to find your brand of awning or accessory).
If your awning or accessory does not appear in our chart, please feel free to reach out to the Team via our Contact page.
The HD Hitch Series 33 (DOUBLE) 8202 is ideal for:
(formally HD Hitch Standard (SUPA PEG MODEL) 8179)
- pull-out awnings or shower tents with spine track mount point spacings at 33mm centres and with M8 fasteners (supplied in stainless steel) to attach these accessories to 2 mounting points or brackets
- some smaller wing-style awnings with spine track mount point spacings at 33mm centres and with M8 fasteners to attach these accessories
- awnings or accessories with a max. load of 40kg (i.e. 20kg x 2 loading points or brackets)
The HD Hitch (8159, 8510, 8202) will also work with our entire RacksBrax HD Accessory range:

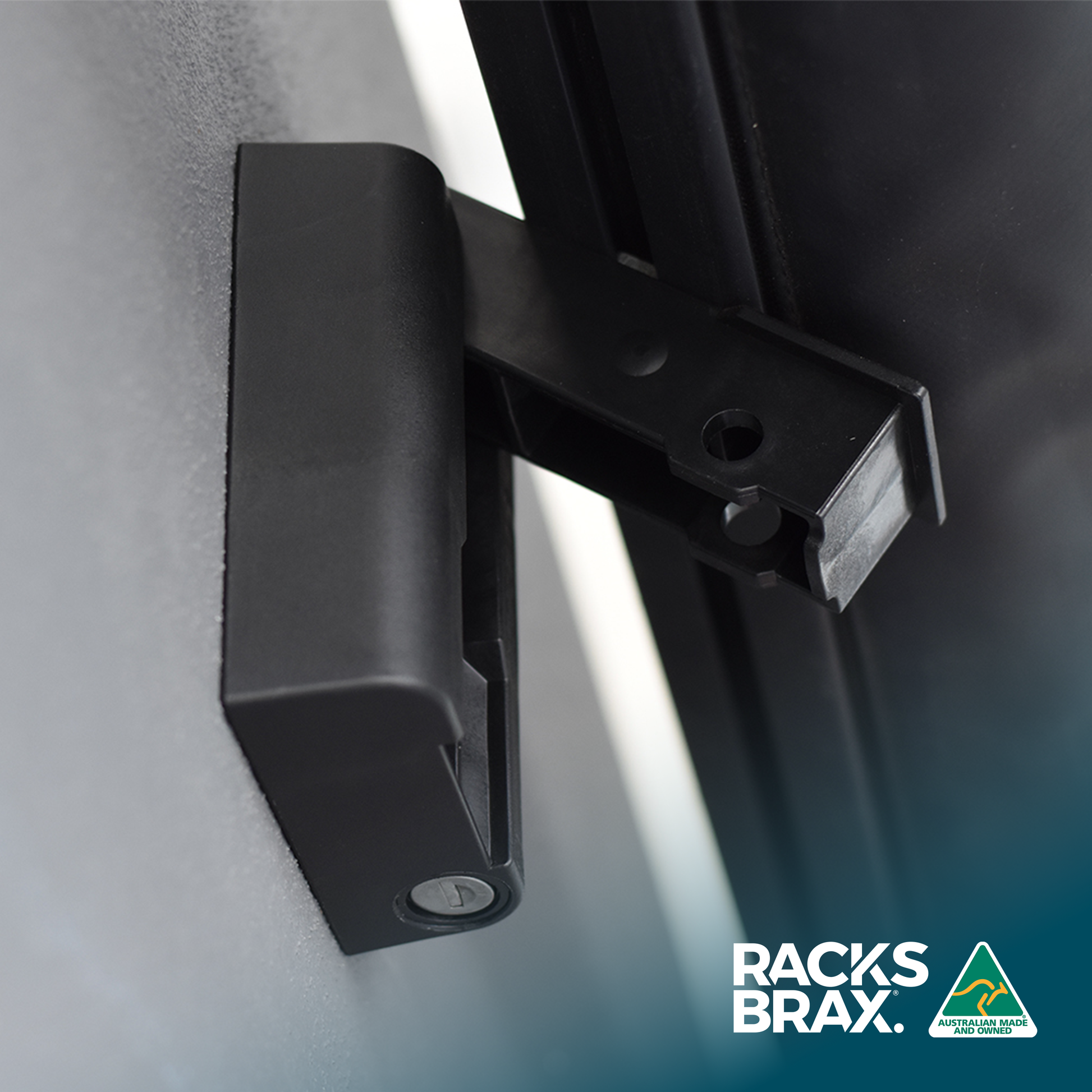

- The HD Wall Mount (8160) or HD Lockable Wall Mount (8161) includes one pair of quick release Bodies so that your roof rack accessory can be fixed to a garage wall, etc. when not in use.
- HD Accessory Plate (8174) and/or HD Accessory Bars (8173) for quickly removing recovery boards.
- HD Bracket range which connects your HD Hitch with most roof bar- and platform-style racks.

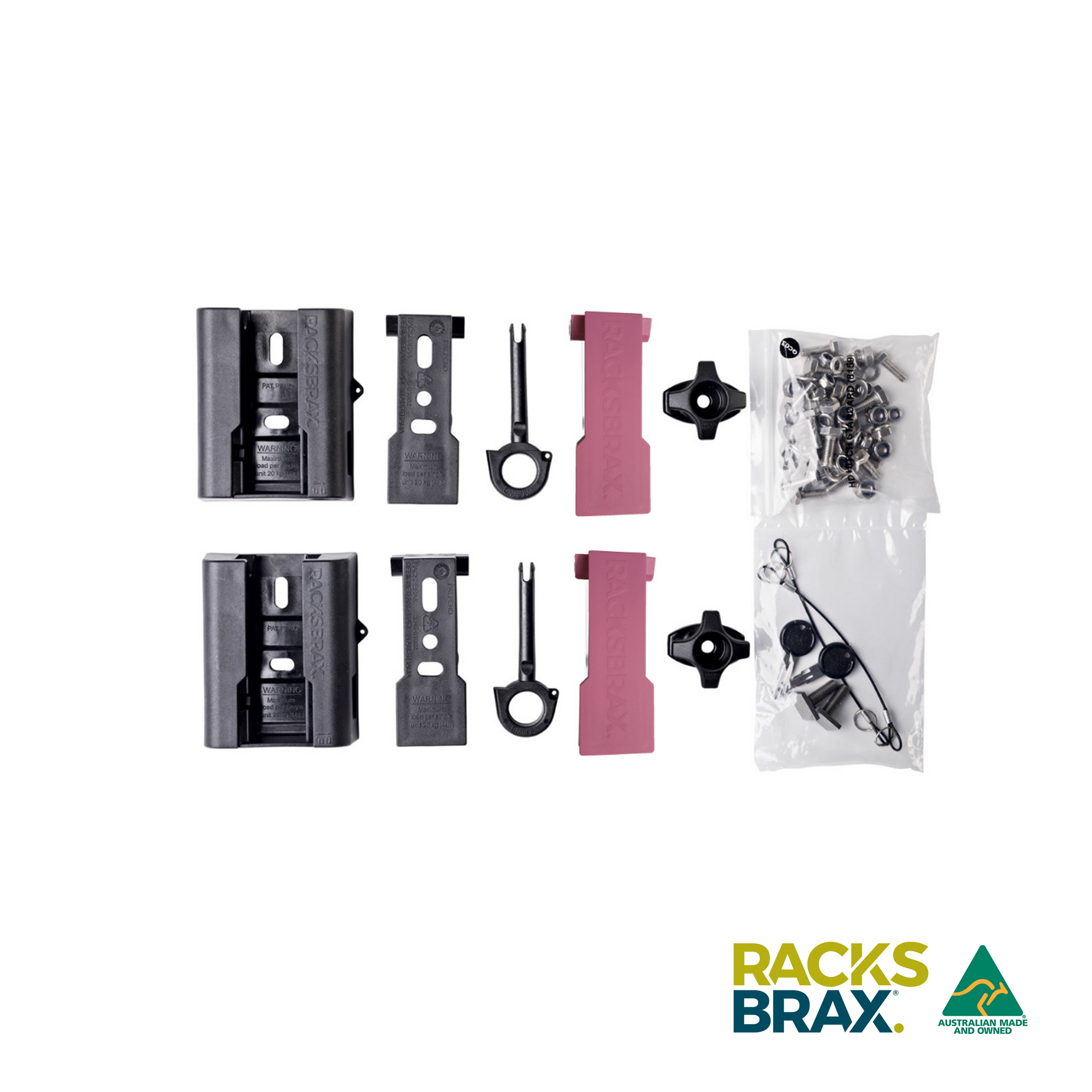

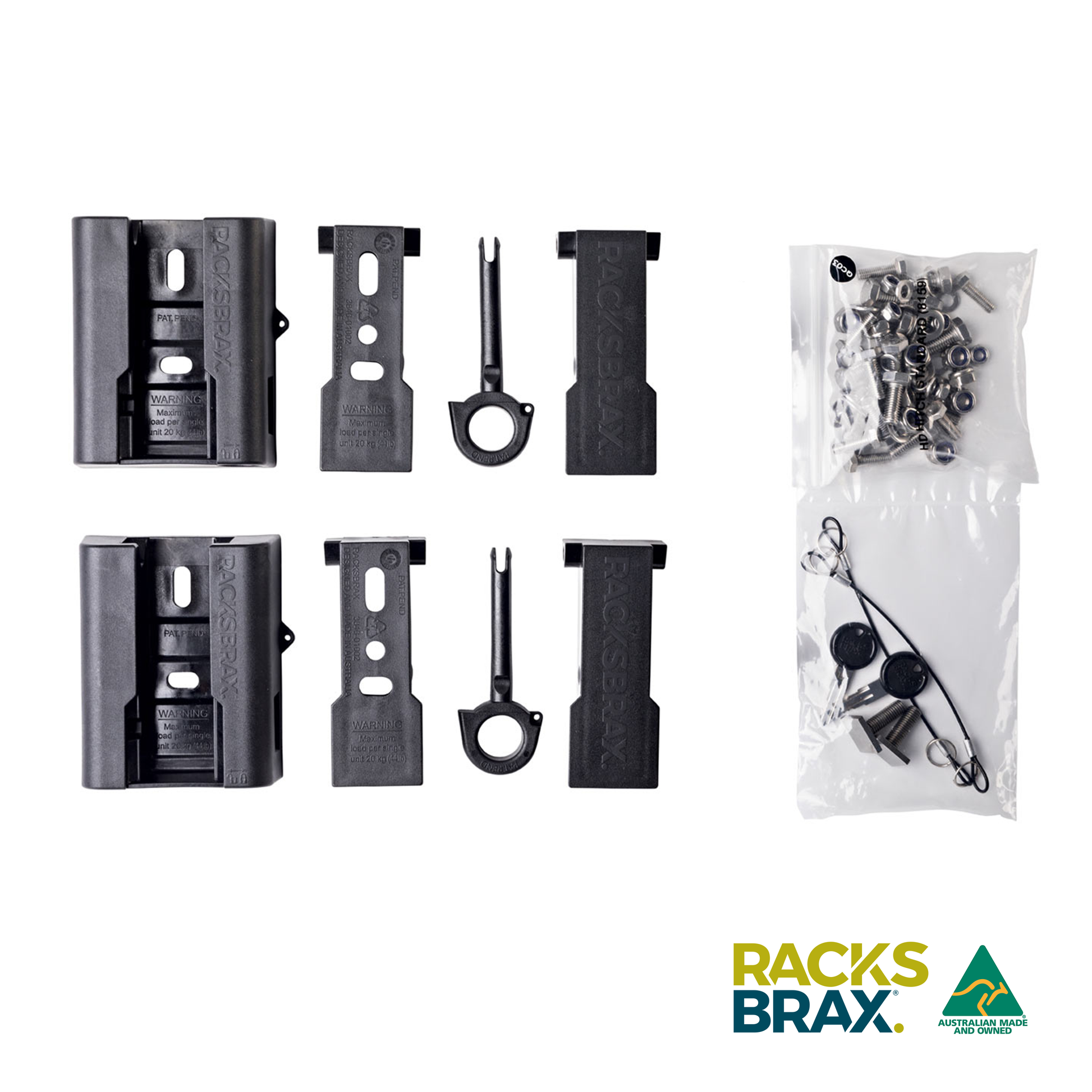

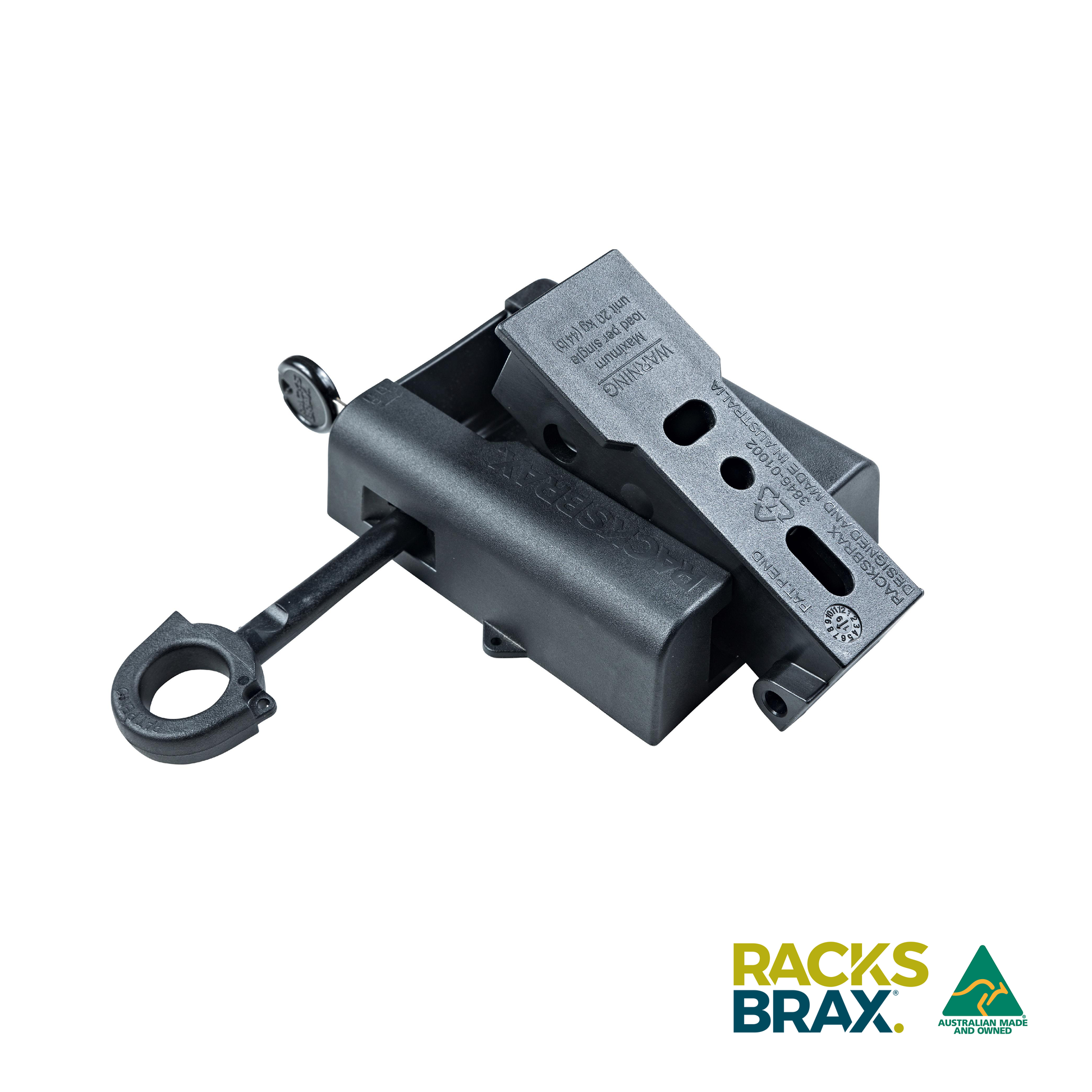

The HD Hitch Standard (8159 and 8510) and the HD Hitch Series 33 (DOUBLE) (8202) includes a set of 2 UV-stabilised, glass-reinforced nylon hitches with stainless steel fasteners to lock-on and take off roof rack accessories including pull-out awnings, shower tents, some wing awnings and conduit tubes. Roof racks and accessory brackets suited to roof racks are not included but see our HD Bracket Range.
Lost your instructions? Detailed instructions are available at "Instructions". Simply scroll down to...
Got 3 mounting points instead? Our HD Hitch (TRIPLE) 8182 or HD Hitch Series 33 (TRIPLE) 8203 has you covered!
NOTE: Awnings must be restrained in windy conditions, drained during rain and cleared during snow.
