Dobinsons Spring & Suspension
SKU:WA59-545K

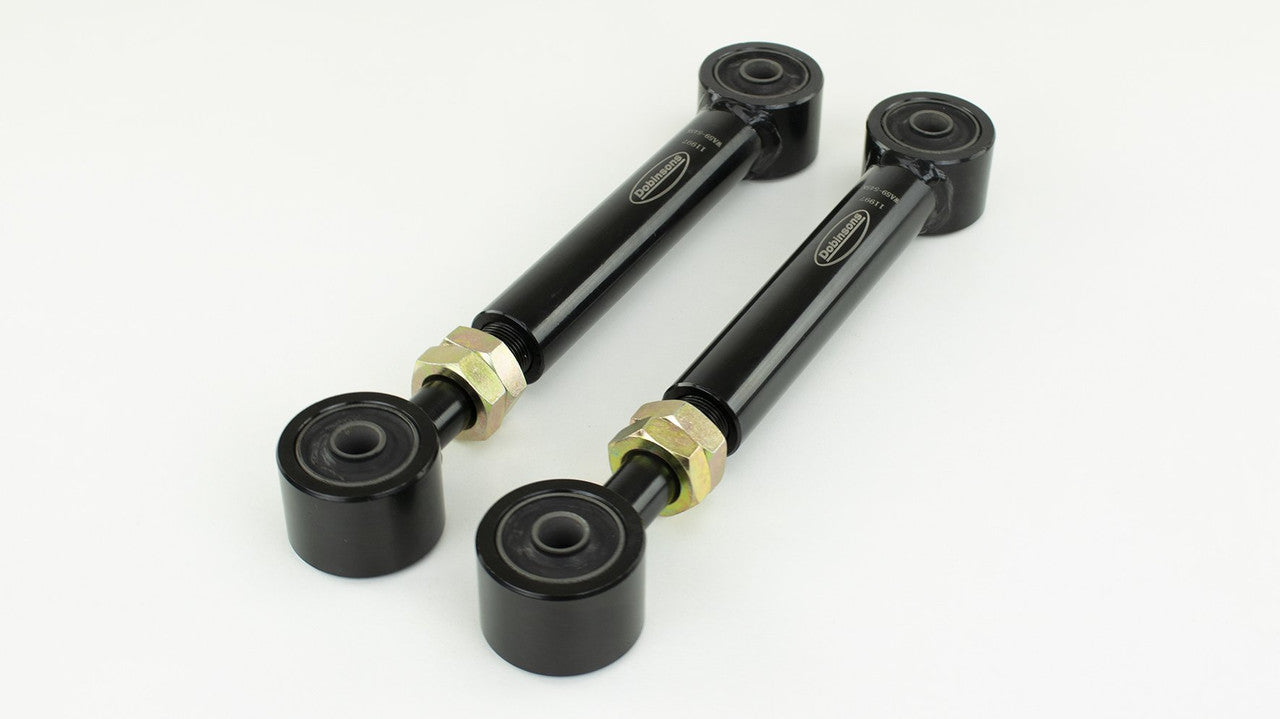

Dobinsons Rear Adjustable Tubular Steel Series Upper Trailing Arms (Pair) - Toyota Land Cruiser 80 Series & LX450
Dobinsons Rear Adjustable Tubular Steel Series Upper Trailing Arms (Pair) - Toyota Land Cruiser 80 Series & LX450
Low stock: 2 left
Couldn't load pickup availability
Adjustable Upper Trailing Arms
Suits all 80 Series Land Cruisers from 1990 to 1997
Comes with high quality rubber OE style bushings installed for maximum flexibility, and zero noise
Made from HSLA (High Strength Low Alloy) Steel, 40mm OD and 6mm wall thickness
Oversized adjusters and rod thickness for maximum strength and durability with double-nut locking feature
Zinc plated, then E-coated black, for the ultimate finish and protection
--
These are adjustable rear upper control arms, to be used on any vehicle lifted or not, up to 7" of lift. This kit comes with both side upper arms and also includes Rubber bushings pressed into the arms, as they are maintenance and noise-free. Rubber bushings allow for greater flex (travel). These adjustable arms will allow you to properly set your rear pinion angle due to adding a lift, while also adding strength over the stock arms. Suitable also for long travel rear suspension setups.
NOTE: The threaded end goes towards the frame end.
Instructions for use: Set initial length to the same as factory arms, then check pinion angle, then adjust at 1/2" increments until your pinion angle is set properly. Adding too much length could lead to driveline vibrations.
