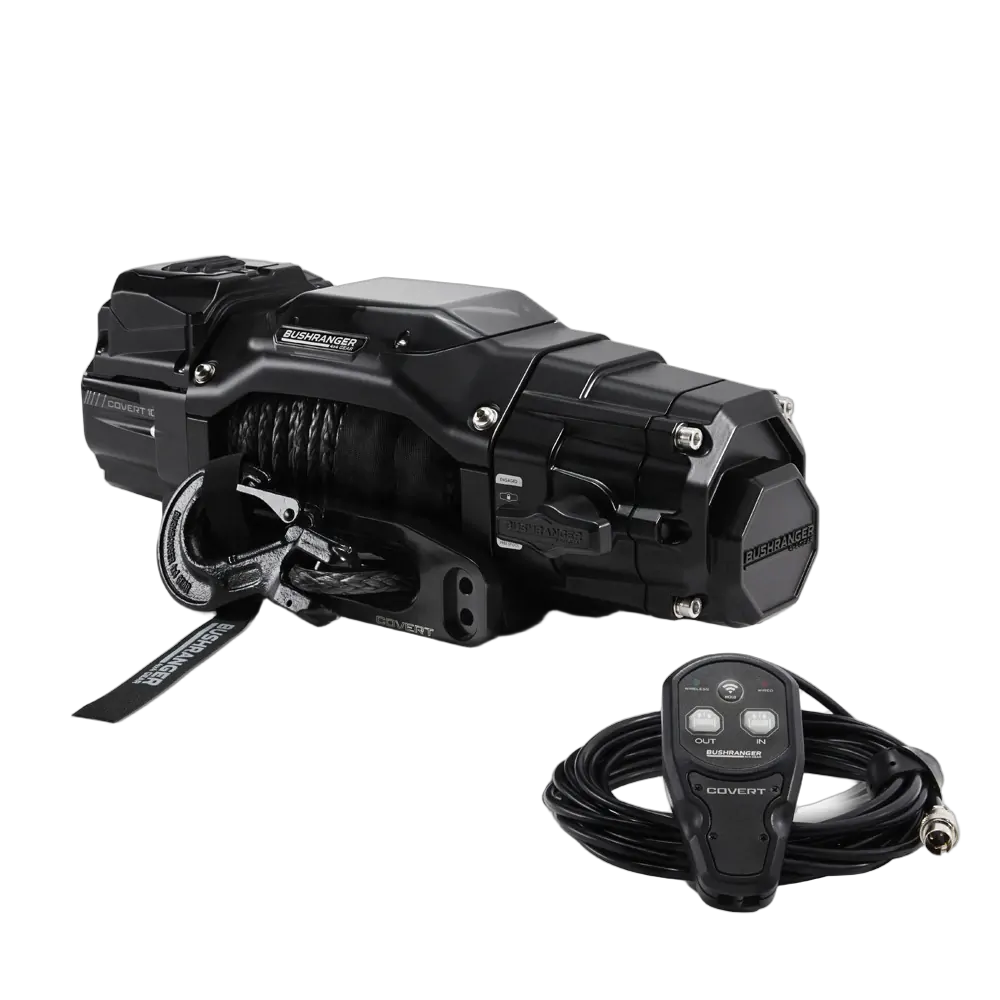

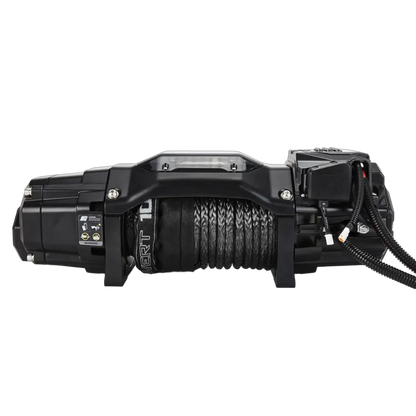

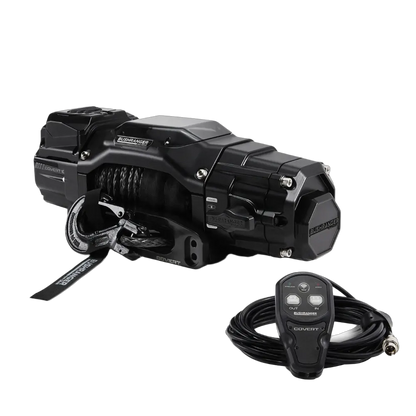

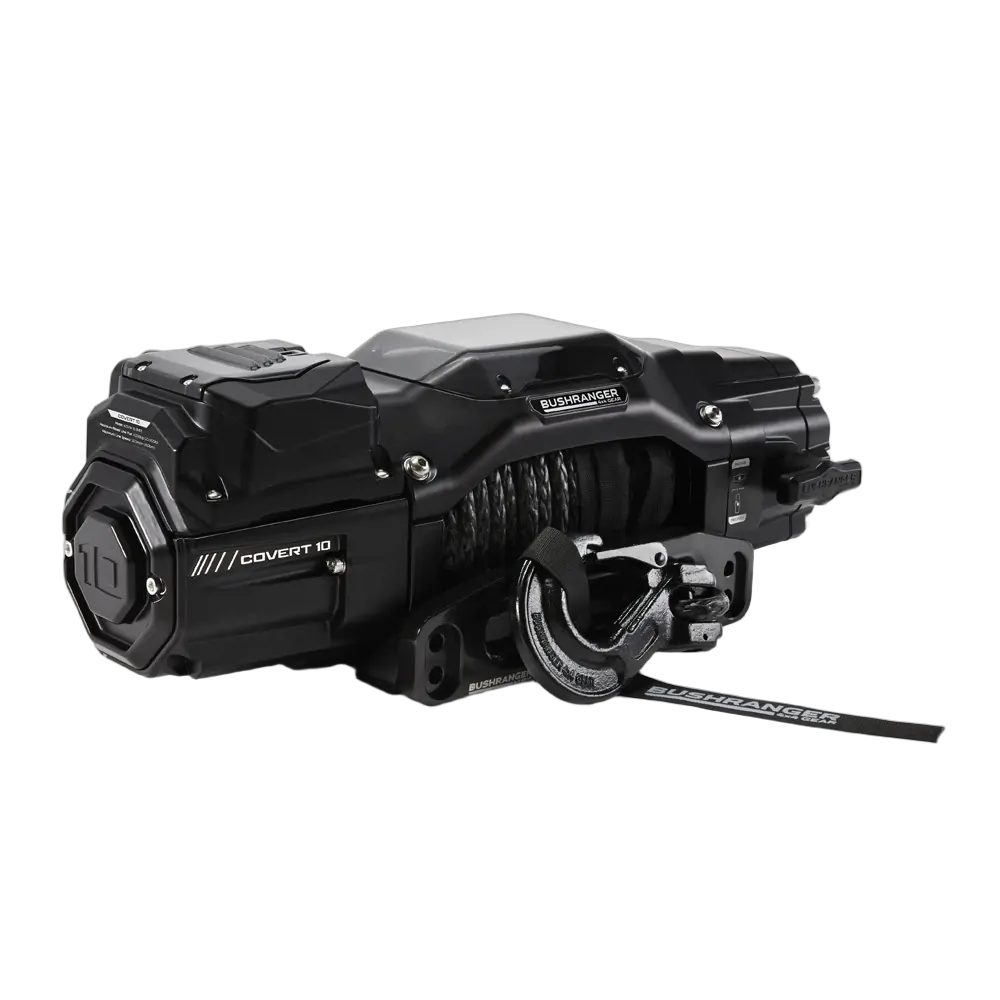

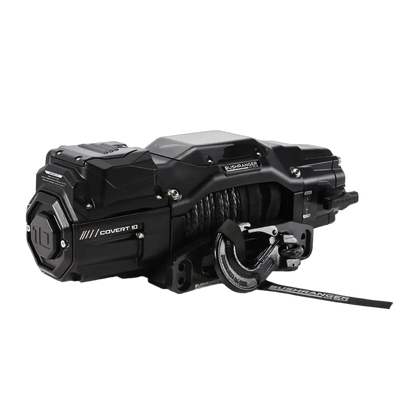

Bushranger Covert 10,000LB Winch with Synthetic Rope

Designed in Australia and built with top-tier components, the COVERT winch is engineered for maximum strength, resilience, and reliability in harsh environments. Its compact, synergistic design delivers fast line speeds with lower current draw, thanks to a finely tuned 5.3HP motor, 4-stage gearbox, and a bespoke built-in Albright Industries control unit.

This latest-generation integrated control system ensures seamless compatibility with a wider range of modern vehicle bull bars. By eliminating the need for a conventional control box, the COVERT winch offers a clean, unobtrusive fit that maintains airflow to cooling systems and avoids interference with vehicle sensors.

Features and benefits

Engineered & proven in Australia

High-quality components and rigorous testing ensure long-term durability in the toughest conditions.

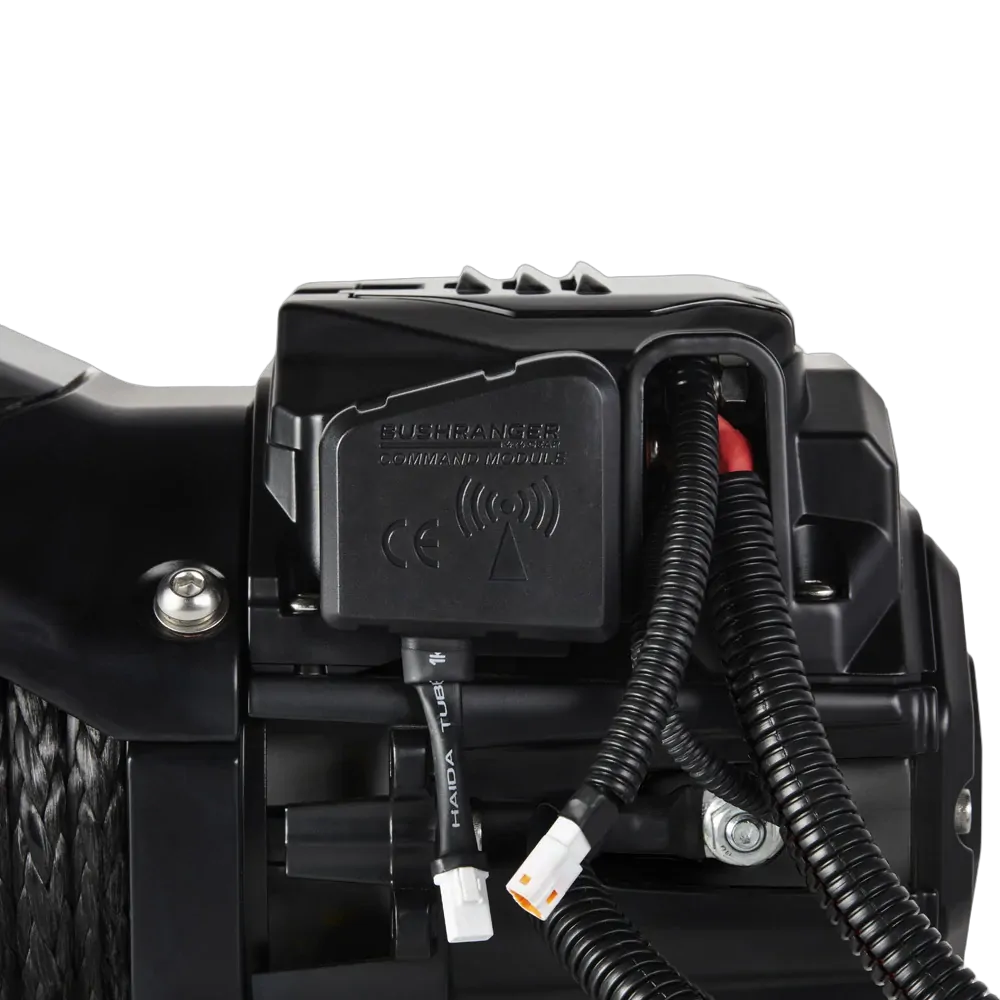

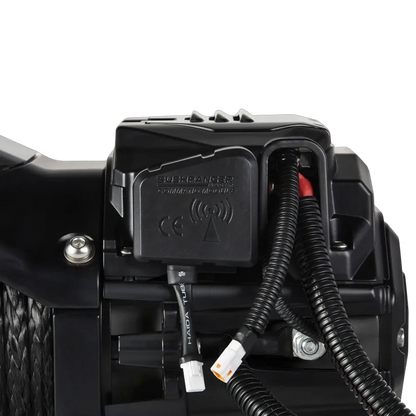

Built-in motor control unit

A direct-connect bespoke Albright contactor improves motor efficiency and removes the need for a standard control box.

Tuned 5.3HP 12V motor

The series-wound motor powers the 4-stage gearbox to deliver faster line speeds at lower current draw.

4-stage gearbox

Hardened steel gearing provides improved load distribution, greater strength, and long-lasting durability.

Zero drag braking system

The gearbox-mounted brake offers 100% load holding and supports powered unspooling under no load without damaging the winch.

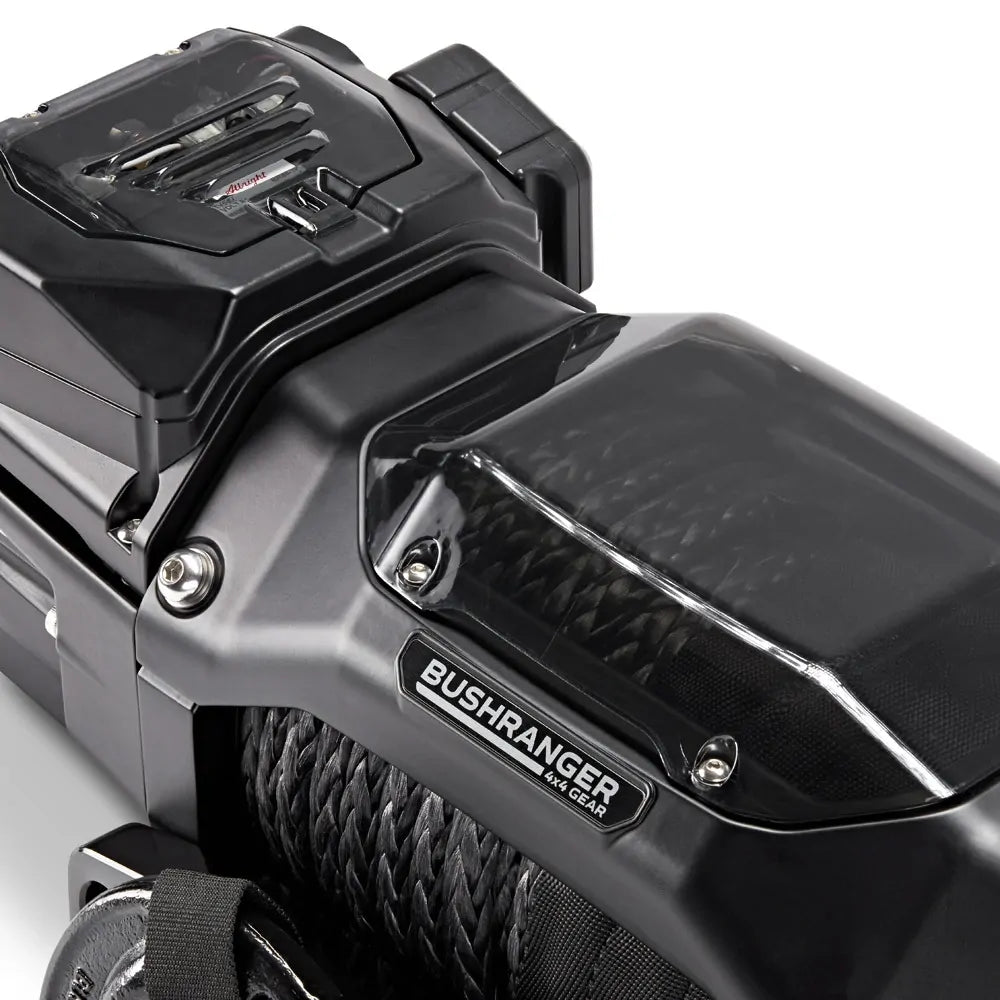

Robust construction

Lightweight aluminium alloy housings are structurally designed and finished with a durable pre-treated satin powder coat.

Quick & easy fitment

Multiple mounting options, pre-wiring, and preset clutch positions suit most modern bull bars.

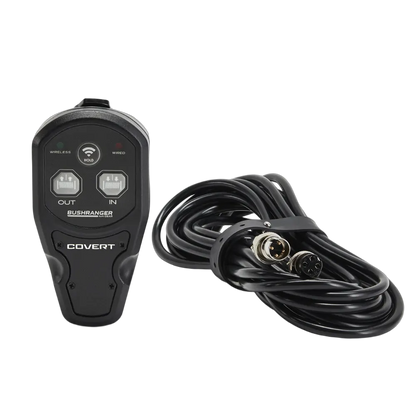

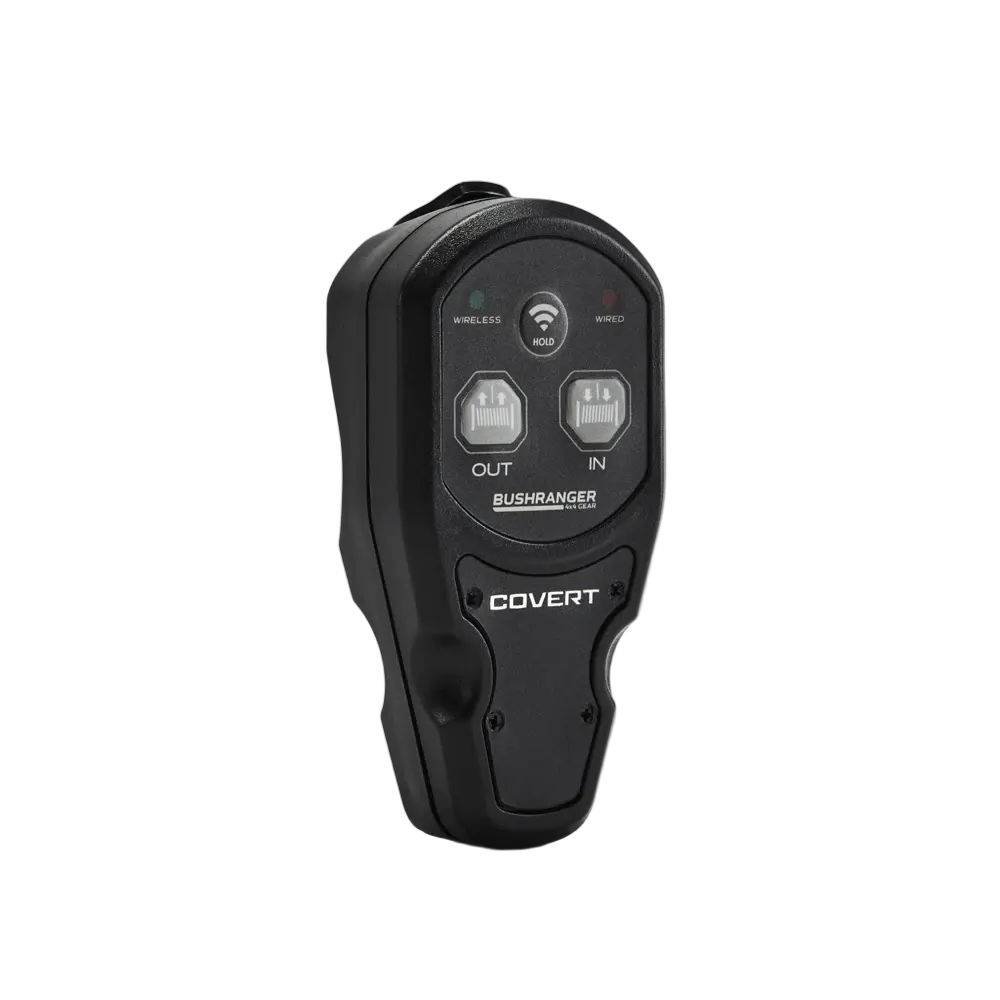

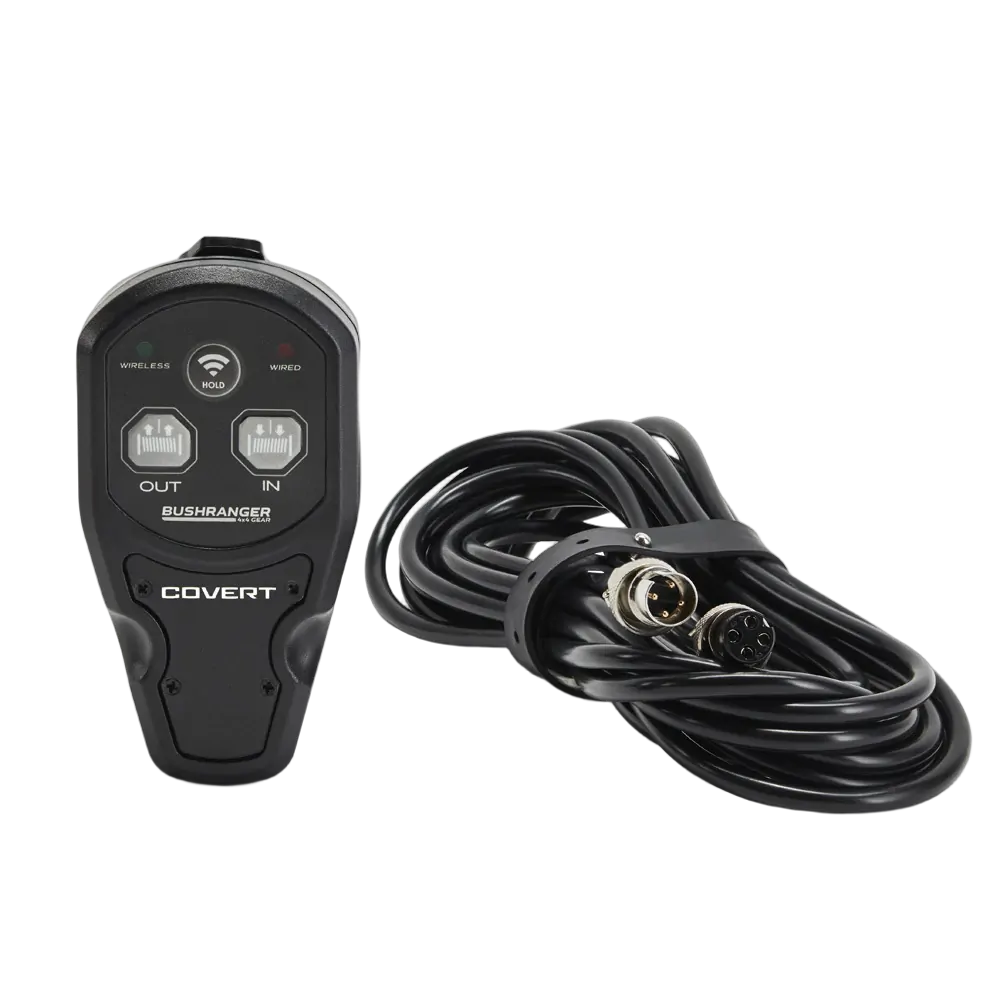

Dual connection remote

Compact controller with 30 m wireless range or a 5 m wired lead.

Power isolation switch

Includes a 500 A isolation switch with universal mounting bracket, stainless lanyard, and dust cover.

Kit includes

• 10,000 lb Bushranger COVERT Winch
• 28 m × 10 mm synthetic rope
• Dual connection remote with replaceable battery
• Aircraft-grade aluminium hawse fairlead

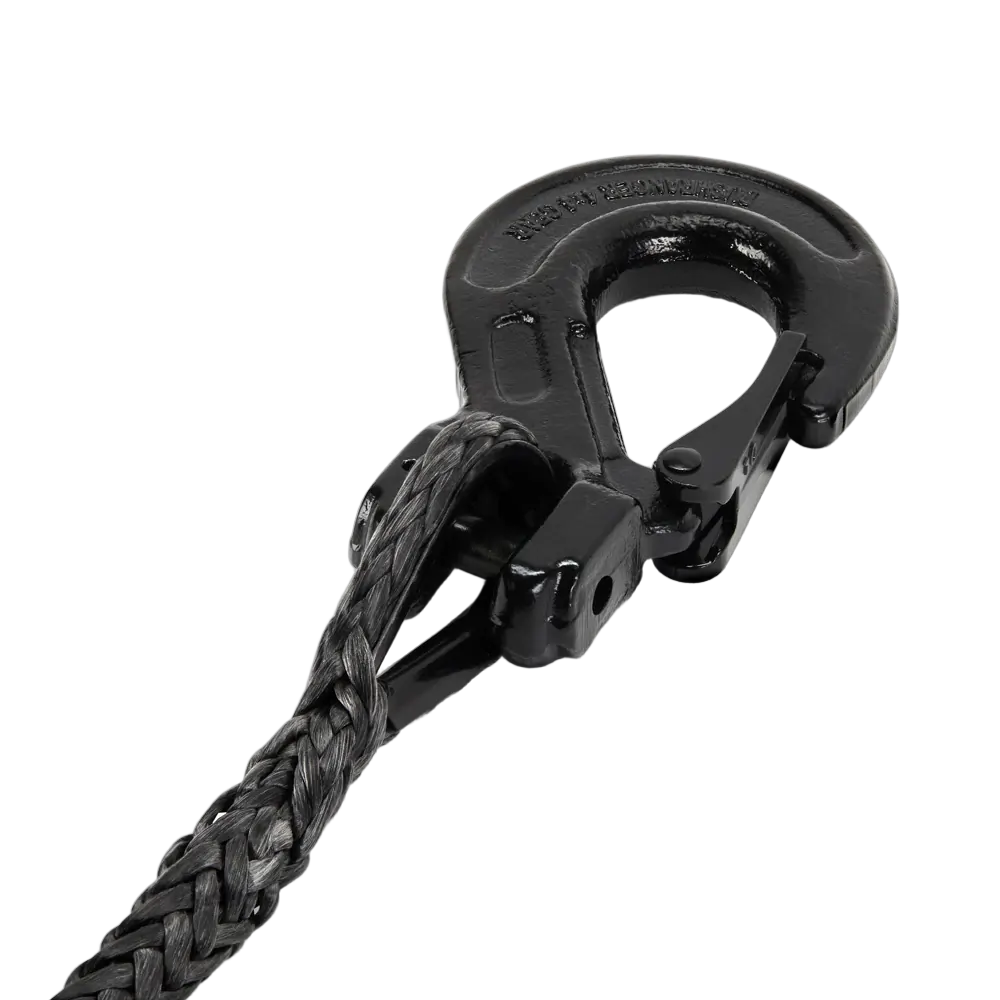

• Black forged hook with pull tag
• Main power isolation switch with universal mount
• Remotely mounted control plug with lead

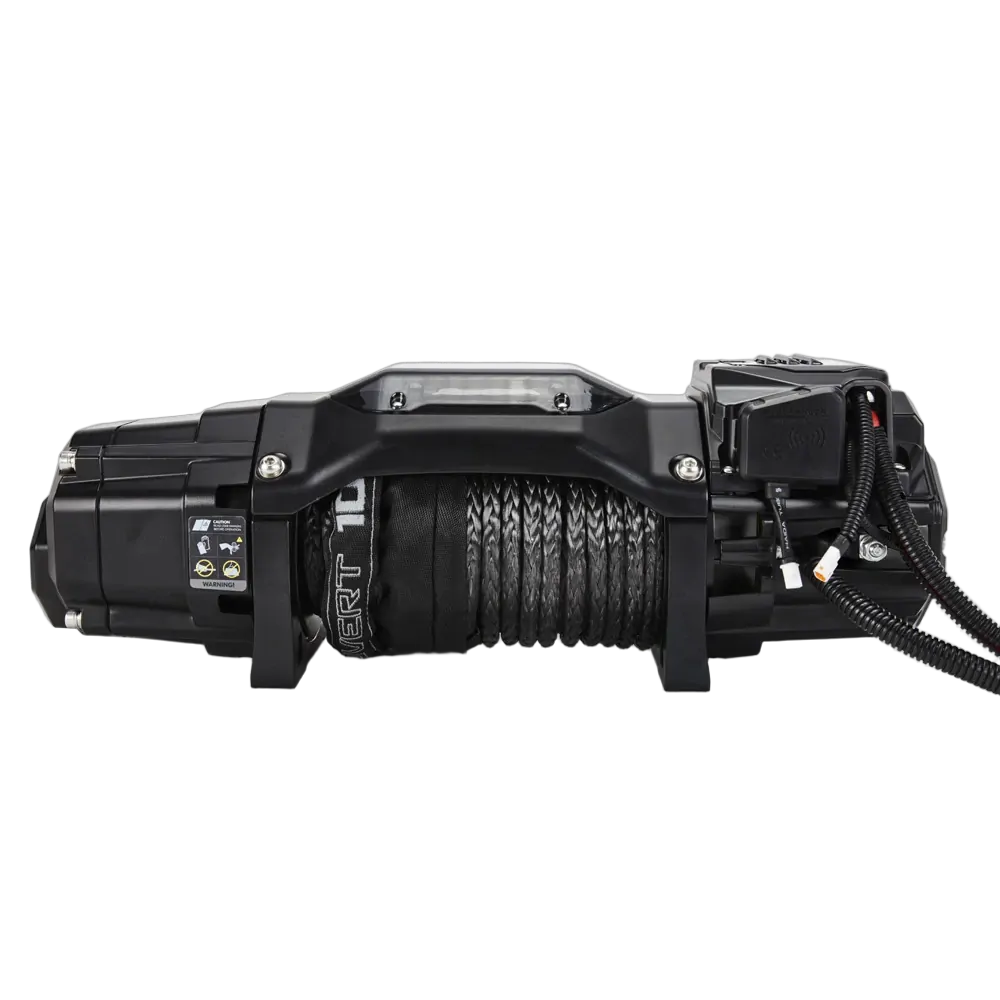

• Pre-installed heavy-gauge wiring with protective conduit
• Hi-tensile mounting hardware

Specs & performance

• Model: RWC100S
• Dimensions: 583 mm (L) × 171 mm (W) × 202 mm (H)
• Weight (fitted): 31.5 kg
• Rated line pull (1st layer): 10,000 lb (4,536 kg)
• Motor: 4.0 kW (5.3 HP)
• Remote control: Wireless 30 m range / Wired 5 m lead
• Electrical contactor: Bespoke Albright DC Contactor – 500 A
• Gearbox: 2-stage planetary & 2-stage spur gear
• Brake: 100% load-holding proportional friction brake (gearbox-mounted)

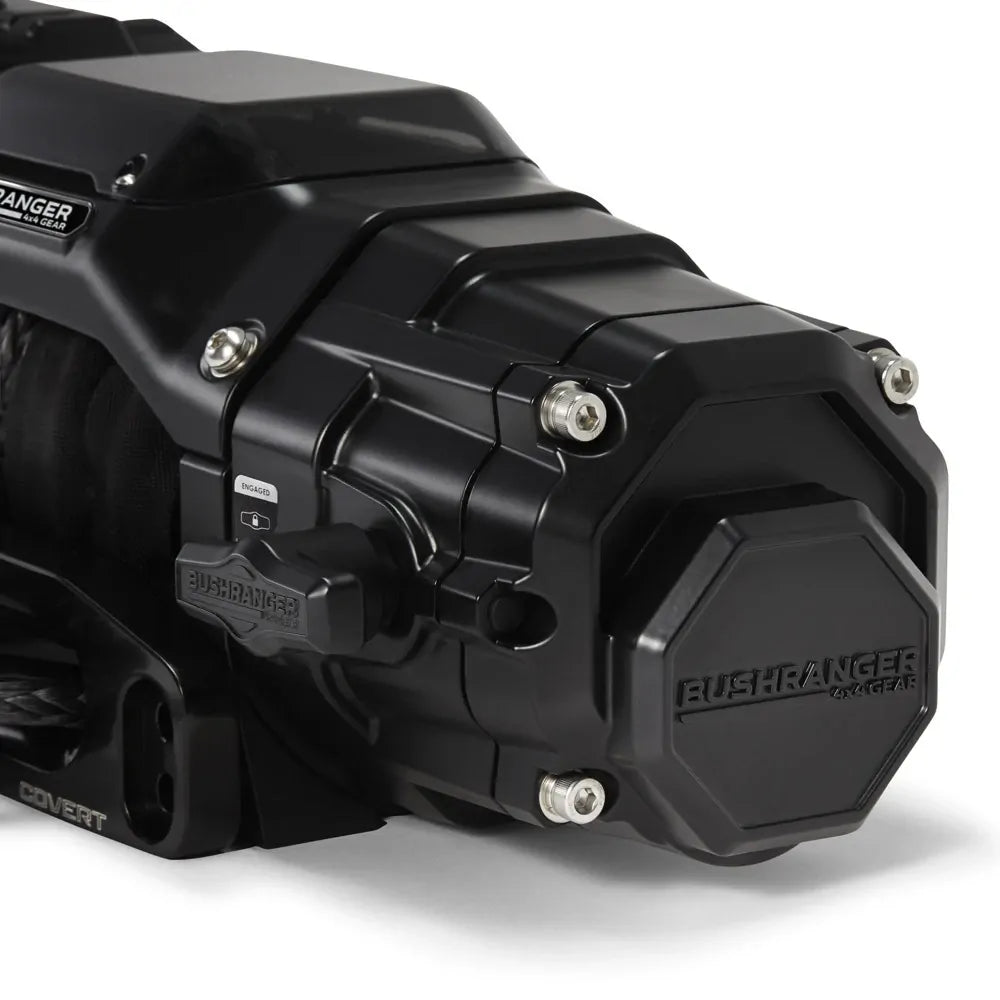

• Clutch: Rotating ring gear – lift & turn handle
• Rope: 10 mm × 28 m synthetic rope with protective sleeve
• Fairlead: Two-position aircraft-grade aluminium hawse fairlead
• Finish: Pre-treated black satin powder coat
• Waterproof ratings: IP68 motor & gearbox / IP66 remote
• Warranty: Limited lifetime warranty (7-year electrical)
• Certifications: CE
