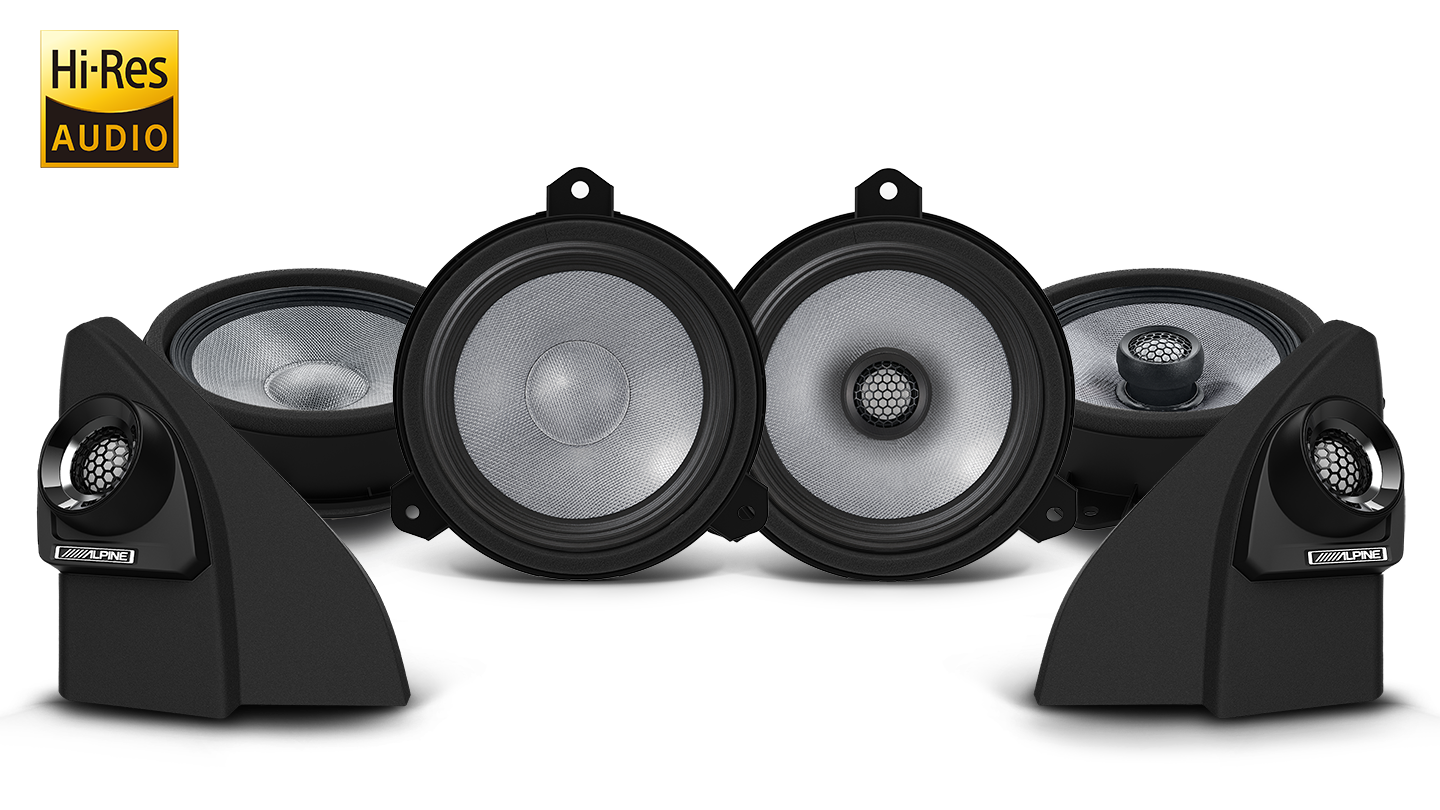

Alpine R2-Series 6.5" 2-Way Premium Speaker System Upgrade

Turn up the bass in your Toyota Hilux — the next Generation R-Series are born to be played loud with Alpine’s all-new R-Series ‘direct fit’ premium speaker upgrade. This R2-Series Front and Rear Premium Speaker System is suitable for Toyota Hilux AN120 (Build 08/15 >5/20) and AN130 (Build 06/20 > Onwards).

Equipped with Alpine’s exclusively designed tweeter housing, superior sound quality is achieved, all while your cabin space is enhanced with its striking appearance and premium finishes inclusive of a machine finished metal Alpine logo and contrasting black chrome accent. Alpine engineered and reborn from the ground up, the all-new R-Series speaker housings unite true Hi-Fi sound quality and ultra-bass performance with precise and direct replacement of the factory installed speakers. All parts are pre-assembled with ‘plug-n-play’ connections providing a straightforward, no-fuss installation with no need of any modifications, cutting of wires, nor soldering.

Perfect Integration

Alpine’s premium design ‘A Pillar’ direct-fit tweeter housing with a machine cut Alpine logo and an elegant black chrome bezel are all pre-assembled parts ready for direct installation to your Toyota Hilux.

Premium Design Tweeter Housing

Premium audio never looked so good.

Technical Specifications

Features

• Tweeter
  • Tweeter Type: 1” (2.5cm) Ring Radiator Tweeter
  • Voice Coil Type: Dual Gap for optimum linearity and clarity
  • Magnet Material: Neodymium Magnet
  • Swivel Application allowing the sound to be focused for the best in-car sound performance
• Woofer
  • Cone Material: Hybrid Multi Layer Cone
  • Motor Technology: Linear Drive Technology
  • Surround: HAMR Surround
  • Voice Coil Type: Dual Gap Voice Coil for optimum linearity and clarity
  • Magnet: Ultra High Density Neodymium Magnet
  • DX Ring: DX Ring
  • Wave Guide: Wave Guide
  • Mounting: Shallow Mounting Design
  • Mounting Adapters: Mounting Adapter Kit Included
  • Design: Bi-Amp Ready Design

Specifications

• General
  • Peak Power Handling: 300W
  • RMS Power Handling: 100W
  • Nominal Impedance: 4ohms
  • Frequency Response: 65Hz-40kHz
  • In-Line High Quality Crossover
  • 59mm Mounting Depth
  • Swivel Tweeters
  • Neodymium Magnet
  • Multi-layer Hybrid Cone
  • Dual Gap Voice Coil
  • All-New Design Circuit for Precision Response
• Dimensions
  • Woofer Diameter (mm): 165mm
  • Woofer Diameter (in): 6-1/2″
  • Woofer Mounting Diameter (mm): 176mm
  • Woofer Mounting Diameter (in): 6-15/16″
  • Woofer Mounting Depth (mm): 59mm
  • Woofer Mounting Depth (in): 2-3/8″
